LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

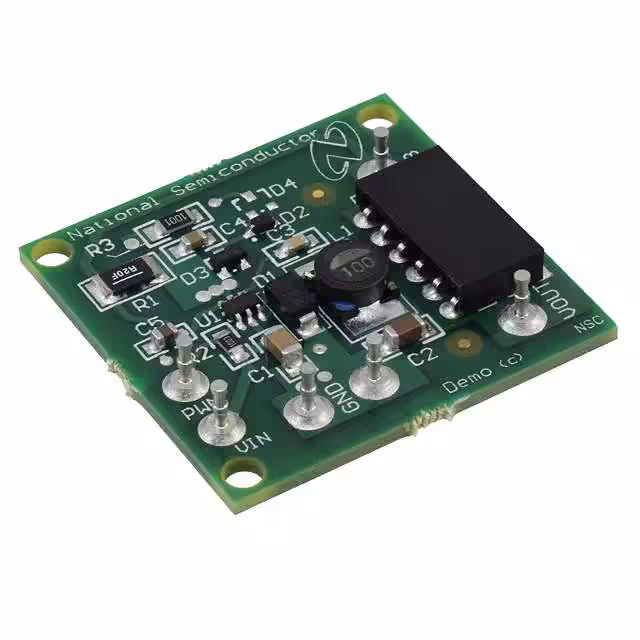

LM3405AEVALEVAL BOARD FOR LM3405A |
0 |
|
Datasheet | - | Box | Obsolete | 1A | 1 Non-Isolated Output | - | Dimmable | 3V ~ 15V | Board(s) | LM3405A |
|
PAM2805EV1EVAL BOARD FOR PAM2805 |
0 |
|
Datasheet | - | Box | Obsolete | 750mA | 1 Non-Isolated Output | - | Dimmable | - | Board(s) | PAM2805 |
|

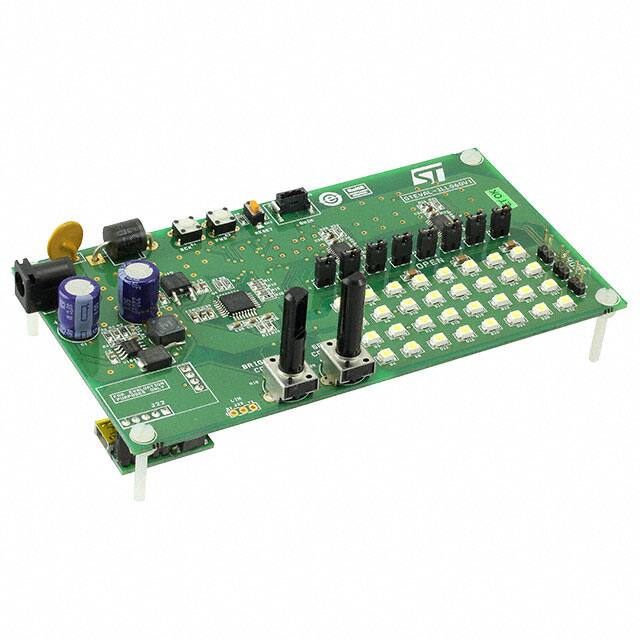

STEVAL-ILL060V1EVAL BOARD FOR A5974D |
2 |
|
Datasheet | - | Box | Obsolete | - | 32 Non-Isolated Outputs | - | Dimmable | 6V ~ 24V | Board(s) | A5974D, STAP16DPPS05, STM8A |
|

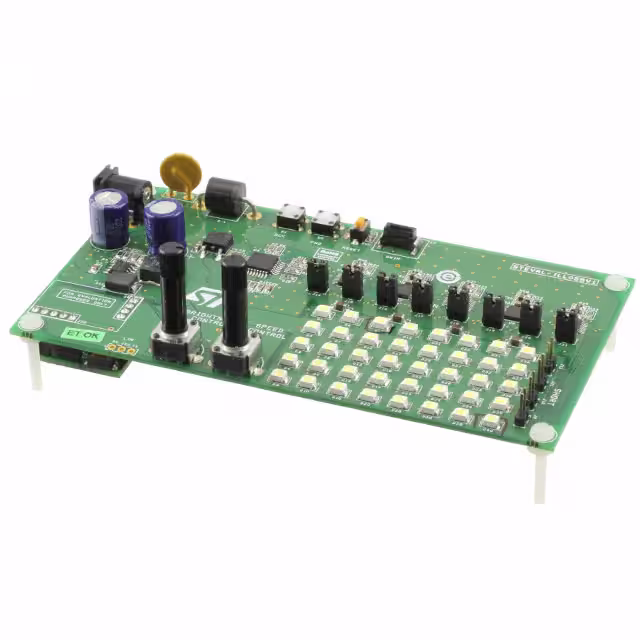

STEVAL-ILL058V1EVAL BOARD FOR A5974D STAP08DP05 |
1 |
|
Datasheet | - | Box | Obsolete | - | 40 Non-Isolated Outputs | - | - | 6V ~ 24V | Board(s) | A5974D, STAP08DP05, STM8A |
|
TPS92561EVM-001EVAL BOARD FOR TPS92561 |
0 |
|
Datasheet | - | Box | Obsolete | 45mA | 1 Non-Isolated Output | 250V | Dimmable | 90 ~ 135 VAC | Board(s) | TPS92561 |
|
STEVAL-TLL010V1EVAL BOARD FOR STLA02 |
0 |
|
Datasheet | - | Bulk | Obsolete | - | 1 Non-Isolated Output | - | - | - | Board(s) | STLA02 |
|
STEVAL-ILL045V1EVAL BOARD FOR HVLED815PF |
0 |
|
Datasheet | - | Bulk | Active | - | 1 Non-Isolated Output | - | Dimmable | 90 ~ 132 VAC | Board(s) | HVLED815PF |
|
LM3519MKEVEVAL BOARD FOR LM3519 |
0 |
|
Datasheet | - | Box | Obsolete | 20mA | 1 Non-Isolated Output | - | Dimmable | 2.7V ~ 5.5V | Board(s) | LM3519 |
|
TPS92311A19230VEVMEVAL BOARD FOR TPS92311 |
0 |
|
Datasheet | - | Box | Obsolete | 350mA | 1 Isolated Output | - | - | 180 ~ 264 VAC | Board(s) | TPS92311 |
|
|
STEVAL-ILL002V1EVAL BOARD FOR STP08CDC596 |
0 |
|
- |
- | Bulk | Obsolete | - | 8 Non-Isolated Outputs | - | - | 7V ~ 32V | Board(s) | STP08CDC596 |
|
TPS61061EVM-091EVAL BOARD FOR TPS61061 |
0 |
|
Datasheet | - | Bulk | Obsolete | 40mA | 1 Non-Isolated Output | - | Dimmable | 2.7V ~ 6V | Board(s) | TPS61061 |
|
TPS61052EVM-269EVAL BOARD FOR TPS61052 |
0 |
|
Datasheet | - | Box | Obsolete | 1.2A | 1 Non-Isolated Output | - | Dimmable | 2.5V ~ 6V | Board(s) | TPS61052 |
|
TPS54160EVM-535EVAL BOARD FOR TPS54160 |
0 |
|
- |
SWIFT™, Eco-Mode™ | Bulk | Obsolete | 675mA | 1 Non-Isolated Output | 14.8V | - | 18V ~ 30V | Board(s) | TPS54160 |
|
|
ISL6745LEVAL2ZEVAL BOARD FOR ISL6745A |
0 |
|
Datasheet | - | Box | Active | 300mA | 1 Non-Isolated Output | - | Dimmable | 80 ~ 140 VAC | Board(s) | ISL6745A |
|
|
ISL6745UEVAL2ZEVAL BOARD FOR ISL6745A |
0 |
|
Datasheet | - | Box | Active | 300mA | 1 Non-Isolated Output | - | Dimmable | 85 ~ 275 VAC | Board(s) | ISL6745A |
|
STEVAL-ILL014V1EVAL BOARD FOR STCS1 |
0 |
|
Datasheet | - | Bulk | Obsolete | 1.5A | 1 Non-Isolated Output | - | Dimmable | 4.5V ~ 40V | Board(s) | STCS1 |
|
|
AL8400EV1EVAL BOARD FOR AL8400 |
0 |
|
Datasheet | - | Box | Active | 150mA | 1 Non-Isolated Output | - | - | 4V ~ 18V | Board(s) | AL8400 |
|
|
MCP1650DM-LED1EVAL BOARD FOR MCP1651 |
0 |
|
Datasheet | - | Bulk | Obsolete | - | 1 Non-Isolated Output | - | Dimmable | 2V ~ 4.5V | Board(s) | MCP1651 |
|
AL5812EV3EVAL BOARD FOR AL5812 |
1 |
|
Datasheet | - | Box | Active | 150mA | 1 Non-Isolated Output | 1V ~ 60V | - | 3.5V ~ 60V | Board(s) | AL5812 |
|
STEVAL-LLL005V1EVAL BOARD FOR STP16CPC26 |
3 |
|
Datasheet | - | Bulk | Active | - | 16 Non-Isolated Outputs | - | - | - | Board(s) | STP16CPC26 |
