LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AL8807EV1EVAL BOARD FOR AL8807 |
1 |
|
- |
- | Box | Active | 1A | 1 Non-Isolated Output | - | Dimmable | 6V ~ 36V | Board(s) | AL8807 |
|
STEVAL-ILL017V1EVAL BOARD FOR VIPER17 |
5 |
|
Datasheet | VIPer™ plus | Bulk | Obsolete | 500mA | 1 Non-Isolated Output | 7V | - | 176 ~ 264 VAC | Board(s) | VIPer17 |
|
STEVAL-ILL002V3EVAL BOARD FOR STP08DP05 |
0 |
|
Datasheet | - | Bulk | Obsolete | 100mA | 8 Non-Isolated Outputs | 20V | - | 7V ~ 32V | Board(s) | STP08DP05 |
|
STEVAL-ILL026V1EVAL BOARD FOR VIPER22A-E |
0 |
|
Datasheet | VIPER™ | Bulk | Not For New Designs | 350mA | 1 Non-Isolated Output | 10V | - | 90 ~ 265 VAC | Board(s) | VIPer22A-E |
|
STEVAL-ILL035V2EVAL BOARD FOR LED7708 |
0 |
|
Datasheet | - | Box | Active | - | - | - | Dimmable | 4.5V ~ 36V | Board(s) | LED7708 |
|
AL8807EV2EVAL BOARD FOR AL8807 |
0 |
|
- |
- | Box | Not For New Designs | 1A | 1 Non-Isolated Output | - | Dimmable | 6V ~ 36V | Board(s) | AL8807 |
|
AL1698EV1EVAL BOARD FOR AL1698 |
0 |
|
Datasheet | - | Box | Active | 100mA | 1 Non-Isolated Output | 81V | Dimmable | 198 ~ 264 VAC | Board(s) | AL1698 |
|
|
FEBFL7733A-L53U021A-GEVBEVAL BOARD FOR FL7733A |
0 |
|
Datasheet | - | Box | Obsolete | 300mA | 1 Non-Isolated Output | 70V | - | 90 ~ 277 VAC | Board(s) | FL7733A |
|
EVALLED-ICL8002G-B1EVAL BOARD FOR ICL8002G |
0 |
|
Datasheet | - | Box | Obsolete | 300mA | 1 Isolated Output | 36V ~ 42V | Dimmable | 196 ~ 265 VAC | Board(s) | ICL8002G |
|
AL8807EV4EVAL BOARD FOR AL8807 |
0 |
|
- |
- | Box | Not For New Designs | 1A | 1 Non-Isolated Output | - | Dimmable | 6V ~ 36V | Board(s) | AL8807 |
|
STEVAL-ILL001V1EVAL BOARD FOR VIPER22A-E |
0 |
|
Datasheet | - | Box | Obsolete | 350mA | 1 Isolated Output | 32V | Dimmable | 185 ~ 265 VAC | Board(s) | VIPer22A-E |
|
STEVAL-ILL030V1EVAL BOARD FOR STM32F103C6 |
0 |
|
Datasheet | - | Bulk | Obsolete | - | - | - | Dimmable | 5V | Board(s) | STM32F103C6, STCS1A |
|

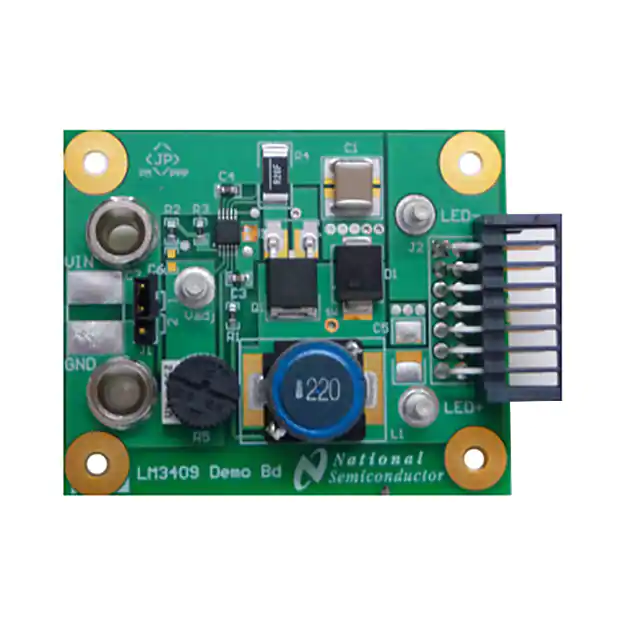

LM3409EVALEVAL BOARD FOR LM3409 |
0 |
|
Datasheet | - | Box | Obsolete | 1A | 1 Non-Isolated Output | 15V | Dimmable | 6V ~ 42V | Board(s) | LM3409 |
|
AL6562EV1EVAL BOARD FOR AL6562 |
0 |
|
- |
- | Box | Active | - | 1 Non-Isolated Output | - | - | 10.3V ~ 22V | Board(s) | AL6562 |
|

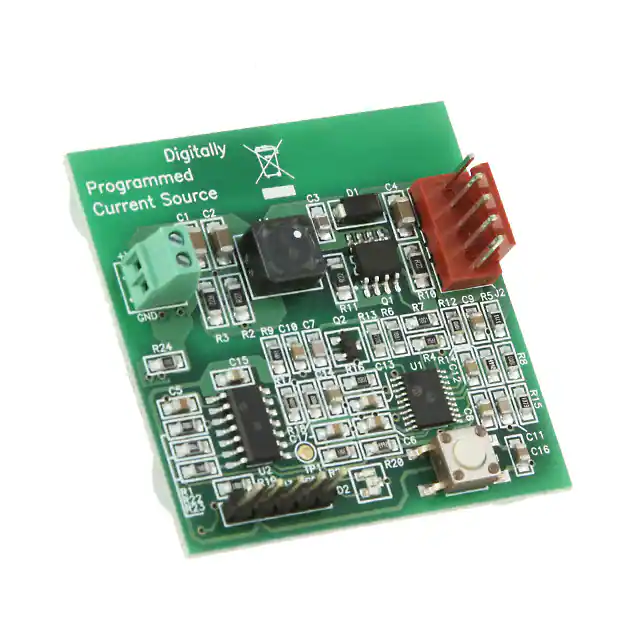

MCP1631RD-DCPC1EVAL BOARD FOR MCP1631HV |
0 |
|
Datasheet | - | Bulk | Active | 700mA | 1 Non-Isolated Output | - | - | 3.5V ~ 16V | Board(s) | MCP1631HV, PIC16F616 |
|
|
OM13269,598EVAL BOARD FOR PCA9632 |
0 |
|
Datasheet | - | Bulk | Active | - | 4 Non-Isolated Outputs | 5.5V | Dimmable | 2.3V ~ 5.5V | Board(s) | PCA9632 |
|
EVLVIP27-7WLEDEVAL BOARD FOR VIPER27 |
0 |
|
Datasheet | VIPer™ plus | Box | Obsolete | - | - | - | - | - | Board(s) | VIPer27 |
|
|
LM5022LEDEVALEVAL BOARD FOR LM5022 |
0 |
|
Datasheet | - | Box | Obsolete | 1A | 1 Non-Isolated Output | 40V | Dimmable | 10V ~ 14V | Board(s) | LM5022 |
|

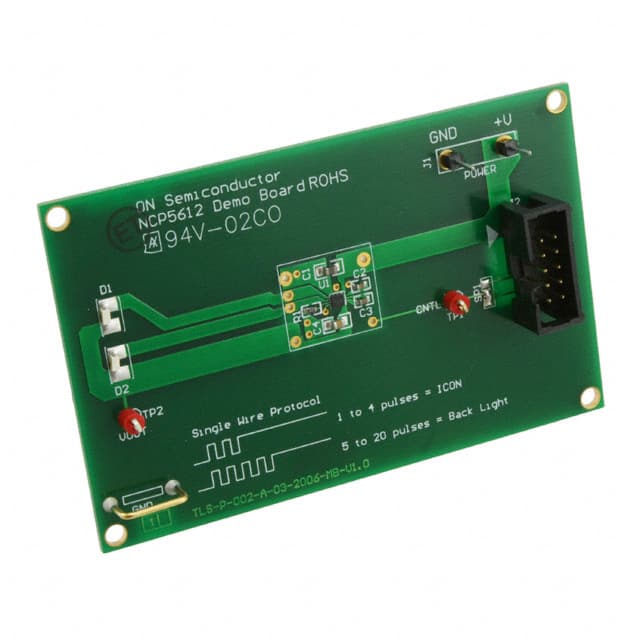

NCP5612GEVBEVAL BOARD FOR NCP5612 |
0 |
|
Datasheet | - | Bulk | Active | 60mA | 2 Non-Isolated Outputs | 4.8V ~ 5.7V | - | 3.6V | Board(s) | NCP5612 |
|

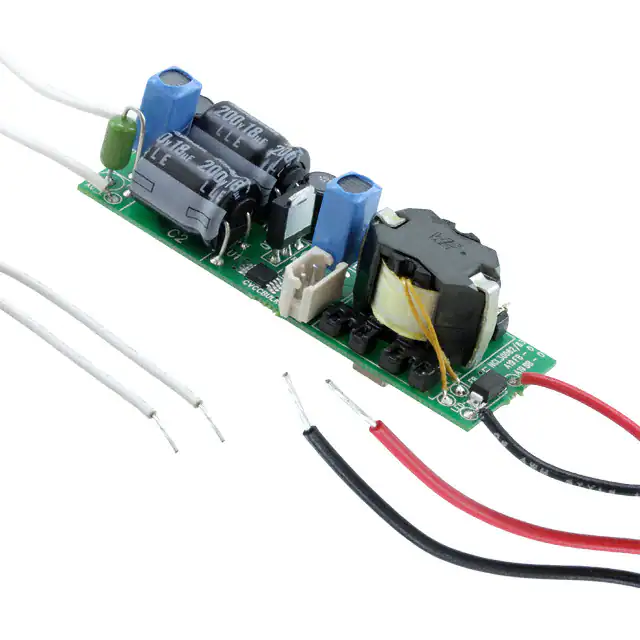

NCL30082FLYGEVBEVAL BOARD FOR NCL30082 |
0 |
|
Datasheet | - | Bulk | Obsolete | 500mA | 1 Isolated Output | 14V ~ 17V | Dimmable | 100 ~ 265 VAC | Board(s) | NCL30082 |
