LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EV-L99LDLH32EVAL BOARD FOR L99LDLH32 |
0 |
|
- |
- | Bulk | Active | 15mA | 32 Non-Isolated Outputs | 35V | Dimmable | 5.5V ~ 40V | Board(s) | L99LDLH32 |
|
|
EVLHVLED815W10FEVAL BOARD FOR HVLED815PF |
0 |
|
Datasheet | - | Bulk | Active | 455mA | 1 Isolated Output | 22V | - | 88 ~ 265 VAC | Board(s) | HVLED815PF |
|
|
EVLHVLED815W8CVEVAL BOARD FOR HVLED815PF |
0 |
|
Datasheet | - | Bulk | Active | 310mA | 1 Isolated Output | 25V | - | 200 ~ 265 VAC | Board(s) | HVLED815PF |
|
|
EVLHVLED815W10AEVAL BOARD FOR HVLED815PF |
0 |
|
Datasheet | - | Bulk | Active | - | 1 Non-Isolated Output | - | - | 85 ~ 265 VAC | Board(s) | HVLED815PF |
|
STEVAL-ILL085V1EVAL BOARD FOR HVLED001A |
1 |
|
Datasheet | - | Bulk | Obsolete | 700mA | 1 Non-Isolated Output | 60V ~ 105V | Dimmable | 90 ~ 300 VAC | Board(s) | HVLED001A |
|

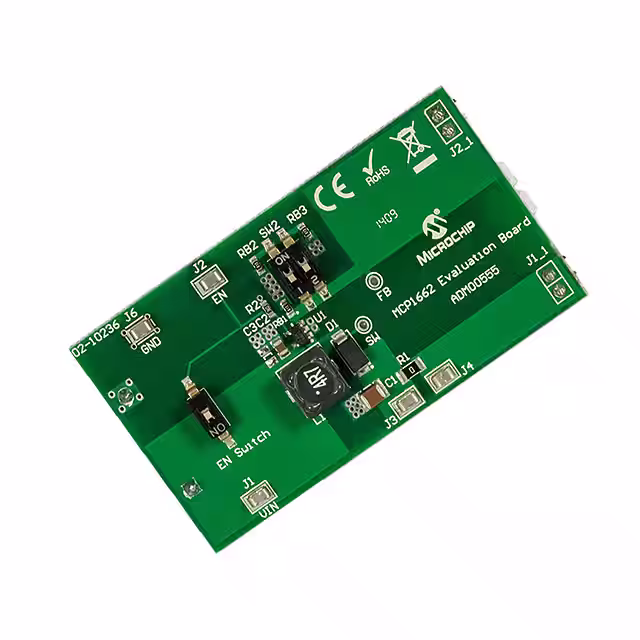

ADM00555EVAL BOARD FOR MCP1662 |
0 |
|
Datasheet | - | Bulk | Active | 90mA | 1 Non-Isolated Output | - | Dimmable | 2.4V ~ 5.5V | Board(s) | MCP1662 |
|
|
ADM00939EVAL BOARD FOR MIC3223 |
0 |
|
Datasheet | - | Bulk | Active | - | 1 Non-Isolated Output | - | Dimmable | 6V ~ 20V | Board(s) | MIC3223 |
|
LM3590MFEVEVAL BOARD FOR LM3590 |
0 |
|
- |
- | Box | Obsolete | 20mA | 1 Non-Isolated Output | 11.5V | - | 6V ~ 12.6V | Board(s) | LM3590 |
|
STEVAL-ILL074V1EVAL BOARD FOR HVLED001A |
0 |
|
Datasheet | - | Box | Active | 1.2A, 50mA | 2 Isolated Outputs | 15V, 52V | - | 90 ~ 277 VAC | Board(s) | HVLED001A |
|
STEVAL-ILL074V2EVAL BOARD FOR HVLED001A |
0 |
|
Datasheet | - | Box | Obsolete | 1.2A, 50mA | 2 Isolated Outputs | 15V, 52V | - | 90 ~ 277 VAC | Board(s) | HVLED001A |
|
|
OM13327,598EVAL BOARD FOR PCA9634 |
0 |
|
Datasheet | - | Bulk | Active | - | 8 Non-Isolated Outputs | - | Dimmable | - | Board(s) | PCA9634 |
|

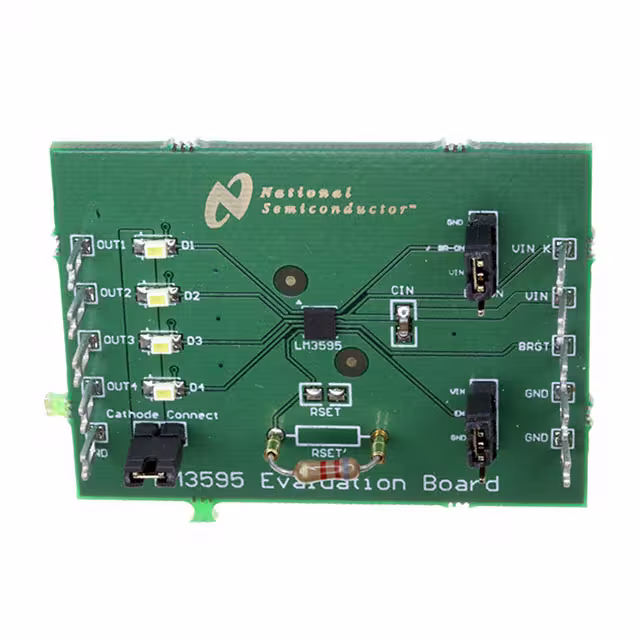

LM3595LDEVEVAL BOARD FOR LM3595 |
0 |
|
Datasheet | - | Box | Obsolete | 25mA | 4 Non-Isolated Outputs | 5.5V | Dimmable | 3V ~ 5.5V | Board(s) | LM3595 |
|
AL8807EV3EVAL BOARD FOR AL8807 |
0 |
|
- |
- | Box | Not For New Designs | 1A | 1 Non-Isolated Output | - | Dimmable | 6V ~ 36V | Board(s) | AL8807 |
|
|
AL8807AEV3EVAL BOARD FOR AL8807A |
0 |
|
- |
- | Box | Not For New Designs | 1A | 1 Non-Isolated Output | - | Dimmable | 6V ~ 36V | Board(s) | AL8807A |
|
|
DC1137AEVAL BOARD FOR LT3498 |
0 |
|
Datasheet | - | Box | Active | 20mA | 1 Non-Isolated Output | 27V | Dimmable | 3V ~ 5V | Board(s) | LT3498 |
|

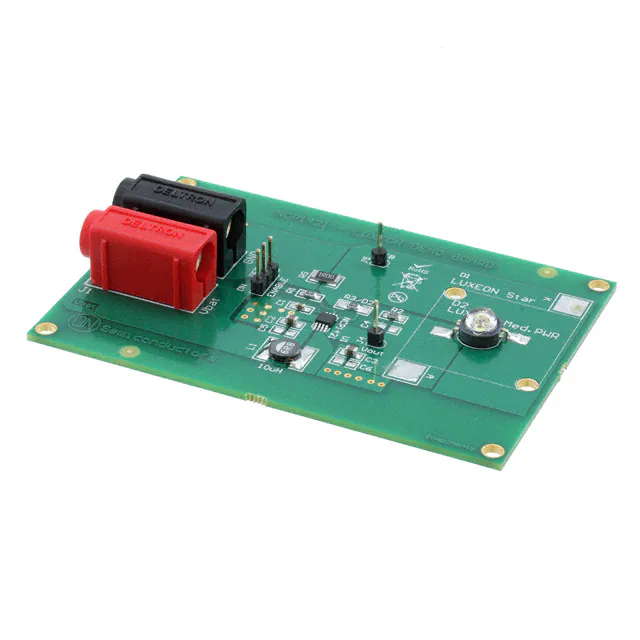

NCP1421LEDGEVBEVAL BOARD FOR NCP1421 |
0 |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | Board(s) | NCP1421 |
|
|
STEVAL-ILL024V1EVAL BOARD FOR STM32F103VB |
0 |
|
Datasheet | - | Bulk | Obsolete | 100mA | 16 Non-Isolated Outputs | 20V | - | 3V ~ 5.5V | Board(s) | STM32F103VB, STP16DP05 |
|

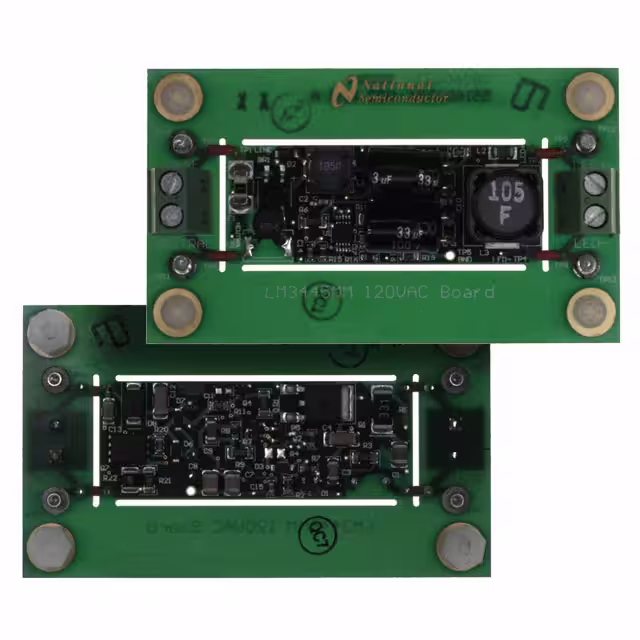

LM3445-120VSMEV/NOPBEVAL BOARD FOR LM3445 |
0 |
|
Datasheet | - | Box | Obsolete | 350mA | 1 Non-Isolated Output | - | Dimmable | 90 ~ 135 VAC | Board(s) | LM3445 |
|

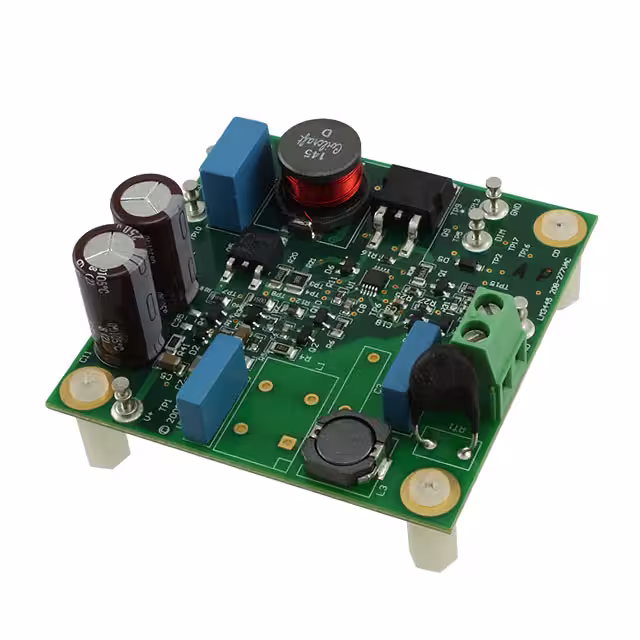

LM3445-208277EV/NOPBEVAL BOARD FOR LM3445 |
0 |
|
Datasheet | - | Box | Obsolete | 500mA | 1 Non-Isolated Output | - | Dimmable | 176 ~ 305 VAC | Board(s) | LM3445 |
|
LM3448-EDSNEV/NOPBEVAL BOARD FOR LM3448 |
0 |
|
Datasheet | - | Box | Obsolete | 181mA | 1 Non-Isolated Output | 36V | Dimmable | 85 ~ 135 VAC | Board(s) | LM3448 |
