LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

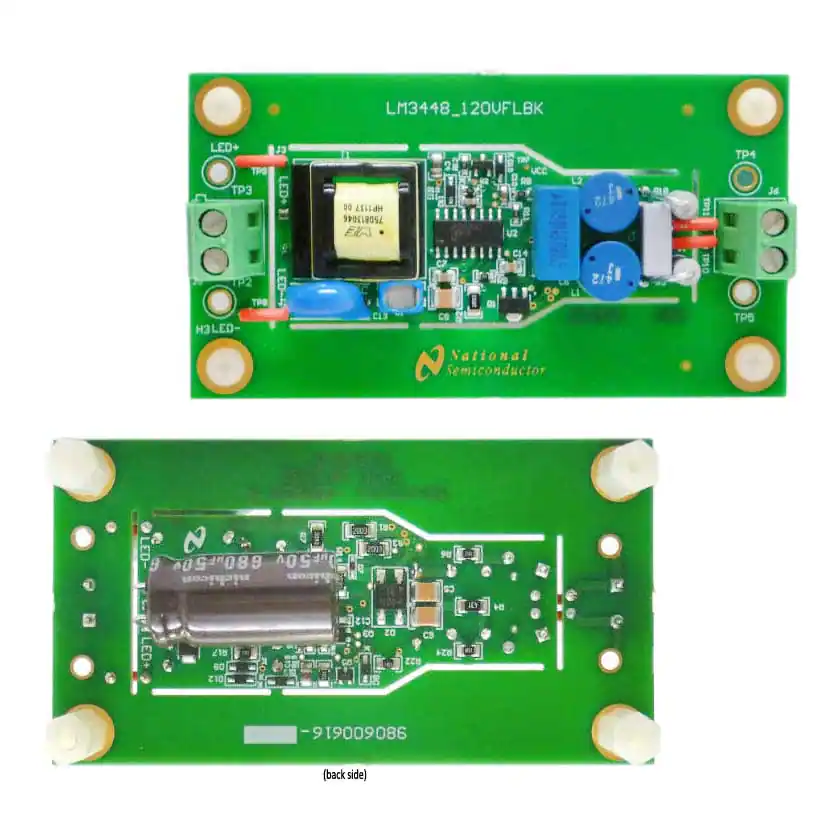

LM3448-120VFLBK/NOPBEVAL BOARD FOR LM3448 |
0 |
|
Datasheet | - | Box | Obsolete | 228mA | 1 Isolated Output | 27V | Dimmable | 180 ~ 265 VAC | Board(s) | LM3448 |
|

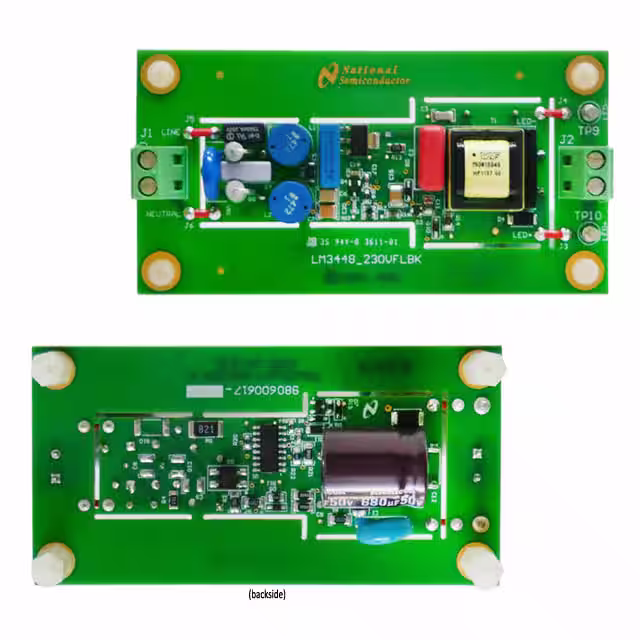

LM3448-230VFLBK/NOPBEVAL BOARD FOR LM3448 |
0 |
|
Datasheet | - | Box | Obsolete | 226mA | 1 Isolated Output | 27V | Dimmable | 180 ~ 265 VAC | Board(s) | LM3448 |
|
LM3445TRIACEVALEVAL BOARD FOR LM3445MM |
0 |
|
Datasheet | - | Box | Obsolete | 770mA | 1 Non-Isolated Output | - | Dimmable | 8V ~ 12V | Board(s) | LM3445MM |
|

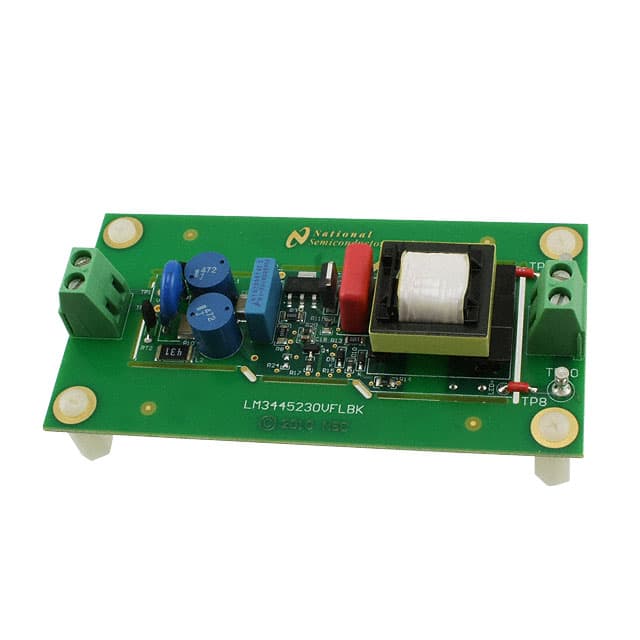

LM3445-230VFLBK/NOPBEVAL BOARD FOR LM3445 |
0 |
|
- |
- | Box | Obsolete | 350mA | 1 Isolated Output | 20V | Dimmable | 185 ~ 265 VAC | Board(s) | LM3445 |
|
STEVAL-ILL042V2EVAL BOARD FOR L6562AT TSM101 |
0 |
|
Datasheet | - | Bulk | Obsolete | 462mA | 1 Isolated Output | 130V | - | 185 ~ 265 VAC | Board(s) | L6562AT, TSM101 |
|
FEBFL77944-L80H012A-GEVBEVAL BOARD FOR FL77944MX |
0 |
|
- |
- | Bulk | Obsolete | 150mA | 4 Non-Isolated Outputs | - | Dimmable | 90 ~ 305 VAC | Board(s) | FL77944MX |
|
|
FEBFL77944-L80L012A-GEVBEVAL BOARD FOR FL77944MX |
0 |
|
- |
- | Bulk | Obsolete | 150mA | 4 Non-Isolated Outputs | - | Dimmable | 90 ~ 305 VAC | Board(s) | FL77944MX |
|
|
OM13329,598EVAL BOARD FOR PCA9952 |
0 |
|
Datasheet | - | Bulk | Active | - | 16 Non-Isolated Outputs | - | Dimmable | - | Board(s) | PCA9952 |
|
|
OM13330,598EVAL BOARD FOR PCA9955 |
0 |
|
Datasheet | - | Bulk | Active | - | 16 Non-Isolated Outputs | - | Dimmable | - | Board(s) | PCA9955 |
|
|
OM13332,598EVAL BOARD FOR PCA9685 |
0 |
|
Datasheet | - | Bulk | Active | - | 16 Non-Isolated Outputs | - | Dimmable | - | Board(s) | PCA9685 |
|
|
OM13333,598EVAL BOARD FOR PCA9635 |
0 |
|
Datasheet | - | Bulk | Active | - | 16 Non-Isolated Outputs | - | - | - | Board(s) | PCA9635 |
|
|
OM13524ULEVAL BOARD FOR PCA9745 |
0 |
|
Datasheet | - | Bulk | Active | - | 16 Non-Isolated Outputs | - | Dimmable | - | Board(s) | PCA9745 |
|
NCP1216LEDGEVBEVAL BOARD FOR NCP1216 |
0 |
|
- |
- | Bulk | Obsolete | 1A | 1 Non-Isolated Output | - | - | 90 ~ 120 VAC | Board(s) | NCP1216 |
|
NCL30100ADLMGEVBEVAL BOARD FOR NCL30100 |
0 |
|
Datasheet | - | Box | Obsolete | - | 1 Non-Isolated Output | - | - | 12V | Board(s) | NCL30100 |
|
|
DC928AEVAL BOARD FOR LTC3452 |
0 |
|
Datasheet | - | Box | Active | 250mA, 20mA | 7 Non-Isolated Outputs | 4.4V | Dimmable | 2.7V ~ 5.5V | Board(s) | LTC3452 |
|
|
EVAL-SSR01B-35WEVAL BOARD FOR HVLED001B |
0 |
|
- |
- | Bulk | Active | 700mA | 1 Non-Isolated Output | 24V ~ 48V | Dimmable | 90 ~ 265 VAC | Board(s) | HVLED001B |
|
|
MSLB9082EVAL BOARD FOR MSL3162 |
0 |
|
Datasheet | - | Tube | Obsolete | - | 8 Non-Isolated Outputs | - | Dimmable | 10V ~ 16V | Board(s) | MSL3162 |
|
DC629AEVAL BOARD FOR LTC3205 |
0 |
|
Datasheet | - | Box | Obsolete | - | 9 Non-Isolated Outputs | - | Dimmable | 2.7V ~ 4.5V | Board(s) | LTC3205 |
|

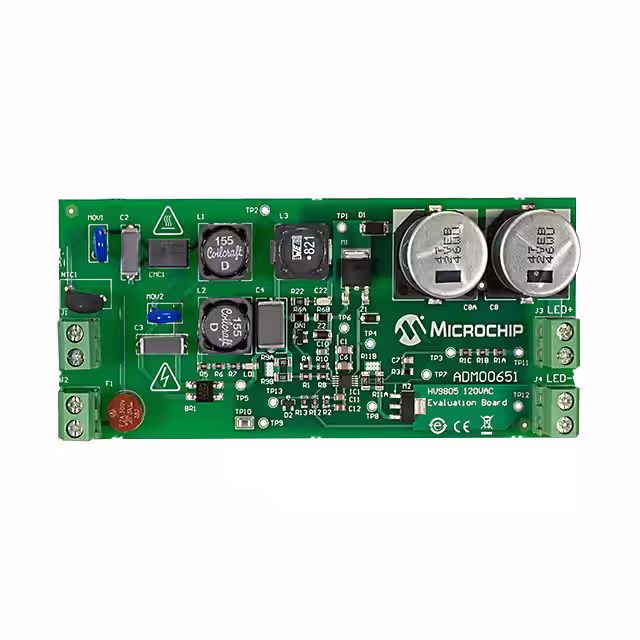

ADM00651EVAL BOARD FOR HV9805 |
0 |
|
Datasheet | - | Bulk | Active | 90mA | 1 Non-Isolated Output | 240V | - | 102 ~ 138 VAC | Board(s) | HV9805 |
|
STEVAL-ILL016V1EVAL BOARD FOR LD6562AD TSM1052 |
0 |
|
Datasheet | - | Box | Obsolete | 700mA | 1 Isolated Output | 40V | Dimmable | 96 ~ 132 VAC | Board(s) | LD6562AD, TSM1052 |
