LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

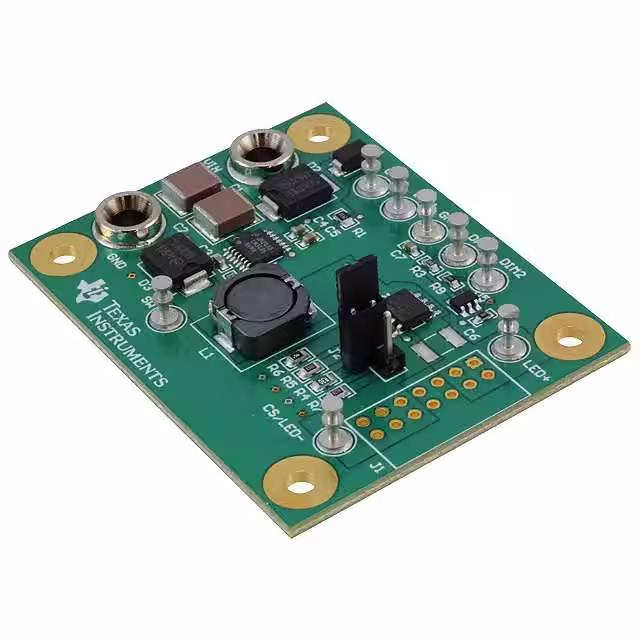

LM3406HVEVAL/NOPBEVAL BOARD FOR LM3406HV |
1 |
|
Datasheet | - | Box | Active | 1.5A, 1A, 700mA or 350mA | 1 Non-Isolated Output | - | Dimmable | 6V ~ 75V | Board(s) | LM3406HV |
|

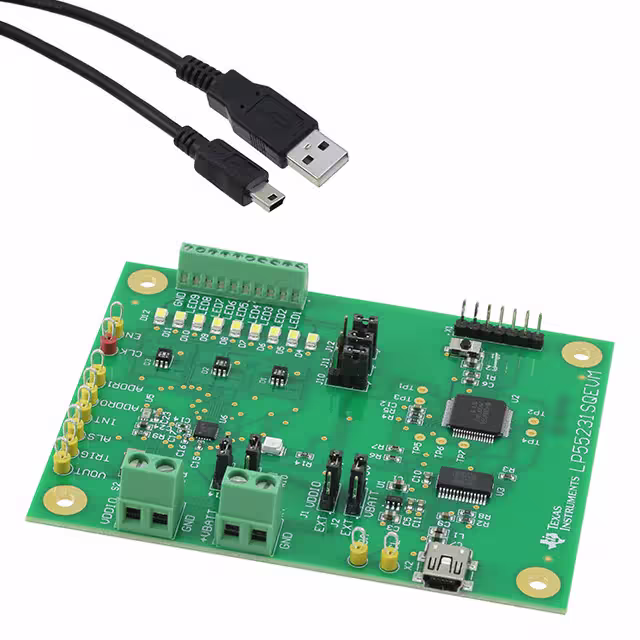

LP55231SQEVMEVAL BOARD FOR LP55231 |
1 |
|
Datasheet | - | Box | Active | - | - | - | Dimmable | 5V | Board(s), Cable(s) | LP55231 |
|
CAT4101AEVBEVAL BOARD FOR CAT4101 |
0 |
|
Datasheet | - | Box | Active | 1A | 1 Non-Isolated Output | - | Dimmable | 3V ~ 5.5V | Board(s) | CAT4101 |
|
LP5522TMEVEVAL BOARD FOR LP5522 |
1 |
|
Datasheet | - | Bulk | Active | 20mA | 1 Non-Isolated Output | - | - | 2.7V ~ 5.5V | Board(s), Cable(s) | LP5522 |
|
LP8862Q1EVMEVAL BOARD FOR LP8862-Q1 |
1 |
|
Datasheet | - | Bulk | Active | 160mA | 2 Non-Isolated Outputs | 45V | Dimmable | 4.5V ~ 40V | Board(s) | LP8862-Q1 |
|
LM36010EVMEVAL BOARD FOR LM36010 |
1 |
|
Datasheet | - | Bulk | Active | 1.5A | 1 Non-Isolated Output | - | - | 2.5V ~ 5.5V | Board(s) | LM36010 |
|
SECO-NCV7685RGB-GEVBEVAL BOARD FOR NCV7685 NCV8170 |
1 |
|
Datasheet | - | Bulk | Active | 60mA | 16 Non-Isolated Outputs | - | Dimmable | 12V ~ 24V | Board(s) | NCV7685, NCV8170, NCV891330, PCA9655 |
|
TPS92682EVM-070EVAL BOARD FOR TPS92682-Q1 |
0 |
|
Datasheet | - | Box | Active | 550mA | 1 Non-Isolated Output | 60V | Dimmable | 6.5V ~ 20V | Board(s) | TPS92682-Q1 |
|
REFXDPL8219U40WTOBO1EVAL BOARD FOR XDPL8219 |
1 |
|
Datasheet | - | Bulk | Active | 800mA | 1 Non-Isolated Output | 54V | - | - | Board(s) | XDPL8219 |
|
DC637AEVAL BOARD FOR LT3465 LT3465A |
0 |
|
Datasheet | - | Box | Active | 15mA | 1 Non-Isolated Output | 12V ~ 16V | Dimmable | 2.7V ~ 5V | Board(s) | LT3465, LT3465A |
|
TLC59116EVM-390EVAL BOARD FOR TLC59116 |
1 |
|
Datasheet | - | Box | Active | - | 16 Non-Isolated Outputs | - | Dimmable | - | Board(s) | TLC59116 |
|
TLC59116FEVM-571EVAL BOARD FOR TLC59116 |
1 |
|
Datasheet | - | Box | Active | 120mA | 16 Non-Isolated Outputs | 17V | Dimmable | 5V | Board(s) | TLC59116 |
|
LM36923EVMEVAL BOARD FOR LM36923 |
1 |
|
Datasheet | - | Box | Active | - | 3 Non-Isolated Outputs | - | - | 2.5V ~ 5.5V | Board(s) | LM36923 |
|
LM36923HEVMEVAL BOARD FOR LM36923H |
1 |
|
Datasheet | - | Bulk | Active | - | 3 Non-Isolated Outputs | - | - | 2.5V ~ 5.5V | Board(s) | LM36923H |
|
ADM00612EVAL BOARD FOR MCP1643 |
1 |
|
Datasheet | - | Bulk | Active | 350mA | 1 Non-Isolated Output | - | Dimmable | 0.65V ~ 2V | Board(s) | MCP1643 |
|
LP5524TM-5EVEVAL BOARD FOR LP5524 |
1 |
|
Datasheet | - | Box | Active | 100mA | 4 Non-Isolated Outputs | - | Dimmable | 2.7V ~ 5.5V | Board(s) | LP5524 |
|
LP8555EVMEVAL BOARD FOR LP8555 |
1 |
|
Datasheet | - | Box | Active | 50mA | 12 Non-Isolated Outputs | - | Dimmable | 2.7V ~ 20V | Board(s) | LP8555 |
|
LM3643EVMEVAL BOARD FOR LM3643 |
1 |
|
Datasheet | - | Box | Active | - | 2 Non-Isolated Outputs | - | - | 2.5V ~ 5.5V | Board(s) | LM3643 |
|
TLC6C5712EVMEVAL BOARD FOR TLC6C5712-Q1 |
1 |
|
Datasheet | - | Box | Active | 75mA | 12 Non-Isolated Outputs | - | Dimmable | 5V, USB | Board(s) | TLC6C5712-Q1 |
|
TPS92630EVMEVAL BOARD FOR TPS92630-Q1 |
1 |
|
Datasheet | - | Bulk | Active | 150mA | 3 Non-Isolated Outputs | - | Dimmable | 5V ~ 40V | Board(s) | TPS92630-Q1 |
