LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STEVAL-ILL043V1EVAL BOARD FOR L6562A |
5 |
|
Datasheet | - | Bulk | Obsolete | 1.5A | 1 Non-Isolated Output | 65V | Dimmable | 165 ~ 277 VAC | Board(s) | L6562A |
|
STEVAL-ILL052V1EVAL BOARD FOR L6562 L6599 |
3 |
|
Datasheet | - | Box | Obsolete | 2.7A | 1 Isolated Output | 48V | - | 177 ~ 277 VAC | Board(s) | L6562, L6599 |
|

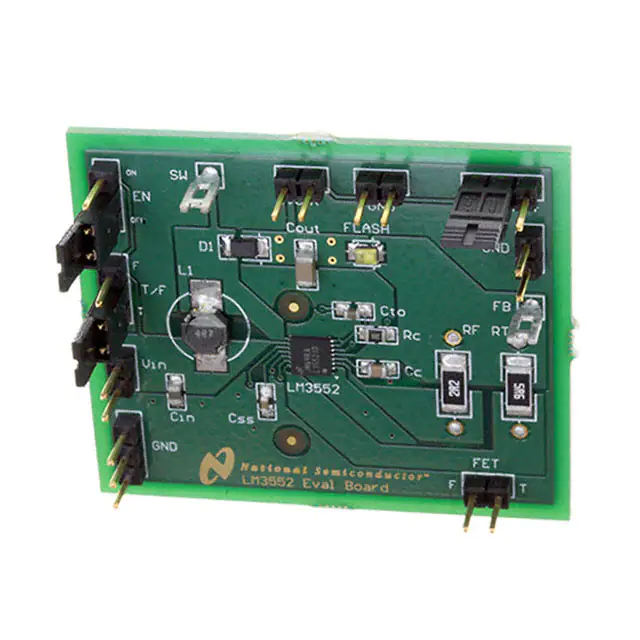

LM3552SDEVEVAL BOARD FOR LM3552 |
3 |
|
Datasheet | - | Box | Obsolete | 700mA | 1 Non-Isolated Output | 4V | - | 2.7V ~ 5.5V | Board(s) | LM3552 |
|

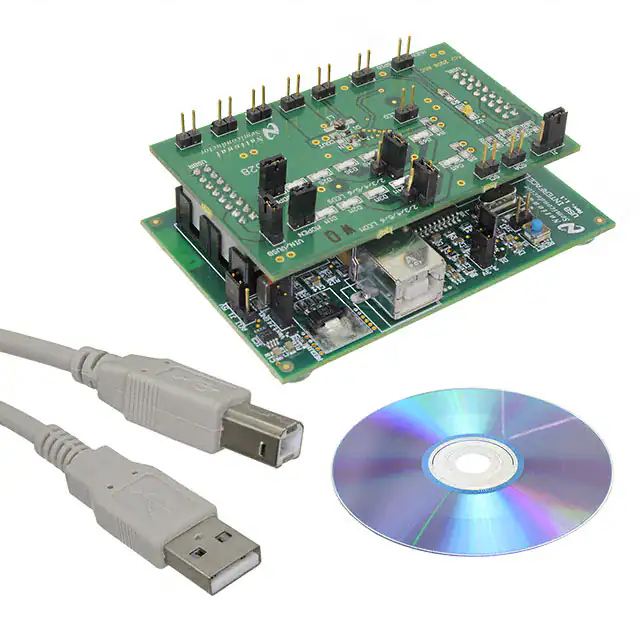

LM3528TMEVEVAL BOARD FOR LM3528 |
3 |
|
Datasheet | - | Box | Obsolete | 20mA | 2 Non-Isolated Outputs | 21V | Dimmable | 2.5V ~ 5.5V | Board(s) | LM3528 |
|
LM3699EVMEVAL BOARD FOR LM3699 |
3 |
|
Datasheet | - | Box | Obsolete | - | 3 Non-Isolated Outputs | - | - | 2.7V ~ 5.5V | Board(s) | LM3699 |
|
UCC25710EVM-654EVAL BOARD FOR UCC25710 |
2 |
|
Datasheet | - | Box | Obsolete | 250mA | 4 Isolated Outputs | 98V | Dimmable | 370V ~ 410V | Board(s) | UCC25710 |
|
LM3565EVMEVAL BOARD FOR LM3565 |
2 |
|
Datasheet | - | Box | Obsolete | - | - | - | - | 2.7V ~ 5.5V | Board(s) | LM3565 |
|
LP8860-Q1EVMEVAL BOARD FOR LP8860-Q1 |
2 |
|
Datasheet | - | Box | Obsolete | 150mA | 4 Non-Isolated Outputs | - | Dimmable | 3V ~ 48V | Board(s) | LP8860-Q1 |
|
EVL150W-HVSLEVAL BOARD FOR STCMB1 |
3 |
|
Datasheet | - | Bulk | Active | 1A | 1 Isolated Output | 150V | Dimmable | 90 ~ 264 VAC | Board(s) | STCMB1 |
|
STEVAL-ILL066V1EVAL BOARD FOR STLUX385A |
3 |
|
Datasheet | - | Bulk | Active | 1A | 1 Isolated Output | - | Dimmable | 90 ~ 265 VAC | Board(s) | STLUX385A |
|
LM3633EVMEVAL BOARD FOR LM3633 |
2 |
|
Datasheet | - | Box | Obsolete | - | - | - | - | 2.7V ~ 5.5V | Board(s) | LM3633 |
|
OMPCA9959LEDEVEVAL BOARD FOR PCA9959 |
2 |
|
- |
- | Bulk | Active | 63mA | 24 Non-Isolated Outputs | 5.5V | Dimmable | 2.7V ~ 5.5V | Board(s) | PCA9959 |
|

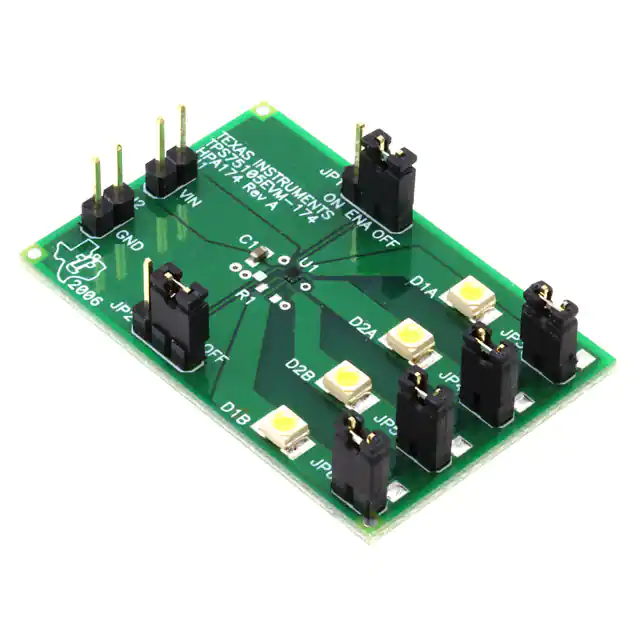

TPS75105EVM-174EVAL BOARD FOR TPS75105 |
2 |
|
Datasheet | - | Box | Active | 5mA | 4 Non-Isolated Outputs | - | Dimmable | 2.7V ~ 5.5V | Board(s) | TPS75105 |
|
DEMOBCR431ULVDROPTOBO1EVAL BOARD FOR BCR431U |
4 |
|
Datasheet | - | Bulk | Active | 36.5mA | 1 Non-Isolated Output | - | - | 6V ~ 42V | Board(s) | BCR431U |
|
BCR430ULEDBOARDTOBO1EVAL BOARD FOR BCR430U |
3 |
|
Datasheet | - | Box | Active | 100mA | 1 Non-Isolated Output | 1.24V | - | 6V ~ 42V | Board(s) | BCR430U |
|
|
BCR320UHWLEDBOARDTOBO1EVAL BOARD FOR BCR320U |
1 |
|
Datasheet | - | Box | Active | 150mA | 1 Non-Isolated Output | - | - | 24V | Board(s) | BCR320U |
|
LM3401-MR16DEMO/NOPBEVAL BOARD FOR LM3401 |
1 |
|
Datasheet | - | Box | Active | 1A | 1 Non-Isolated Output | 6.2V | Dimmable | 12VAC | Board(s) | LM3401 |
|
TPS92550EVM/NOPBEVAL BOARD FOR TPS92550 |
1 |
|
Datasheet | - | Box | Active | 350mA | 1 Non-Isolated Output | - | Dimmable | 4.5V ~ 36V | Board(s) | TPS92550 |
|
STEVAL-ILL078V1EVAL BOARD FOR LED6000 |
4 |
|
Datasheet | - | Box | Active | 1A | 1 Non-Isolated Output | - | Dimmable | 4.5V ~ 60V | Board(s) | LED6000 |
|
STEVAL-ILL054V2EVAL BOARD FOR LED2001 |
2 |
|
Datasheet | - | Box | Active | - | 1 Non-Isolated Output | - | Dimmable | 3V ~ 18V | Board(s) | LED2001 |
