LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

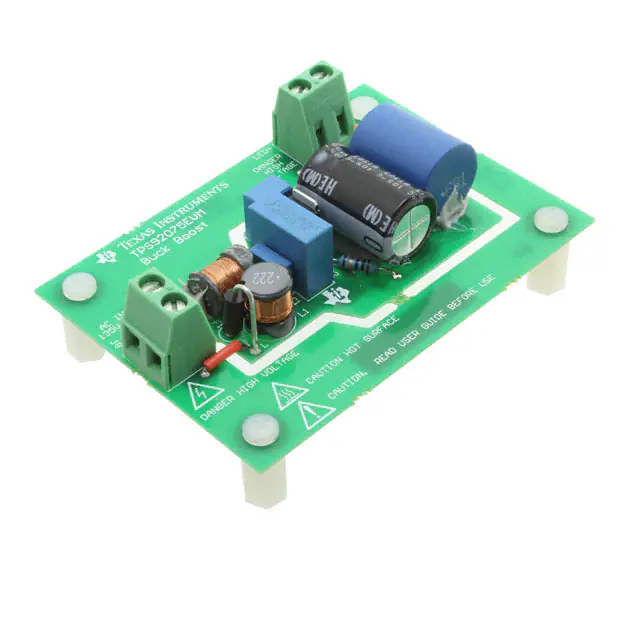

TPS92075EVMEVAL BOARD FOR TPS92075 |
4 |
|
Datasheet | - | Box | Obsolete | 375mA | 1 Non-Isolated Output | 18V ~ 50V | Dimmable | 90 ~ 135 VAC | Board(s) | TPS92075 |
|
AP1694AEV10EVAL BOARD FOR AP1694A |
8 |
|
Datasheet | - | Box | Active | 400mA | 1 Non-Isolated Output | 12V | Dimmable | 100 ~ 135 VAC | Board(s) | AP1694A |
|
AP1694AEV11EVAL BOARD FOR AP1694A |
6 |
|
Datasheet | - | Box | Active | 400mA | 1 Non-Isolated Output | 12V | Dimmable | 200 ~ 265 VAC | Board(s) | AP1694A |
|
PAM2846EV1EVAL BOARD FOR PAM2846 |
8 |
|
- |
- | Box | Obsolete | 30mA | 6 Non-Isolated Outputs | - | Dimmable | 4.8V ~ 28V | Board(s) | PAM2846 |
|
AL5811EV2EVAL BOARD FOR AL5811 |
3 |
|
Datasheet | - | Box | Active | 75mA | 1 Non-Isolated Output | 1V ~ 60V | - | 3.5V ~ 60V | Board(s) | AL5811 |
|
STEVAL-ILL020V1EVAL BOARD FOR LED7706 |
8 |
|
Datasheet | - | Box | Active | 30mA | 6 Non-Isolated Outputs | 36V | Dimmable | 4.5V ~ 36V | Board(s) | LED7706 |
|
AP1695EV4EVAL BOARD FOR AP1695 |
9 |
|
Datasheet | - | Box | Active | 400mA | 1 Non-Isolated Output | 12V | Dimmable | 7V ~ 25V | Board(s) | AP1695 |
|
LM3642TL-LTEVMEVALUATION BOARD FOR LM3642 |
2 |
|
Datasheet | - | Box | Active | 1.5A | 1 Non-Isolated Output | - | - | - | Board(s) | LM3642 |
|
STEVAL-ILL005V1EVAL BOARD FOR VIPER12A-E |
6 |
|
Datasheet | - | Bulk | Obsolete | 1.05A, 700mA or 350mA | 1 Isolated Output | 16V | - | 90 ~ 264 VAC | Board(s) | VIPer12A-E |
|
AL5809Q-25EV1EVAL BOARD FOR AL5809Q |
6 |
|
Datasheet | - | Box | Active | 25mA | 1 Non-Isolated Output | - | Dimmable | 2.5V ~ 60V | Board(s) | AL5809Q |
|
TPS61054EVM-273EVAL BOARD FOR TPS61054 |
5 |
|
Datasheet | - | Box | Obsolete | 75mA | 1 Non-Isolated Output | 5V | Dimmable | 2.5V ~ 6V | Board(s) | TPS61054 |
|

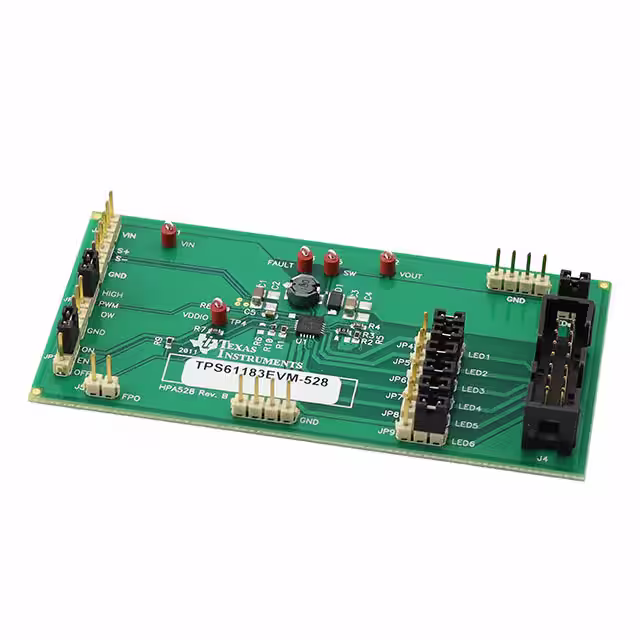

TPS61183EVM-528EVAL BOARD FOR TPS61183 |
5 |
|
Datasheet | - | Box | Obsolete | 120mA | 6 Non-Isolated Outputs | 38V | - | 4.5V ~ 24V | Board(s) | TPS61183 |
|

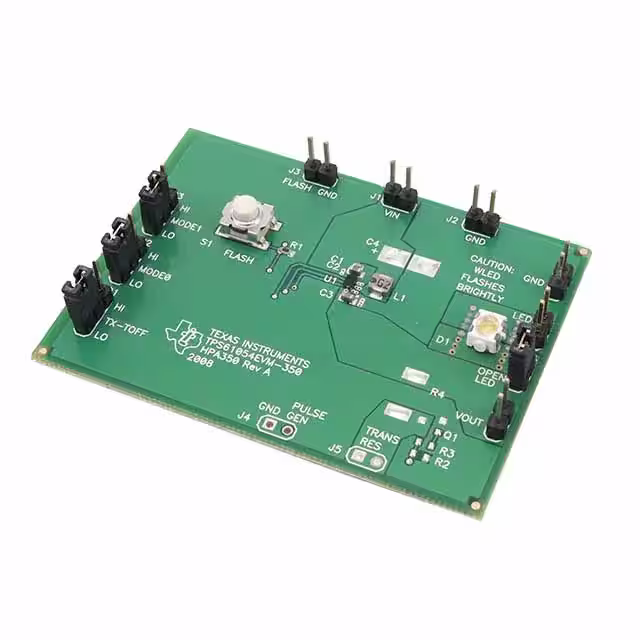

TPS61054EVM-350EVAL BOARD FOR TPS61054 |
4 |
|
Datasheet | - | Box | Obsolete | 75mA | 1 Non-Isolated Output | 5.5V | Dimmable | 2.5V ~ 6V | Board(s) | TPS61054 |
|

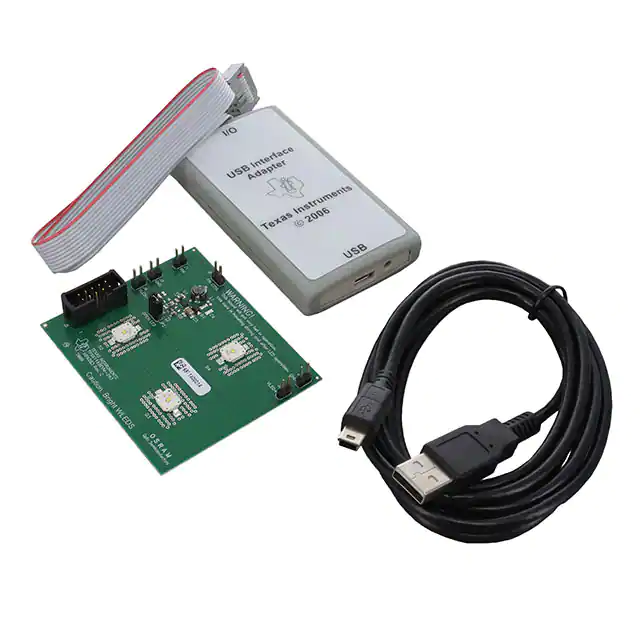

TPS61165EVM-283EVAL BOARD FOR TPS61165 |
3 |
|
Datasheet | - | Box | Obsolete | 350mA | 1 Non-Isolated Output | 39V | - | 3V ~ 18V | Board(s), Cable(s), Accessories | TPS61165 |
|

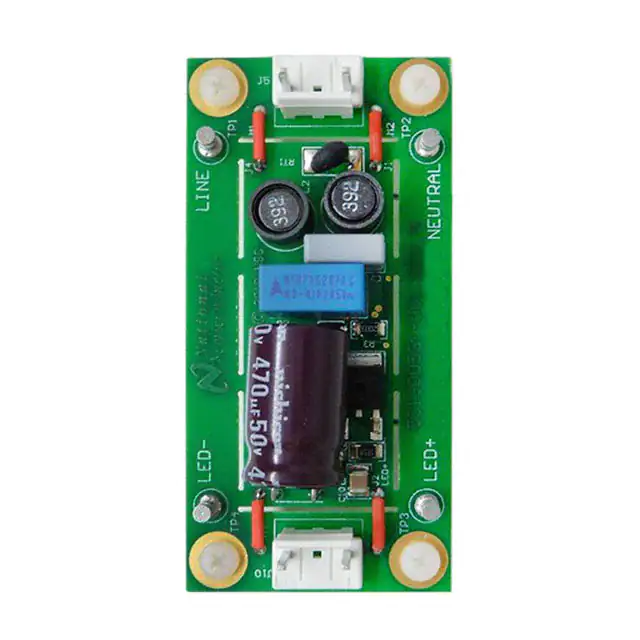

LM3444-EDSNEV/NOPBEVAL BOARD FOR LM3444 |
3 |
|
Datasheet | - | Bulk | Obsolete | - | 1 Non-Isolated Output | - | - | 85 ~ 135 VAC | Board(s) | LM3444 |
|
LM3556TMEV/NOPBEVAL BOARD FOR LM3556 |
3 |
|
Datasheet | - | Box | Obsolete | 1.5A | 1 Non-Isolated Output | - | - | 2.5V ~ 5.5V | Board(s) | LM3556 |
|
STEVAL-ILL055V1EVAL BOARD FOR HVLED815PF |
4 |
|
Datasheet | - | Box | Active | 640mA | 1 Isolated Output | - | - | 185 ~ 264 VAC | Board(s) | HVLED815PF |
|
EVALLEDICL8201F2TOBO1EVAL BOARD FOR ICL8201 |
3 |
|
Datasheet | CoolMOS™ | Box | Obsolete | 270mA | 1 Non-Isolated Output | 55V ~ 75V | - | 170 ~ 277 VAC | Board(s) | ICL8201, IPS65R1K5CE |
|
REFXDPL8218U40WTOBO1EVAL BOARD FOR XDPL8218 |
5 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | 800mA | 1 Isolated Output | - | - | 90 ~ 305 VAC | Board(s) | XDPL8218 |
|
STEVAL-ILL041V1EVAL BOARD FOR L6564 |
3 |
|
Datasheet | - | Bulk | Obsolete | 350mA | 1 Non-Isolated Output | - | - | 96 ~ 132 VAC | Board(s) | L6564 |
