LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

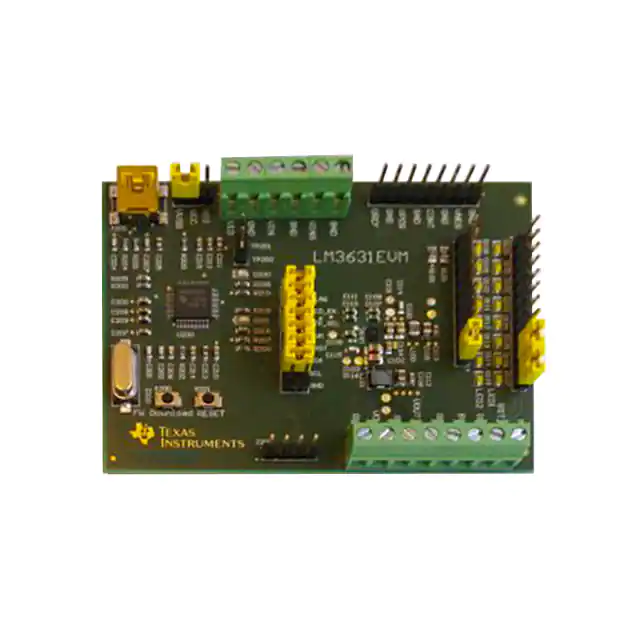

LM3631EVMEVAL BOARD FOR LM3631 |
2 |
|
Datasheet | - | Box | Active | 25mA | 2 Non-Isolated Outputs | - | Dimmable | 2.7V ~ 5V | Board(s) | LM3631 |
|

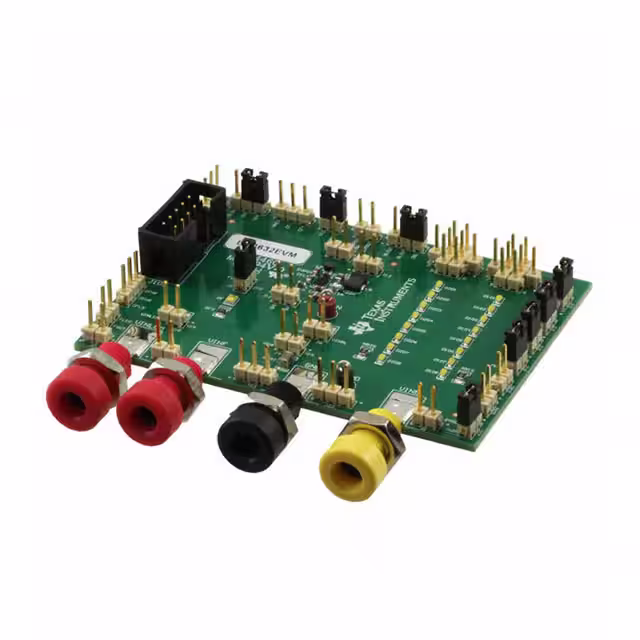

LM3632EVMEVAL BOARD FOR LM3632A |
2 |
|
Datasheet | - | Box | Active | 1.5A | 2 Non-Isolated Outputs | - | - | 2.7V ~ 5V | Board(s) | LM3632A |
|

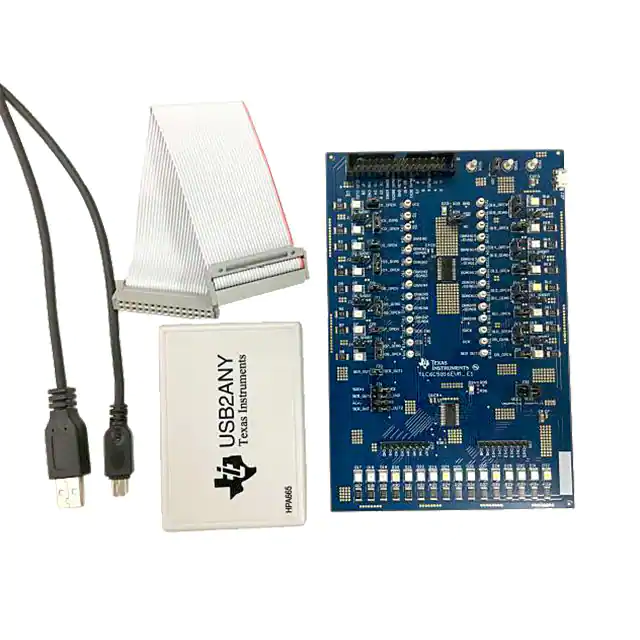

TLC6C5816EVMEVAL BOARD FOR TLC6C5816-Q1 |
2 |
|
Datasheet | - | Bulk | Active | 20mA | 16 Non-Isolated Outputs | - | Dimmable | 3V ~ 5.5V | Board(s) | TLC6C5816-Q1 |
|

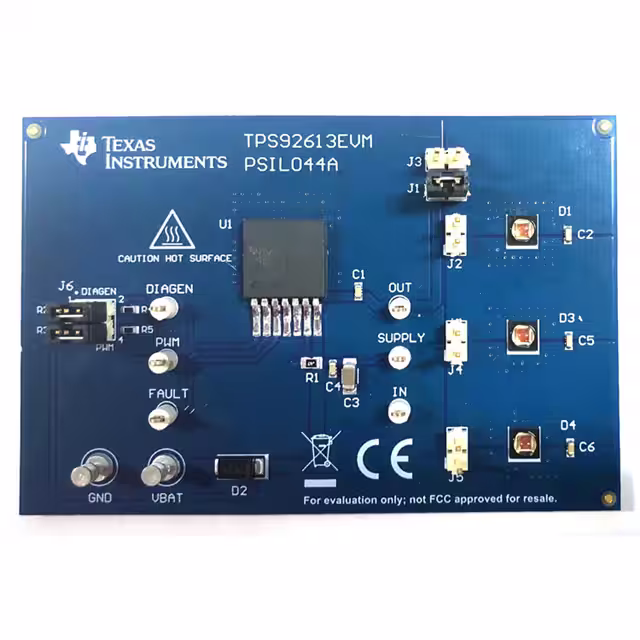

TPS92613EVMEVAL BOARD FOR TPS92613-Q1 |
2 |
|
Datasheet | - | Bulk | Active | 210mA | 1 Non-Isolated Output | - | - | 9V ~ 16V | Board(s) | TPS92613-Q1 |
|
DC1319B-BEVAL BOARD FOR LT3756-1 |
2 |
|
Datasheet | - | Box | Active | 500mA | 1 Non-Isolated Output | 80V | Dimmable | 8V ~ 80V | Board(s) | LT3756-1 |
|
TLD5190VOLTDEMOTOBO1EVAL BOARD FOR TLD5190 |
3 |
|
- |
- | Bulk | Active | - | 1 Non-Isolated Output | 3.7V ~ 25V | - | 5V ~ 28V | Board(s) | TLD5190 |
|
DC2857AEVAL BOARD FOR LT3922-1 |
0 |
|
Datasheet | - | Box | Active | 330mA | 1 Non-Isolated Output | 34V | Dimmable | 7V ~ 28V | Board(s) | LT3922-1 |
|

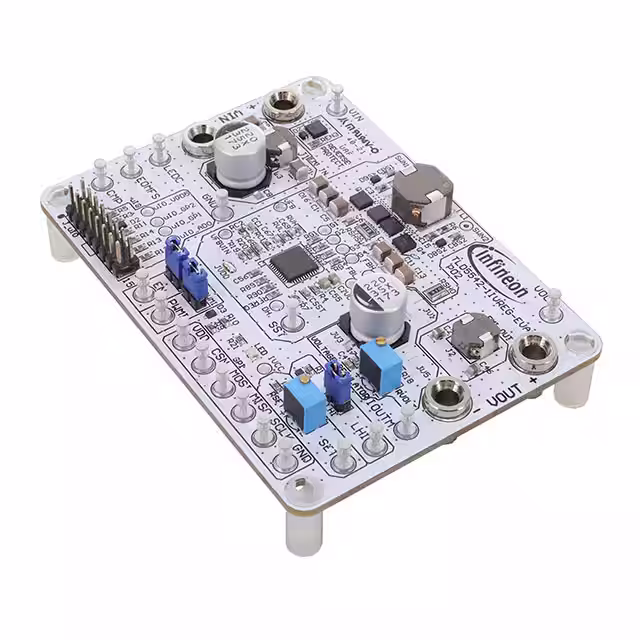

TLD55421IVREGEVALTOBO1EVAL BOARD FOR TLD5542-1 |
3 |
|
Datasheet | - | Bulk | Active | 1.5A | 1 Non-Isolated Output | 2V ~ 51V | Dimmable | 5.5V ~ 35V | Board(s) | TLD5542-1 |
|
TPS92622Q1EVMEVAL BOARD FOR TPS92622-Q1 |
5 |
|
Datasheet | - | Box | Active | 130mA | 2 Non-Isolated Outputs | - | Dimmable | 9V ~ 20V | Board(s) | TPS92622-Q1 |
|
REFICL5102HVU150WTOBO1EVAL BOARD FOR ICL5102HV |
4 |
|
Datasheet | - | Box | Active | 3A | 1 Non-Isolated Output | 17V ~ 48V | - | 277 ~ 528 VAC | Board(s) | ICL5102HV |
|

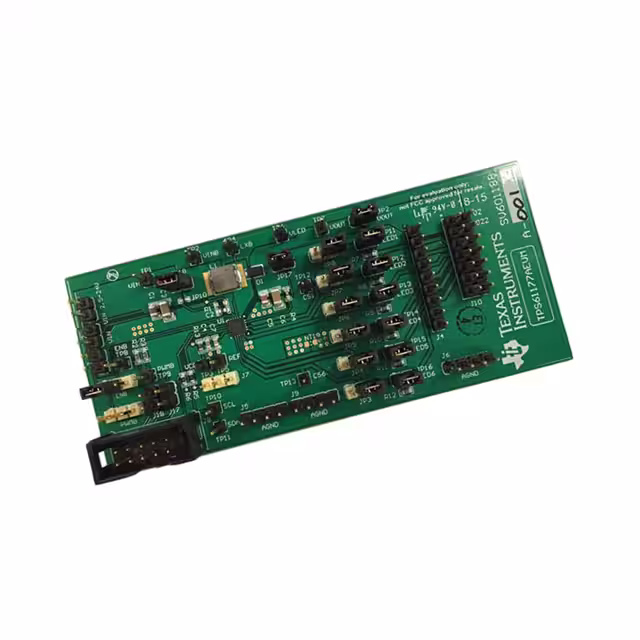

TPS61177AEVMEVAL BOARD FOR TPS61177A |
2 |
|
Datasheet | - | Bulk | Active | - | 6 Non-Isolated Outputs | - | Dimmable | 2.5V ~ 24V | Board(s) | TPS61177A |
|
LP8557IEVMEVAL BOARD FOR LP8557I |
2 |
|
Datasheet | - | Box | Active | 20mA | 6 Non-Isolated Outputs | - | Dimmable | 2.7V ~ 5.5V | Board(s) | LP8557I |
|
LP8557EVMEVAL BOARD FOR LP8557 |
3 |
|
Datasheet | - | Box | Active | 20mA | 6 Non-Isolated Outputs | - | Dimmable | 2.7V ~ 5.5V | Board(s) | LP8557 |
|
STEVAL-LLL009V1EVAL BOARD FOR L6562AT STGAP2D |
3 |
|
Datasheet | - | Bulk | Active | 6.25A | 1 Isolated Output | 48.5V | Dimmable | 270 ~ 480 VAC | Board(s) | L6562AT, STGAP2D, STM32F334R8, STP100N10F7, STW20N95DK5, STW20N95K5, VIPER267KDTR |
|
|
TCA6507EVMEVAL BOARD FOR TCA6507 |
7 |
|
Datasheet | - | Box | Active | 40mA | 7 Non-Isolated Outputs | - | Dimmable | 1.65V ~ 3.6V | Board(s) | TCA6507 |
|
PAM2861EV1EVAL BOARD FOR PAM2861 |
5 |
|
Datasheet | - | Box | Active | 1A | 1 Non-Isolated Output | - | - | 6V ~ 40V | Board(s) | PAM2861 |
|
|
TLD700216SYSEVALTOBO1EVAL BOARD FOR TLD7002-16ES |
2 |
|
- |
LITIX™ | Bulk | Active | 20mA | 16 Non-Isolated Outputs | - | - | 6V ~ 28V | Board(s) | TLD7002-16ES |
|
TPS61150EVM-150EVAL BOARD FOR TPS61150 |
6 |
|
Datasheet | - | Bulk | Active | 15.1mA | 1 Non-Isolated Output | 28V | Dimmable | 3V ~ 6V | Board(s) | TPS61150 |
|
|
TPS92201SOTEVMEVAL BOARD FOR TPS92201A |
5 |
|
- |
- | Box | Active | 500mA | 1 Non-Isolated Output | 3.3V | Dimmable | 2.5V ~ 5.5V | Board(s) | TPS92201A |
|
|
TLD5098EPB2GEVALKITTOBO1EVAL BOARD FOR TLD5098EP |
2 |
|
- |
LITIX™ | Bulk | Active | 350mA | 1 Non-Isolated Output | 30V ~ 54V | Dimmable | 8V ~ 27V | Board(s) | TLD5098EP |
