LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

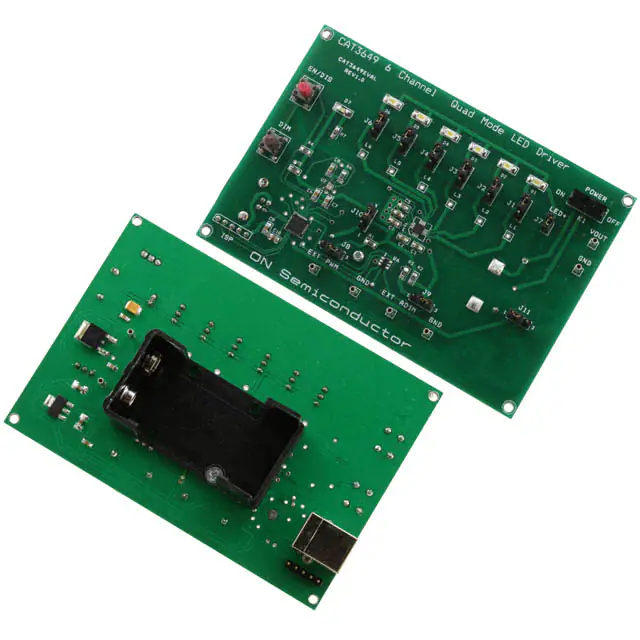

CAT3649AGEVBEVAL BOARD FOR CAT3649 |
2 |
|
Datasheet | QUAD-Mode® | Bulk | Active | 25mA | 6 Non-Isolated Outputs | - | Dimmable | 3.3V, 5V | Board(s) | CAT3649 |
|

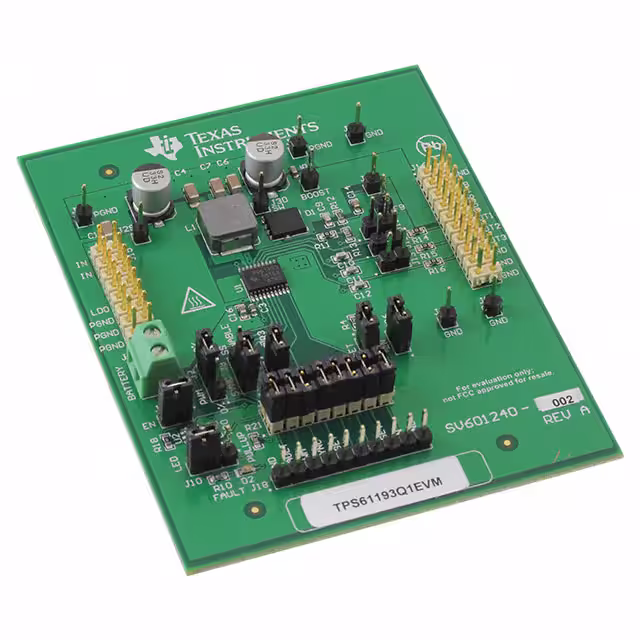

TPS61193Q1EVMEVAL BOARD FOR TPS61193-Q1 |
7 |
|
Datasheet | - | Bulk | Active | 100mA | 3 Non-Isolated Outputs | 45V | - | 4.5V ~ 40V | Board(s) | TPS61193-Q1 |
|
LM3492HCEVMEVAL BOARD FOR LM3492HC |
5 |
|
Datasheet | - | Box | Active | 150mA | 2 Non-Isolated Outputs | 38V | - | 9V ~ 16V | Board(s) | LM3492HC |
|

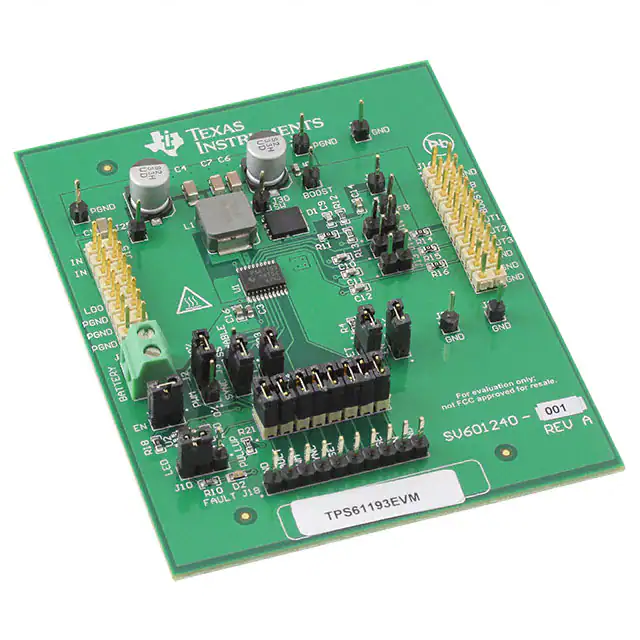

TPS61193EVMEVAL BOARD FOR TPS61193 |
5 |
|
Datasheet | - | Bulk | Active | 100mA | 3 Non-Isolated Outputs | 45V | - | 4.5V ~ 40V | Board(s) | TPS61193 |
|

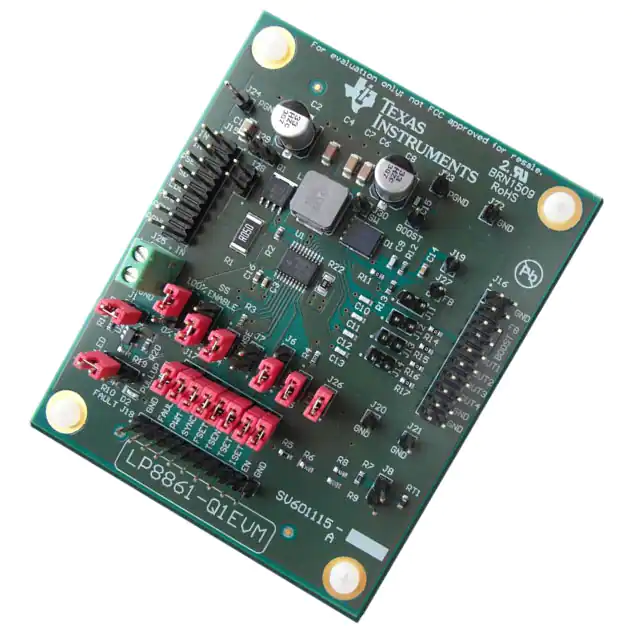

LP8861Q1EVMEVAL BOARD FOR LP8861-Q1 |
3 |
|
Datasheet | - | Box | Active | 100mA | 4 Non-Isolated Outputs | 45V | Dimmable | 4.5V ~ 40V | Board(s) | LP8861-Q1 |
|

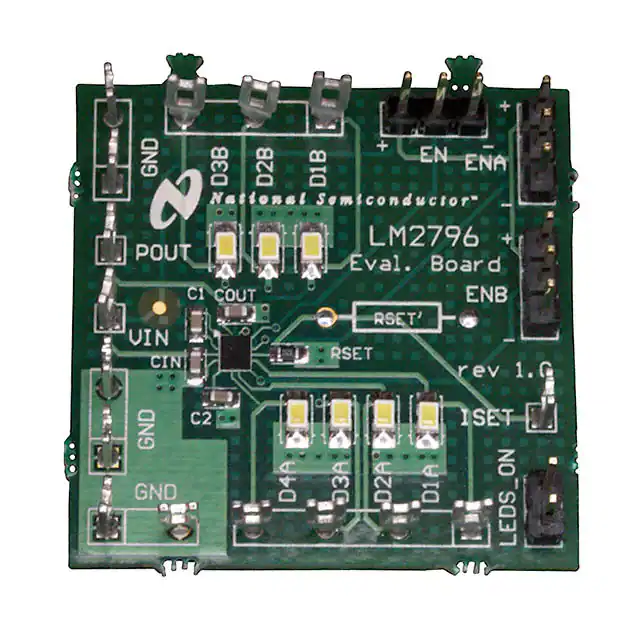

LM2796TLEVEVAL BOARD FOR LM2796 |
2 |
|
Datasheet | - | Box | Active | 20mA | 7 Non-Isolated Outputs | 4V | Dimmable | 2.7V ~ 5.5V | Board(s) | LM2796 |
|

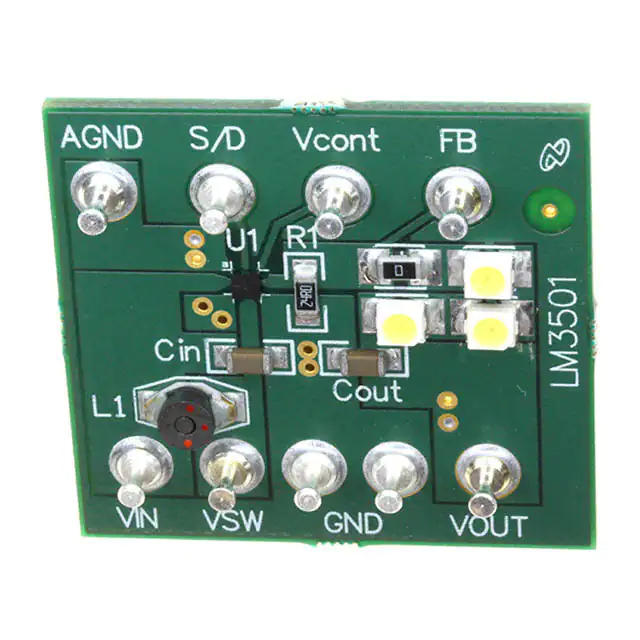

LM3501TL-16EVEVAL BOARD FOR LM3501 |
2 |
|
Datasheet | - | Box | Active | 20mA | 1 Non-Isolated Output | 16V | Dimmable | 2.7V ~ 7V | Board(s) | LM3501 |
|
LM3508TLEVEVAL BOARD FOR LM3508 |
4 |
|
Datasheet | - | Box | Active | 20mA | 1 Non-Isolated Output | 17V | Dimmable | 2.7V ~ 5.5V | Board(s) | LM3508 |
|

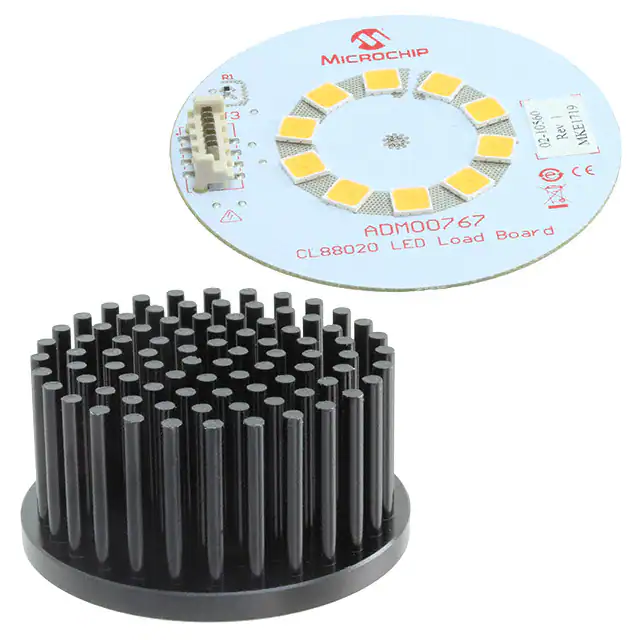

ADM00767EVAL BOARD FOR CL88020 |
5 |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | Board(s), Accessories | CL88020 |
|
DC1055AEVAL BOARD FOR LTC3219 |
1 |
|
Datasheet | - | Box | Active | 250mA | 9 Non-Isolated Outputs | - | Dimmable | 2.9V ~ 5.5V | Board(s) | LTC3219 |
|
DC1265A-BEVAL BOARD FOR LTC3220-1 |
0 |
|
Datasheet | - | Box | Active | 20mA | 18 Non-Isolated Outputs | - | Dimmable | 2.9V ~ 5.5V | Board(s) | LTC3220-1 |
|
REFICL5102U52WCCTOBO1EVAL BOARD FOR ICL5102 |
3 |
|
Datasheet | - | Bulk | Active | - | 1 Non-Isolated Output | 20V ~ 52V | - | 198 ~ 256 VAC | Board(s) | ICL5102 |
|
DC1612A-AEVAL BOARD FOR LT3519-1 |
3 |
|
Datasheet | - | Box | Active | 150mA | 1 Non-Isolated Output | - | Dimmable | 6V ~ 24V | Board(s) | LT3519-1 |
|
DC810AEVAL BOARD FOR LTC3453 |
1 |
|
Datasheet | - | Box | Active | 150mA | 1 Non-Isolated Output | - | - | 2.7V ~ 4.2V | Board(s) | LTC3453 |
|
DC841AEVAL BOARD FOR LT3477 |
1 |
|
Datasheet | - | Box | Active | 330mA | 1 Non-Isolated Output | 36V | - | 2.7V ~ 16V | Board(s) | LT3477 |
|
DC842AEVAL BOARD FOR LT3474 |
0 |
|
Datasheet | - | Box | Active | - | 1 Non-Isolated Output | - | Dimmable | 4V ~ 36V | Board(s) | LT3474 |
|

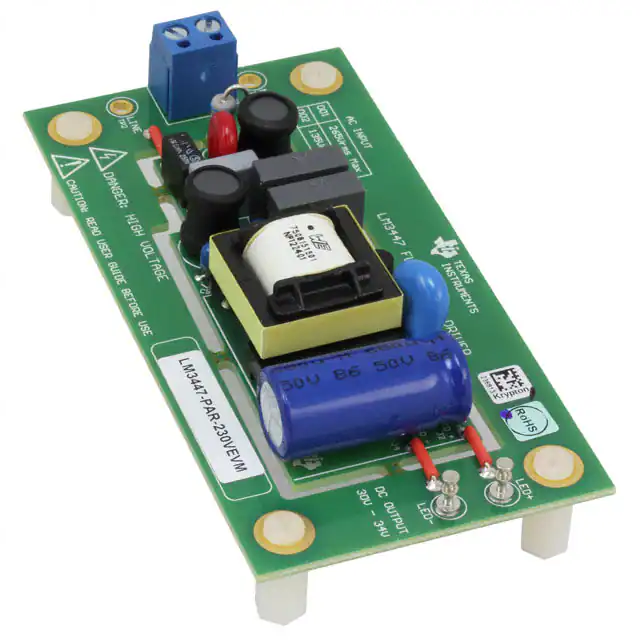

LM3447-PAR-230VEVMEVAL BOARD FOR LM3447 |
8 |
|
Datasheet | - | Box | Active | 500mA | 1 Isolated Output | 30V ~ 34V | Dimmable | 180 ~ 265 VAC | Board(s) | LM3447 |
|
LM2756TMEVEVAL BOARD FOR LM2756 |
5 |
|
Datasheet | - | Box | Active | 20mA | 8 Non-Isolated Outputs | - | Dimmable | 2.7V ~ 5.5V | Board(s) | LM2756 |
|
TPS92010EVM-631EVAL BOARD FOR TPS92010 |
5 |
|
Datasheet | TrueDrive™ | Box | Active | 325mA | 1 Isolated Output | 14V ~ 17V | - | 185 ~ 265 VAC | Board(s) | TPS92010 |
|

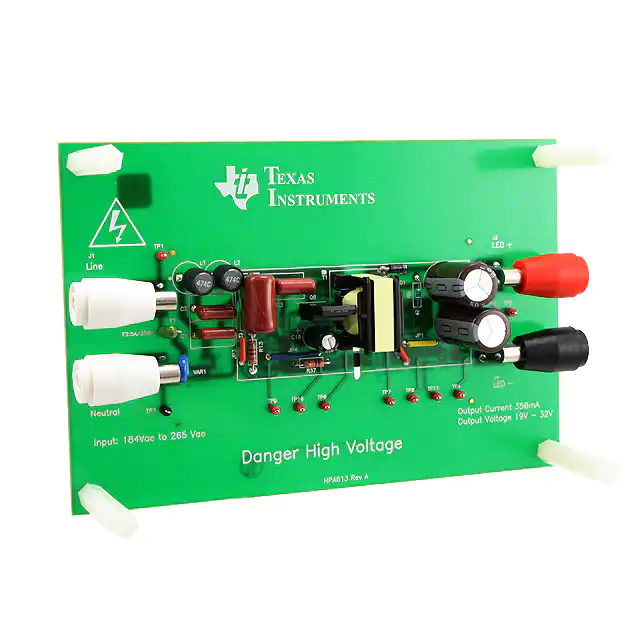

TPS92210EVM-613EVAL BOARD FOR TPS92210 |
4 |
|
Datasheet | - | Bulk | Active | 350mA | 1 Isolated Output | 19V ~ 32V | Dimmable | 184 ~ 265 VAC | Board(s) | TPS92210 |
