LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AL8400QEV1EVAL BOARD FOR AL8400Q |
5 |
|
Datasheet | - | Box | Active | 150mA | 1 Non-Isolated Output | - | Dimmable | 4V ~ 18V | Board(s) | AL8400Q |
|
REFTWBCR60155V05ATOBO1EVAL BOARD FOR BCR601 |
2 |
|
Datasheet | - | Bulk | Active | 550mA | 1 Non-Isolated Output | 5V ~ 53V | Dimmable | 8V ~ 60V | Board(s) | BCR601 |
|
TLD5099EPVB2GEVALKTOBO1EVAL BOARD FOR TLD5099EP |
3 |
|
Datasheet | - | Bulk | Active | 350mA | 1 Non-Isolated Output | 48V | - | 8V ~ 27V | Board(s) | TLD5099EP |
|
TLD5099EPSEPICEVALKTOBO1EVAL BOARD FOR TLD5099EP |
2 |
|
Datasheet | - | Bulk | Active | 1A | 1 Non-Isolated Output | 6V ~ 23V | Dimmable | 8V ~ 27V | Board(s) | TLD5099EP |
|
|
TLD5099EPB2BEVALKITTOBO1EVAL BOARD FOR TLD5099EP |
2 |
|
Datasheet | - | Bulk | Active | 1A | 1 Non-Isolated Output | 6V ~ 23V | Dimmable | 8V ~ 27V | Board(s) | TLD5099EP |
|

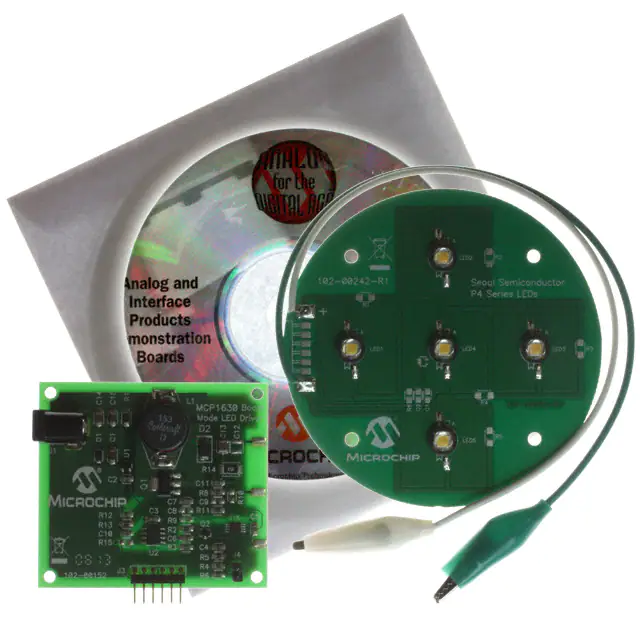

MCP1630DM-LED2EVAL BOARD FOR MCP1630 |
4 |
|
Datasheet | - | Box | Active | 700mA or 350mA | 1 Non-Isolated Output | 40V | Dimmable | 9V ~ 16V | Board(s) | MCP1630 |
|
EVAL-IBD002-35WEVAL BOARD FOR HVLED002 |
9 |
|
Datasheet | - | Bulk | Active | 700mA | 11 Non-Isolated Outputs | 24V ~ 48V | Dimmable | 48V ~ 60V | Board(s) | HVLED002 |
|
TPS92411EVM-001EVAL BOARD FOR TPS92411P |
3 |
|
Datasheet | - | Tray | Active | - | 3 Non-Isolated Outputs | 20V, 40V, 80V | Dimmable | 90 ~ 135 VAC | Board(s) | TPS92411P |
|

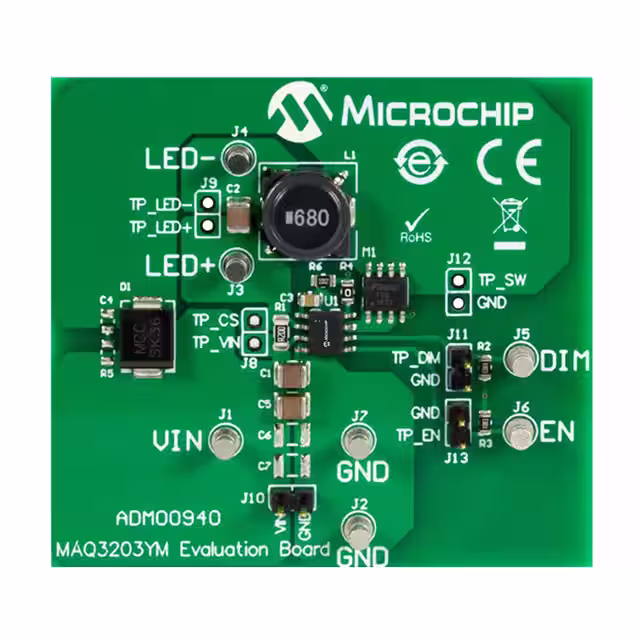

ADM00940EVAL BOARD FOR MAQ3203 |
2 |
|
Datasheet | - | Bulk | Active | - | 1 Non-Isolated Output | - | Dimmable | 4.5V ~ 42V | Board(s) | MAQ3203 |
|
TPS61194Q1EVMEVAL BOARD FOR TPS61194-Q1 |
6 |
|
Datasheet | - | Bulk | Active | 100mA | 4 Non-Isolated Outputs | 45V | - | 4.5V ~ 40V | Board(s) | TPS61194-Q1 |
|

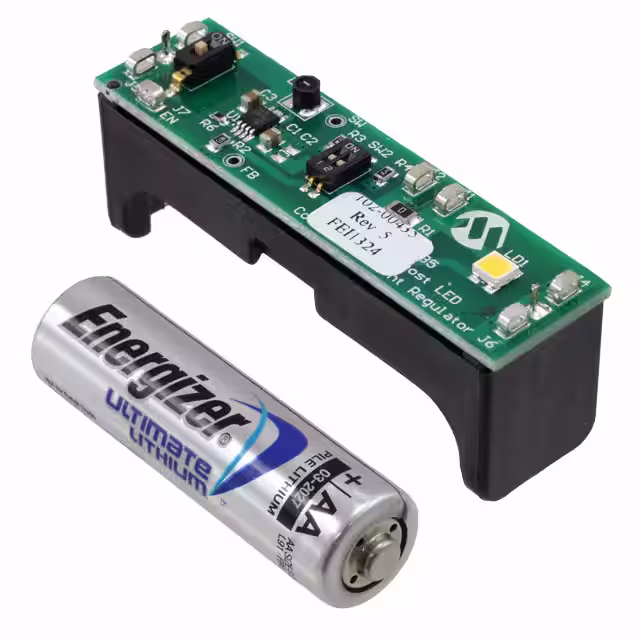

ADM00435EVAL BOARD FOR MCP1643 |
2 |
|
Datasheet | - | Box | Active | 100mA, 75mA, 50mA or 25mA | 1 Non-Isolated Output | - | Dimmable | 0.35V ~ 2.5V | Board(s) | MCP1643 |
|
DC2257AEVAL BOARD FOR LTM8005 |
25 |
|
Datasheet | µModule® | Box | Active | 1.2A | 1 Non-Isolated Output | 35V | Dimmable | 6V ~ 27V | Board(s) | LTM8005 |
|
STEVAL-LLL010V1EVAL BOARD FOR LED8102S |
3 |
|
Datasheet | - | Bulk | Active | - | 8 Non-Isolated Outputs | - | Dimmable | 5V, USB | Board(s) | LED8102S, STM32F042 |
|
LM3464EVAL/NOPBEVAL BOARD FOR LM3464 |
2 |
|
Datasheet | - | Bulk | Active | 350mA | 4 Non-Isolated Outputs | - | - | 12V ~ 80V | Board(s) | LM3464 |
|
DC1205AEVAL BOARD FOR LT3592 |
1 |
|
Datasheet | - | Bulk | Active | 500mA | 1 Non-Isolated Output | 4.6V | Dimmable | 6V ~ 36V | Board(s) | LT3592 |
|
DC1224AEVAL BOARD FOR LT3593 |
1 |
|
Datasheet | - | Box | Active | 20mA | 1 Non-Isolated Output | 40V | - | 3V ~ 5V | Board(s) | LT3593 |
|
DC1019AEVAL BOARD FOR LT3497 |
1 |
|
Datasheet | - | Box | Active | 20mA | 2 Non-Isolated Outputs | 19.5V | Dimmable | 3V ~ 10V | Board(s) | LT3497 |
|
TPS92411EVM-002EVAL BOARD FOR TPS92411P |
2 |
|
Datasheet | - | Box | Active | - | 3 Non-Isolated Outputs | 40V, 80V, 160V | Dimmable | 190 ~ 260 VAC | Board(s) | TPS92411P |
|

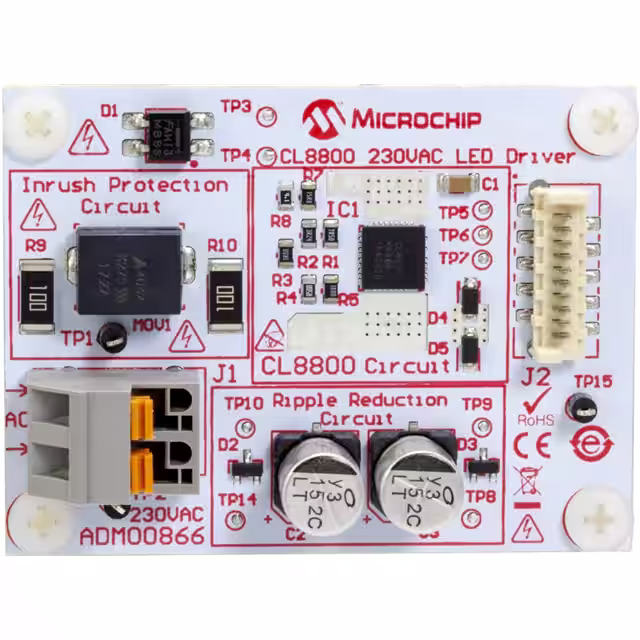

ADM00866EVAL BOARD FOR CL8800 |
3 |
|
Datasheet | - | Bulk | Active | 130mA | 1 Non-Isolated Output | - | - | 195.5 ~ 264.5 VAC | Board(s) | CL8800 |
|
LM3464AEVAL/NOPBEVAL BOARD FOR LM3464A |
2 |
|
Datasheet | - | Box | Active | 350mA | 4 Non-Isolated Outputs | 48V | - | 12V ~ 95V | Board(s) | LM3464A |
