LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC1279AEVAL BOARD FOR LT3517 |
0 |
|
Datasheet | - | Box | Active | 330mA | 1 Non-Isolated Output | - | Dimmable | 3V ~ 30V | Board(s) | LT3517 |
|
DC923AEVAL BOARD FOR LT3475 |
0 |
|
Datasheet | - | Box | Active | 1.5A | 2 Non-Isolated Outputs | - | Dimmable | 4V ~ 36V | Board(s) | LT3475 |
|
BOOST-LP5569EVMEVAL BOARD FOR LP5569 |
13 |
|
Datasheet | - | Bulk | Active | 25.5mA | 9 Non-Isolated Outputs | - | Dimmable | 2.5V ~ 5.5V | Board(s) | LP5569 |
|
LM36922EVMEVAL BOARD FOR LM36922 |
4 |
|
Datasheet | - | Box | Active | - | 2 Non-Isolated Outputs | - | - | 2.5V ~ 5.5V | Board(s) | LM36922 |
|
LM3429BKBSTEVAL/NOPBEVAL BOARD FOR LM3429 |
2 |
|
Datasheet | - | Box | Active | 1A | 1 Non-Isolated Output | - | Dimmable | 10V ~ 70V | Board(s) | LM3429 |
|
LP5521TMEVEVAL BOARD FOR LP5521 |
2 |
|
Datasheet | - | Bulk | Active | - | 3 Non-Isolated Outputs | - | Dimmable | 2.8V ~ 5.5V | Board(s), Cable(s) | LP5521 |
|
LM3450AEV120V30/NOPBEVAL BOARD FOR LM3450A |
2 |
|
Datasheet | - | Box | Active | 700mA | 1 Isolated Output | 50V | Dimmable | 90 ~ 135 VAC | Board(s) | LM3450A |
|
LP55281RLEV/NOPBEVAL BOARD FOR LP55281 |
2 |
|
Datasheet | - | Box | Active | 400mA | 12 Non-Isolated Outputs | 5.3V | Dimmable | 2.7V ~ 5.5V | Board(s), Cable(s) | LP55281 |
|
STEVAL-LLL012V1EVAL BOARD FOR HVLED001B |
5 |
|
Datasheet | - | Bulk | Active | 700mA | 1 Non-Isolated Output | 24V ~ 48V | Dimmable | 3.3V | Board(s) | HVLED001B |
|

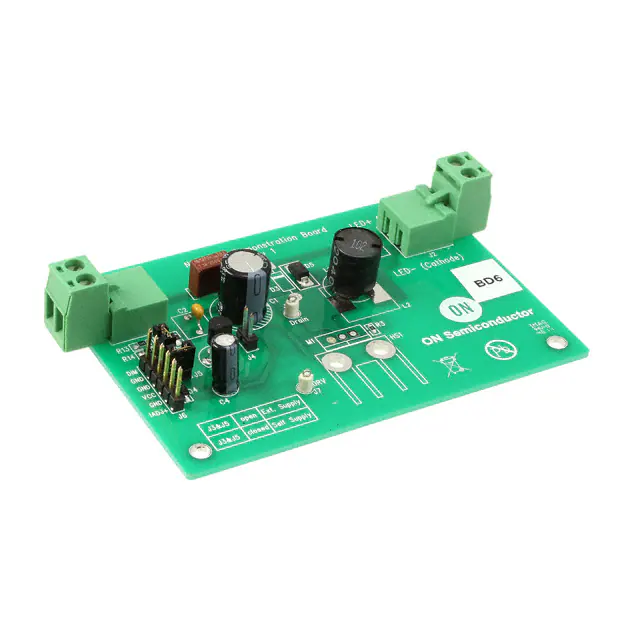

NCL30105GEVBEVAL BOARD FOR NCL30105 |
2 |
|
Datasheet | - | Box | Active | 350mA | 1 Non-Isolated Output | 60V | - | - | Board(s) | NCL30105 |
|
TPS92518EVM-878EVAL BOARD FOR TPS92518 |
2 |
|
Datasheet | - | Box | Active | 538mA | 2 Non-Isolated Outputs | 65V | Dimmable | 6.5V ~ 65V | Board(s) | TPS92518 |
|
REFXDPL8221U100WTOBO1EVAL BOARD FOR XDPL8221 |
2 |
|
Datasheet | - | Bulk | Active | 2.5A | 1 Isolated Output | 16V ~ 48V | Dimmable | 90 ~ 305 VAC, 90V ~ 305V | Board(s) | XDPL8221 |
|
DC1288AEVAL BOARD FOR LT3496 |
2 |
|
Datasheet | - | Box | Active | 200mA | 1 Non-Isolated Output | - | Dimmable | 8V ~ 16V | Board(s) | LT3496 |
|
DC949A-BEVAL BOARD FOR LT3478 |
1 |
|
Datasheet | - | Box | Active | 350mA | 1 Non-Isolated Output | 36V | Dimmable | 2.8V ~ 25V | Board(s) | LT3478 |
|
EVL012LEDEVAL BOARD FOR STNRG012 |
4 |
|
Datasheet | - | Bulk | Active | 3.6A | 1 Isolated Output | 36V ~ 56V | Dimmable | 90 ~ 277 VAC | Board(s) | STNRG012 |
|
DC2630AEVAL BOARD FOR LT3966 |
6 |
|
Datasheet | - | Bulk | Active | 1.6A | 4 Non-Isolated Outputs | 50V | Dimmable | 9V ~ 18V | Board(s) | LT3966 |
|
DC1285AEVAL BOARD FOR LT3598 |
2 |
|
Datasheet | - | Box | Active | 20mA | 6 Non-Isolated Outputs | 44V | Dimmable | 3.2V ~ 5.5V | Board(s) | LT3598 |
|
DC1772AEVAL BOARD FOR LT3761 |
2 |
|
Datasheet | - | Box | Active | 1A | 1 Non-Isolated Output | 60V | Dimmable | 8V ~ 60V | Board(s) | LT3761 |
|
DC2247AEVAL BOARD FOR LT3922 |
2 |
|
Datasheet | - | Box | Active | 330mA | 1 Non-Isolated Output | 34V | Dimmable | 7V ~ 28V | Board(s) | LT3922 |
|
DC2342AEVAL BOARD FOR LT3762 |
2 |
|
Datasheet | - | Box | Active | 2A | 1 Non-Isolated Output | 32V | Dimmable | 4V ~ 28V | Board(s) | LT3762 |
