LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS61163AEVM-564EVAL BOARD FOR TPS61163A |
2 |
|
Datasheet | - | Box | Active | 60mA | 2 Non-Isolated Outputs | - | Dimmable | 2.7V ~ 6.5V | Board(s) | TPS61163A |
|
TPS61081EVM-147EVAL BOARD FOR TPS61081 |
3 |
|
Datasheet | - | Box | Active | 250mA | 1 Non-Isolated Output | 12V | - | 2.5V ~ 6V | Board(s) | TPS61081 |
|
REFICL8820LED43WJTTOBO1EVAL BOARD FOR ICL8820 |
3 |
|
Datasheet | - | Bulk | Active | - | 1 Isolated Output | 52V | Dimmable | 90 ~ 305 VAC | Board(s) | ICL8820 |
|
AL9901EV1EVAL BOARD FOR AL9901 |
5 |
|
- |
- | Box | Active | 140mA | 1 Non-Isolated Output | 51V | Dimmable | 100 ~ 240 VAC | Board(s) | AL9901 |
|
AL9901EV2EVAL BOARD FOR AL9901 |
4 |
|
Datasheet | - | Box | Active | 140mA | 1 Non-Isolated Output | 51V | Dimmable | 100 ~ 240 VAC | Board(s) | AL9901 |
|
REFILD8150DC15ASMDTOBO1EVAL BOARD FOR ILD8150 |
5 |
|
Datasheet | - | Bulk | Active | 1.5A | 1 Non-Isolated Output | - | Dimmable | 8V ~ 80V | Board(s) | ILD8150 |
|
STEVAL-ILL072V1EVAL BOARD FOR ALED6001 |
3 |
|
Datasheet | - | Box | Active | 1A | 1 Non-Isolated Output | - | Dimmable | 8V ~ 24V | Board(s) | ALED6001 |
|
REFTWILD8150E60V1ATOBO1EVAL BOARD FOR ILD8150E |
3 |
|
Datasheet | - | Bulk | Active | 1.05A | 2 Non-Isolated Outputs | 10V ~ 56V | Dimmable | 16V ~ 70V | Board(s) | ILD8150E |
|
REFILD8150DC15ATOBO1EVAL BOARD FOR ILD8150 |
20 |
|
Datasheet | - | Box | Active | 1.5A | 1 Non-Isolated Output | - | Dimmable | 8V ~ 80V | Board(s) | ILD8150 |
|
TLD5099EPVSEPICEVALTOBO1EVAL BOARD FOR TLD5099EP |
2 |
|
Datasheet | - | Bulk | Active | 1A | 1 Non-Isolated Output | 12V | - | 8V ~ 27V | Board(s) | TLD5099EP |
|
TLD5099EPB2GEVALKITTOBO1EVAL BOARD FOR TLD5099EP |
2 |
|
Datasheet | - | Bulk | Active | 350mA | 1 Non-Isolated Output | 33V ~ 47.4V | Dimmable | 8V ~ 27V | Board(s) | TLD5099EP |
|
DC1511A-BEVAL BOARD FOR LTM8042-1 |
1 |
|
Datasheet | - | Box | Active | 350mA | 1 Non-Isolated Output | 36V | Dimmable | 3V ~ 30V | Board(s) | LTM8042-1 |
|
DC1274AEVAL BOARD FOR LTM8040 |
2 |
|
Datasheet | µModule® | Box | Active | 1A | 1 Non-Isolated Output | 13V | Dimmable | 4V ~ 36V | Board(s) | LTM8040 |
|
DC1511A-AEVAL BOARD FOR LTM8042 |
1 |
|
Datasheet | - | Box | Active | 1A | 1 Non-Isolated Output | 36V | Dimmable | 3V ~ 30V | Board(s) | LTM8042 |
|
STEVAL-LLL011V1EVAL BOARD FOR LED1202 |
6 |
|
Datasheet | - | Bulk | Active | - | 12 Non-Isolated Outputs | - | - | - | Board(s) | LED1202 |
|

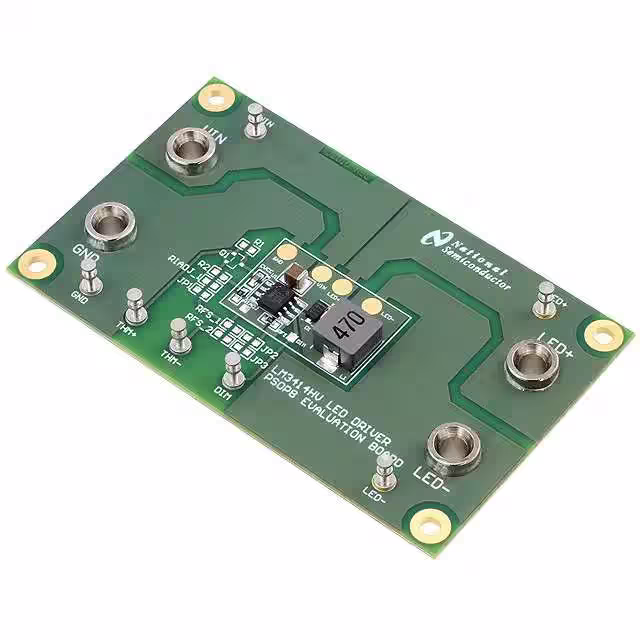

LM3414HVMREVAL/NOPBEVAL BOARD FOR LM3414HVMR |
3 |
|
Datasheet | - | Box | Active | 1A | 1 Non-Isolated Output | - | - | 4.5V ~ 65V | Board(s) | LM3414HVMR |
|
DC1166AEVAL BOARD FOR LT3590 |
1 |
|
Datasheet | - | Box | Active | 50mA | 1 Non-Isolated Output | - | - | 4.5V ~ 55V | Board(s) | LT3590 |
|
DC905AEVAL BOARD FOR LT3491 |
1 |
|
Datasheet | - | Box | Active | 20mA | 1 Non-Isolated Output | 20.6V | Dimmable | 3V ~ 5V | Board(s) | LT3491 |
|
DC1124AEVAL BOARD FOR LT3591 |
1 |
|
Datasheet | - | Box | Active | 20mA | 1 Non-Isolated Output | 42V | Dimmable | 3V ~ 9V | Board(s) | LT3591 |
|
DC875BEVAL BOARD FOR LTC3454 |
0 |
|
Datasheet | - | Box | Active | 1A | 1 Non-Isolated Output | - | Dimmable | 2.7V ~ 5.5V | Board(s) | LTC3454 |
