LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVAL-LT8376-AZEVAL BOARD FOR LT8376 |
5 |
|
Datasheet | - | Box | Active | - | - | - | - | - | Board(s) | LT8376 |
|
IFBOARDDPGEN2TOBO1EVAL BOARD FOR XDPL8220 |
10 |
|
Datasheet | - | Bulk | Active | 1.5A | 1 Isolated Output | 16V ~ 48V | Dimmable | 90 ~ 305 VAC | Board(s) | XDPL8220 |
|
LP5811-10EVMEVAL BOARD FOR LP5810 LP5811 |
3 |
|
Datasheet | - | Box | Active | - | 4 Non-Isolated Outputs | - | Dimmable | 3.3V | Board(s), Cable(s) | LP5810, LP5811 |
|
|
LP5861TEVMEVAL BOARD FOR LP5861T |
2 |
|
Datasheet | - | Box | Active | - | 18 Non-Isolated Outputs | - | Dimmable | 2.7V ~ 5.5V | Board(s), Cable(s) | LP5861T |
|

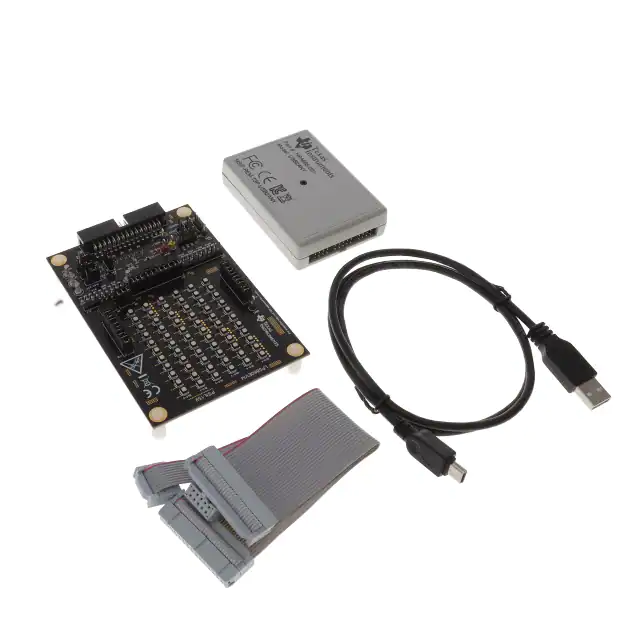

LP5860EVMEVAL BOARD FOR LP5860 |
5 |
|
Datasheet | - | Box | Active | - | 18 Non-Isolated Outputs | - | Dimmable | 2.7V ~ 5.5V | Board(s), Cable(s) | LP5860 |
|
|
LP5891EVMEVAL BOARD FOR LP5891 |
3 |
|
Datasheet | - | Box | Active | 20mA | 48 Non-Isolated Outputs | - | Dimmable | 2.5V ~ 5.5V | Board(s) | LP5891 |
|
DEMOBCR60160VIVCTRLTOBO1EVAL BOARD FOR BCR601 |
6 |
|
Datasheet | - | Bulk | Active | 500mA | 1 Isolated Output | - | Dimmable | 8V ~ 60V | Board(s) | BCR601 |
|
DEMOBCR60260VICTRLTOBO1EVAL BOARD FOR BCR602 |
9 |
|
Datasheet | - | Bulk | Active | 200mA | 1 Non-Isolated Output | - | Dimmable | 8V ~ 60V | Board(s) | BCR602 |
|
STEVAL-ILL051V2EVAL BOARD FOR LED2000 |
7 |
|
Datasheet | - | Bulk | Active | 3A | 1 Non-Isolated Output | - | Dimmable | 3V ~ 18V | Board(s) | LED2000 |
|
STEVAL-ILL089V1EVAL BOARD FOR ALED6000 |
9 |
|
Datasheet | - | Bulk | Active | 1A | 1 Non-Isolated Output | - | Dimmable | 4.5V ~ 60V | Board(s) | ALED6000 |
|
STEVAL-ILL063V1EVAL BOARD FOR LED5000 |
7 |
|
Datasheet | - | Box | Active | 3A | 1 Non-Isolated Output | - | Dimmable | 5.5V ~ 48V | Board(s) | LED5000 |
|
STEVAL-ILL065V1EVAL BOARD FOR LED5000 |
8 |
|
Datasheet | - | Box | Active | 3A | 1 Non-Isolated Output | - | Dimmable | 5.5V ~ 48V | Board(s) | LED5000 |
|
PAM2804EV1EVAL BOARD FOR PAM2804 |
10 |
|
Datasheet | - | Box | Active | 1A | 1 Non-Isolated Output | - | - | 2.5V ~ 6V | Board(s) | PAM2804 |
|
PAM2803EV1EVAL BOARD FOR PAM2803 |
6 |
|
Datasheet | - | Box | Active | 1A | 1 Non-Isolated Output | - | - | - | Board(s) | PAM2803 |
|
STEVAL-ILL049V1EVAL BOARD FOR LED6001 |
2 |
|
Datasheet | - | Box | Active | 350mA | 1 Non-Isolated Output | 40V | - | 6V ~ 24V | Board(s) | LED6001 |
|
TPS92560MR16BSTEVMEVAL BOARD FOR TPS92560 |
6 |
|
Datasheet | - | Box | Active | - | 1 Non-Isolated Output | 20V | - | 6 ~ 14 VAC, 3V ~ 18V | Board(s) | TPS92560 |
|
REFICL8810LED42WPSRTOBO1EVAL BOARD FOR ICL8810 |
2 |
|
Datasheet | - | Bulk | Active | - | 1 Non-Isolated Output | 52V | Dimmable | 90 ~ 305 VAC | Board(s) | ICL8810 |
|
AL9910AEV1EVAL BOARD FOR AL9910A |
5 |
|
Datasheet | - | Box | Active | 140mA | 1 Non-Isolated Output | 51V | - | 100 ~ 240 VAC | Board(s) | AL9910A |
|
PAM2841EV1EVAL BOARD FOR PAM2841 |
5 |
|
Datasheet | - | Box | Active | 20mA | 1 Non-Isolated Output | - | - | 2.5V ~ 5.5V | Board(s) | PAM2841 |
|

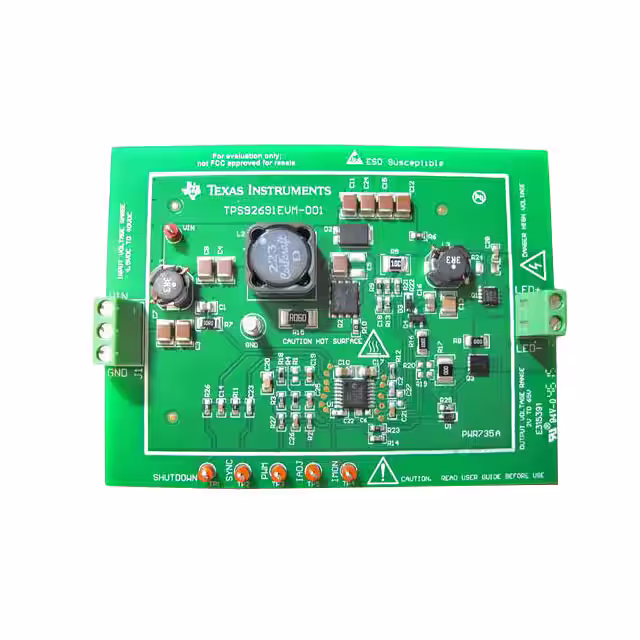

TPS92691EVM-001EVAL BOARD FOR TPS92691-Q1 |
21 |
|
Datasheet | - | Bulk | Active | 300mA | 1 Non-Isolated Output | 2V ~ 65V | Dimmable | 7V ~ 40V | Board(s) | TPS92691-Q1 |
