LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC2013AEVAL BOARD FOR LT3952A |
2 |
|
Datasheet | - | Box | Active | 330mA | 1 Non-Isolated Output | 50V | Dimmable | 5V ~ 36V | Board(s) | LT3952A |
|
DC1666AEVAL BOARD FOR LT3791 |
1 |
|
Datasheet | - | Bulk | Active | 2A | 1 Non-Isolated Output | 9.5V ~ 25.5V | Dimmable | 4.7V ~ 60V | Board(s) | LT3791 |
|
DC1327BEVAL BOARD FOR LT3599 |
1 |
|
Datasheet | - | Box | Active | 80mA | 4 Non-Isolated Outputs | 44V | Dimmable | 3.1V ~ 5.5V | Board(s) | LT3599 |
|
DC1521AEVAL BOARD FOR LT3956 |
1 |
|
Datasheet | - | Box | Active | 370mA | 1 Non-Isolated Output | 67V | Dimmable | 6V ~ 67V | Board(s) | LT3956 |
|
DC1706AEVAL BOARD FOR LT3796 |
1 |
|
Datasheet | - | Box | Active | 400mA | 1 Non-Isolated Output | 85V | Dimmable | 8V ~ 100V | Board(s) | LT3796 |
|
DC2345AEVAL BOARD FOR LT8391 |
1 |
|
Datasheet | - | Box | Active | 2A | 1 Non-Isolated Output | 25V | - | 4V ~ 60V | Board(s) | LT8391 |
|
DC2218AEVAL BOARD FOR LT3965 |
1 |
|
Datasheet | - | Box | Active | 500mA | 16 Non-Isolated Outputs | - | Dimmable | 8V ~ 36V | Board(s) | LT3965 |
|
DC1930AEVAL BOARD FOR LT3744 |
1 |
|
Datasheet | - | Box | Active | 12A | 3 Non-Isolated Outputs | 6.05V | Dimmable | 5.5V ~ 36V | Board(s) | LT3744 |
|
DC1784BEVAL BOARD FOR LT3797 |
3 |
|
Datasheet | - | Box | Active | 1A | 3 Non-Isolated Outputs | 50V | Dimmable | 2.5V ~ 40V | Board(s) | LT3797 |
|
DC1573AEVAL BOARD FOR LT3760 |
2 |
|
Datasheet | - | Box | Active | 100mA | 8 Non-Isolated Outputs | 45V | Dimmable | 20V ~ 28V | Board(s) | LT3760 |
|
DC1595AEVAL BOARD FOR LT3799 |
1 |
|
Datasheet | - | Box | Active | 1A | 1 Isolated Output | 25V | Dimmable | 90 ~ 270 VAC | Board(s) | LT3799 |
|
DC2286AEVAL BOARD FOR LT3932 |
1 |
|
Datasheet | - | Box | Active | 1A | 2 Non-Isolated Outputs | 8V | Dimmable | 9V ~ 36V | Board(s) | LT3932 |
|
DC2361AEVAL BOARD FOR LT3952 |
1 |
|
Datasheet | - | Box | Active | 330mA | 1 Non-Isolated Output | 43.5V | Dimmable | 8V ~ 28V | Board(s) | LT3952 |
|
|
TPS92629Q1EVMEVAL BOARD FOR TPS92629-Q1 |
7 |
|
Datasheet | - | Box | Active | 250mA | 1 Non-Isolated Output | - | Dimmable | 9V ~ 20V | Board(s) | TPS92629-Q1 |
|
LM3549SQEV/NOPBEVAL BOARD FOR LM3549 |
4 |
|
Datasheet | - | Bulk | Active | 700mA | 1 Non-Isolated Output | - | - | - | Board(s) | LM3549 |
|
LM3644EVMEVAL BOARD FOR LM3644 |
4 |
|
Datasheet | - | Box | Active | - | 2 Non-Isolated Outputs | - | - | 2.5V ~ 5.5V | Board(s) | LM3644 |
|
LM3697EVMEVAL BOARD FOR LM3697 |
3 |
|
Datasheet | - | Box | Active | - | 3 Non-Isolated Outputs | - | - | 2.7V ~ 5.5V | Board(s) | LM3697 |
|
LM3553SDEVEVAL BOARD FOR LM3553 |
2 |
|
Datasheet | - | Box | Active | 1.2A | 1 Non-Isolated Output | - | - | 2.7V ~ 5.5V | Board(s) | LM3553 |
|

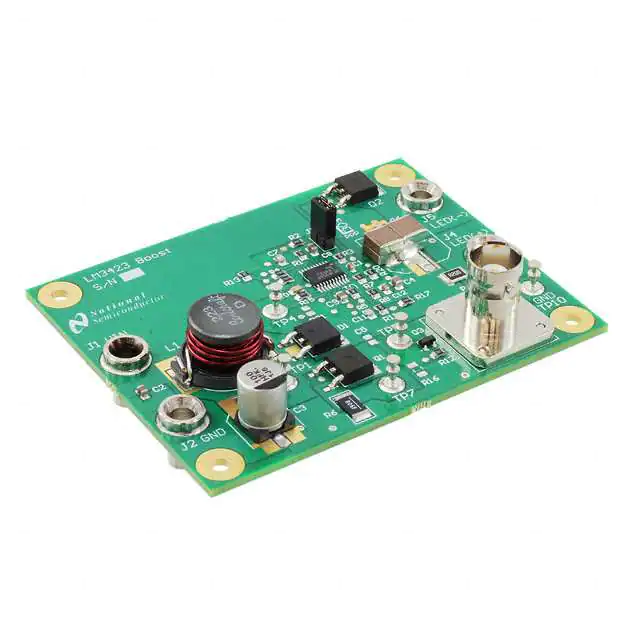

LM3423BS2LYEV/NOPBEVAL BOARD FOR LM3423 |
2 |
|
Datasheet | - | Bulk | Active | 700mA | 1 Non-Isolated Output | - | Dimmable | 10V ~ 26V | Board(s) | LM3423 |
|
LM3630EVMEVAL BOARD FOR LM3630 |
2 |
|
Datasheet | - | Box | Active | - | - | - | Dimmable | 2.3V ~ 5.5V | Board(s), Cable(s) | LM3630 |
