LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM3447-A19-230VEVMEVAL BOARD FOR LM3447 |
4 |
|
Datasheet | - | Box | Active | 275mA | 1 Isolated Output | 30V | Dimmable | 190 ~ 265 VAC | Board(s) | LM3447 |
|

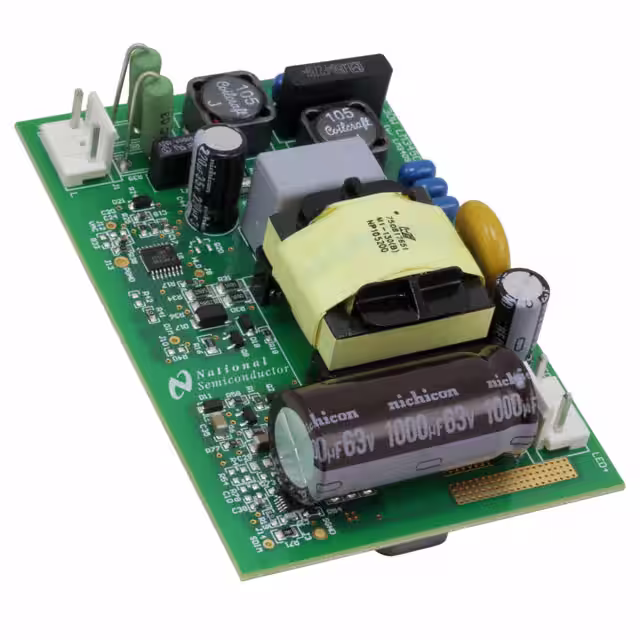

LM3450AEV230V30/NOPBEVAL BOARD FOR LM3450A |
3 |
|
Datasheet | - | Box | Active | 700mA | 1 Isolated Output | 50V | Dimmable | 180 ~ 265 VAC | Board(s) | LM3450A |
|
LM3639AYFQEVMEVAL BOARD FOR LM3639A |
3 |
|
Datasheet | - | Box | Active | - | 4 Non-Isolated Outputs | - | Dimmable | 2.5V ~ 5.5V | Board(s) | LM3639A |
|

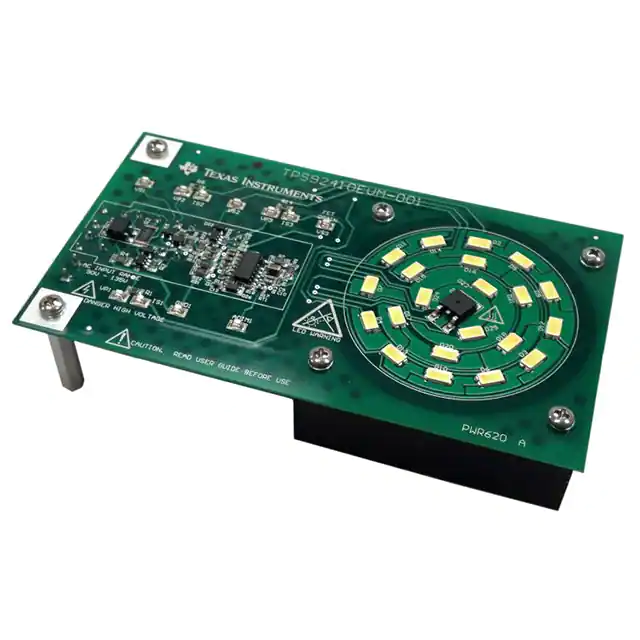

TPS92410EVM-001EVAL BOARD FOR TPS92410 TPS92411 |
3 |
|
Datasheet | - | Box | Active | - | 3 Non-Isolated Outputs | 20V, 40V, 80V | Dimmable | 90 ~ 135 VAC | Board(s) | TPS92410, TPS92411 |
|

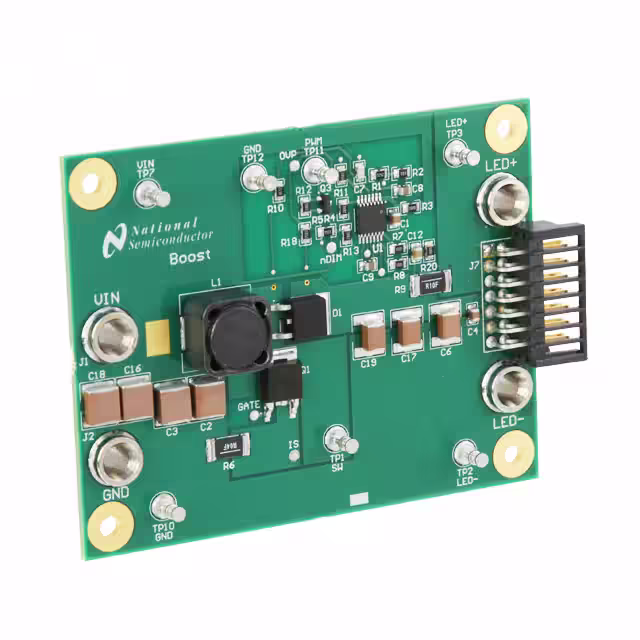

LM3429BSTEVAL/NOPBEVAL BOARD FOR LM3429 |
2 |
|
Datasheet | - | Box | Active | 1A | 1 Non-Isolated Output | - | Dimmable | 10V ~ 26V | Board(s) | LM3429 |
|
UCC28810EVM-003EVAL BOARD FOR UCC28810 |
2 |
|
Datasheet | - | Bulk | Active | 500mA | 4 Isolated Outputs | - | Dimmable | 90 ~ 265 VAC | Board(s) | UCC28810 |
|

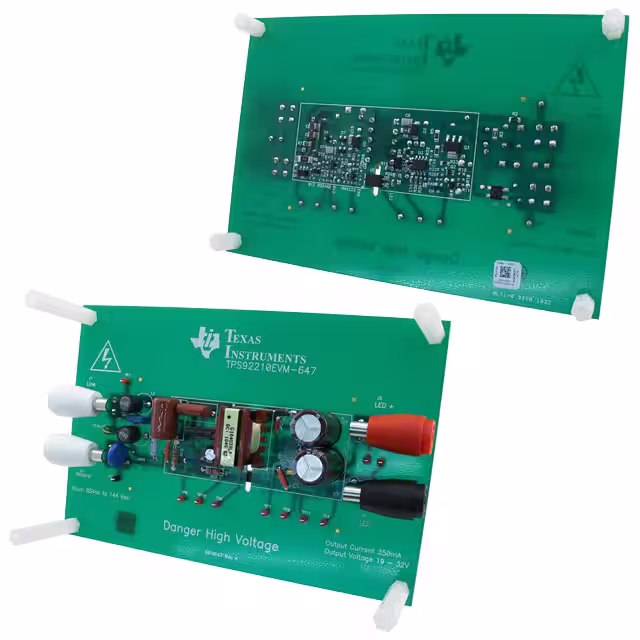

TPS92210EVM-647EVAL BOARD FOR TPS92210 |
2 |
|
Datasheet | - | Bulk | Active | 350mA | 1 Isolated Output | 19V ~ 32V | Dimmable | 85 ~ 144 VAC | Board(s) | TPS92210 |
|

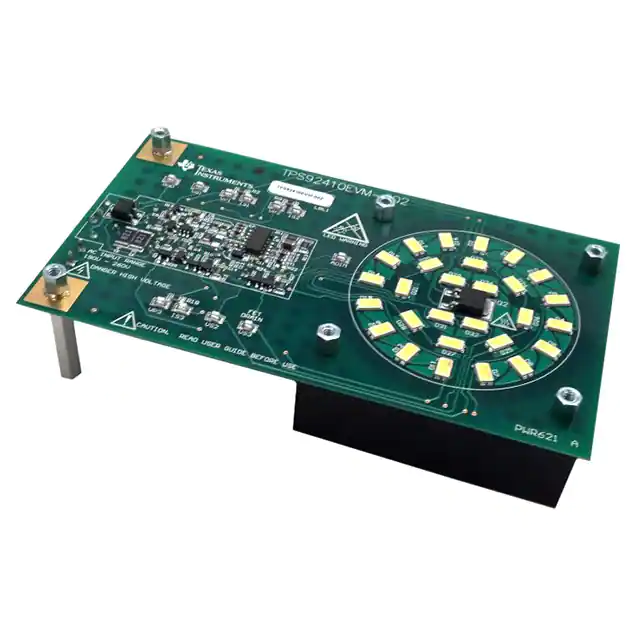

TPS92410EVM-002EVAL BOARD FOR TPS92410 TPS92411 |
2 |
|
Datasheet | - | Box | Active | - | 3 Non-Isolated Outputs | 40V, 80V, 160V | Dimmable | 190 ~ 260 VAC | Board(s) | TPS92410, TPS92411 |
|

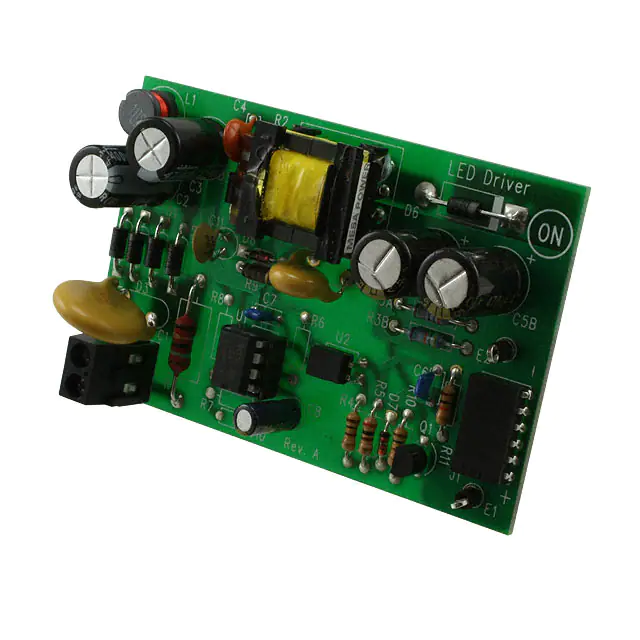

NCP1028LEDGEVBEVAL BOARD FOR NCP1028 |
3 |
|
Datasheet | - | Bulk | Active | 720mA | 1 Isolated Output | 18V | - | 90 ~ 265 VAC | Board(s) | NCP1028 |
|

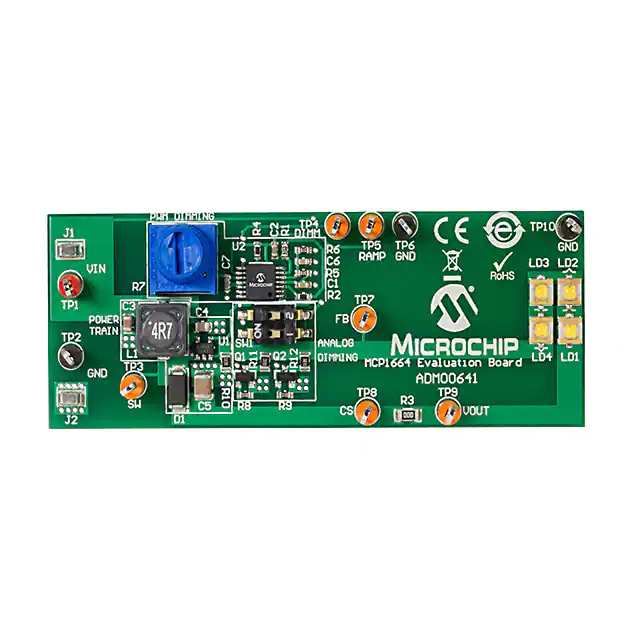

ADM00641EVAL BOARD FOR MCP1664 |
2 |
|
Datasheet | - | Box | Active | 270mA | 1 Non-Isolated Output | - | Dimmable | 2.4V ~ 5.5V | Board(s) | MCP1664 |
|
BPLUSOFFLOADBOARDTOBO1EVAL BOARD FOR TLD1114-1EP |
3 |
|
Datasheet | - | Bulk | Active | 360mA | 1 Non-Isolated Output | 5V ~ 7V | Dimmable | 8V ~ 16V | Board(s) | TLD1114-1EP |
|

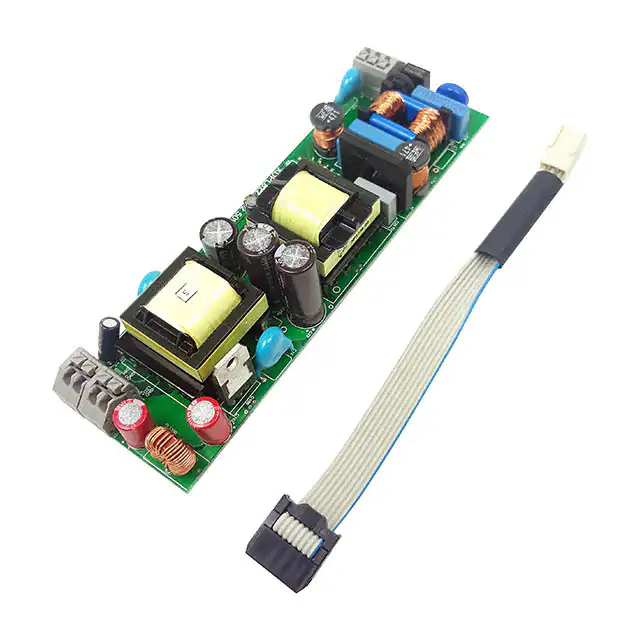

REFXDPL8221U50WTOBO1EVAL BOARD FOR XDPL8221 |
2 |
|
Datasheet | - | Bulk | Active | 1.5A | 1 Isolated Output | 16V ~ 48V | Dimmable | 90 ~ 305 VAC, 90V ~ 430V | Board(s) | XDPL8221 |
|
DC949A-AEVAL BOARD FOR LT3478-1 |
3 |
|
Datasheet | - | Box | Active | 350mA | 1 Non-Isolated Output | 36V | Dimmable | 2.8V ~ 25V | Board(s) | LT3478-1 |
|
DC1827AEVAL BOARD FOR LT3795 |
0 |
|
Datasheet | - | Box | Active | 400mA | 1 Non-Isolated Output | 87V | Dimmable | 8V ~ 60V | Board(s) | LT3795 |
|
DC876AEVAL BOARD FOR LT3486 |
0 |
|
Datasheet | - | Box | Active | 100mA | 2 Non-Isolated Outputs | - | Dimmable | 3V ~ 25V | Board(s) | LT3486 |
|
DC2079AEVAL BOARD FOR LT3954 |
1 |
|
Datasheet | - | Box | Active | 650mA | 1 Non-Isolated Output | 32V | Dimmable | 5V ~ 30V | Board(s) | LT3954 |
|
DC1608AEVAL BOARD FOR LT3745 |
0 |
|
Datasheet | - | Box | Active | 50mA | 16 Non-Isolated Outputs | - | Dimmable | 9V ~ 40V | Board(s) | LT3745 |
|

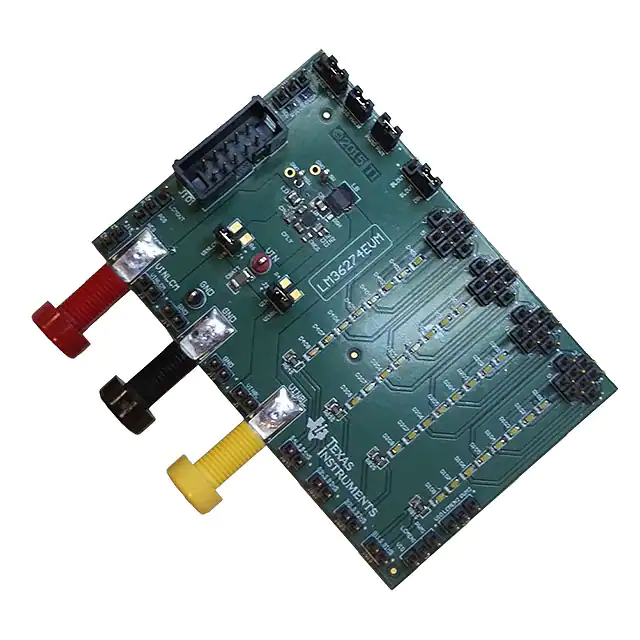

LM36274EVMEVAL BOARD FOR LM36274 |
3 |
|
Datasheet | - | Bulk | Active | - | 4 Non-Isolated Outputs | - | - | 2.7V ~ 5V | Board(s) | LM36274 |
|

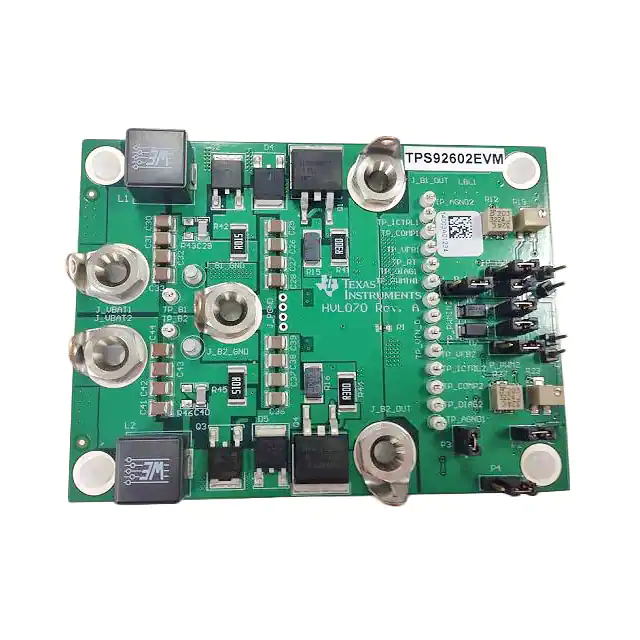

TPS92602EVMEVAL BOARD FOR TPS92602-Q1 |
3 |
|
Datasheet | - | Bulk | Active | 250mA | 2 Non-Isolated Outputs | 27.4V | Dimmable | 5.86V ~ 40V | Board(s) | TPS92602-Q1 |
|

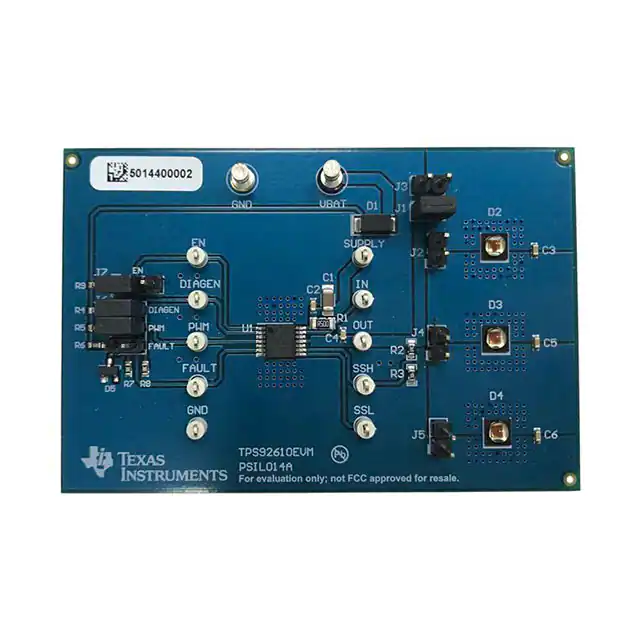

TPS92610EVMEVAL BOARD FOR TPS92610-Q1 |
3 |
|
Datasheet | - | Bulk | Active | 200mA | 1 Non-Isolated Output | - | - | 9V ~ 16V | Board(s) | TPS92610-Q1 |
