LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS92638STAEVMEVAL BOARD FOR TPS92638-Q1 |
5 |
|
Datasheet | - | Bulk | Active | - | 8 Non-Isolated Outputs | - | - | 5V ~ 40V | Board(s) | TPS92638-Q1 |
|
DC1436AEVAL BOARD FOR LT3754 |
2 |
|
Datasheet | - | Box | Active | 50mA | 16 Non-Isolated Outputs | 45V | Dimmable | 8V ~ 14V | Board(s) | LT3754 |
|
|
LM3645EVMEVAL BOARD FOR LM3645 |
3 |
|
- |
- | Box | Active | 2A | 4 Non-Isolated Outputs | - | - | 3.3V | Board(s) | LM3645 |
|
|
LP5813-12WSONEVMEVAL BOARD FOR LP5812 LP5813 |
5 |
|
Datasheet | - | Box | Active | - | 12 Non-Isolated Outputs | - | - | 1.8V ~ 5.5V | Board(s), Cable(s) | LP5812, LP5813 |
|
|
EVAL-LT8355-1-AZEVAL BOARD FOR LT8355-1 |
8 |
|
Datasheet | - | Box | Active | 1A, 450mA | 2 Non-Isolated Outputs | 30V, 72V | Dimmable | 8V ~ 18V | Board(s) | LT8355-1 |
|
|
TLD700216LITEKITTOBO1EVAL BOARD FOR TLD7002-16ES |
4 |
|
Datasheet | - | Bulk | Active | 76.5mA | 16 Non-Isolated Outputs | 20V | - | 6V ~ 20V | Board(s) | TLD7002-16ES |
|
|
TLD55012ADBPREREFTOBO1EVAL BOARD FOR TLD5501-2 |
2 |
|
- |
LITIX™ | Bulk | Active | 12A, 12A | 2 Non-Isolated Outputs | 0V ~ 5V | Dimmable | 8V ~ 26V | Board(s) | TLD5501-2 |
|
|
TLD5191HB2WEVALTOBO1EVAL BOARD FOR TLD5191ES |
3 |
|
Datasheet | LITIX™ | Bulk | Active | 1A | 1 Non-Isolated Output | 6.2V ~ 23.6V | Dimmable | 6.2V ~ 35V | Board(s) | TLD5191ES |
|
|
LP5860TEVMEVAL BOARD FOR LP5860T |
10 |
|
Datasheet | - | Box | Active | - | 18 Non-Isolated Outputs | - | Dimmable | 2.7V ~ 5.5V | Board(s), Cable(s) | LP5860T |
|
|
LP5867WCSPEVMEVAL BOARD FOR LP5867 |
5 |
|
Datasheet | - | Box | Active | 50mA | 6 Non-Isolated Outputs | - | Dimmable | 2.7V ~ 5.5V | Board(s), Cable(s) | LP5867 |
|
|
LP5891Q1EVMEVAL BOARD FOR LP5891-Q1 |
3 |
|
Datasheet | - | Box | Active | 20mA | 48 Non-Isolated Outputs | - | Dimmable | 2.5V ~ 5.5V | Board(s) | LP5891-Q1 |
|
|
TPS929160EVMEVAL BOARD FOR TPS929160-Q1 |
5 |
|
Datasheet | - | Box | Active | - | 16 Non-Isolated Outputs | - | - | 12V | Board(s), Cable(s) | TPS929160-Q1 |
|
|
DC2987AEVAL BOARD FOR LT3935 |
0 |
|
Datasheet | - | Bulk | Active | 4A | 1 Non-Isolated Output | - | Dimmable | 5.5V ~ 36V | Board(s) | LT3935 |
|
STEVAL-ILL080V1EVAL BOARD FOR HVLED001A |
9 |
|
Datasheet | - | Bulk | Active | 200mA | 1 Non-Isolated Output | 75V ~ 93V | - | 180 ~ 264 VAC | Board(s) | HVLED001A |
|

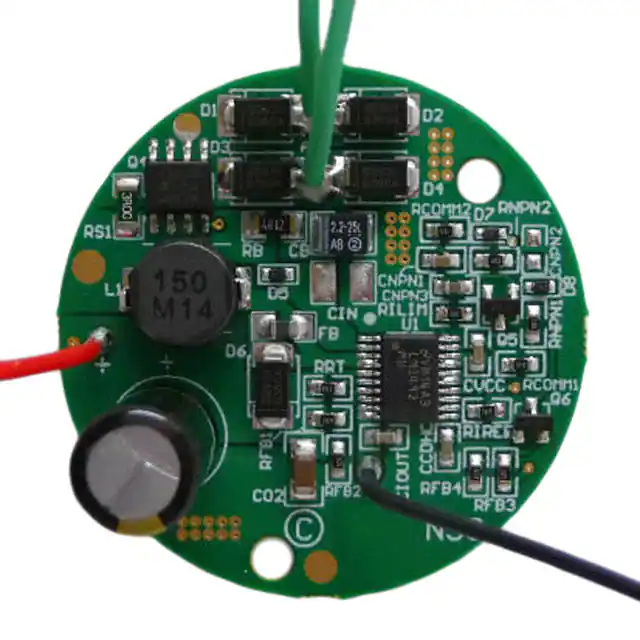

LM3492AR111DEMO/NOPBEVAL BOARD FOR LM3492 |
6 |
|
Datasheet | - | Box | Obsolete | 360mA | 1 Non-Isolated Output | - | - | 12VAC | Board(s) | LM3492 |
|
VIPER22-LED-EVEVAL BOARD FOR VIPER22A |
17 |
|
Datasheet | VIPER™ | Bulk | Obsolete | 1.05A, 700mA or 350mA | 1 Isolated Output | 28V | - | 90 ~ 264 VAC | Board(s) | VIPer22A |
|
STEVAL-LLL003V1EVAL BOARD FOR VIPER0P |
10 |
|
Datasheet | VIPer™ plus | Bulk | Active | 130mA | 1 Non-Isolated Output | - | - | 85 ~ 135 VAC, 175 ~ 285 VAC | Board(s) | VIPer0P |
|
BP5843A APP BOARDEVAL BOARD FOR BP5843A |
99 |
|
Datasheet | - | Box | Obsolete | 330mA | - | 2.5V ~ 12V | - | - | Board(s) | BP5843A |
|

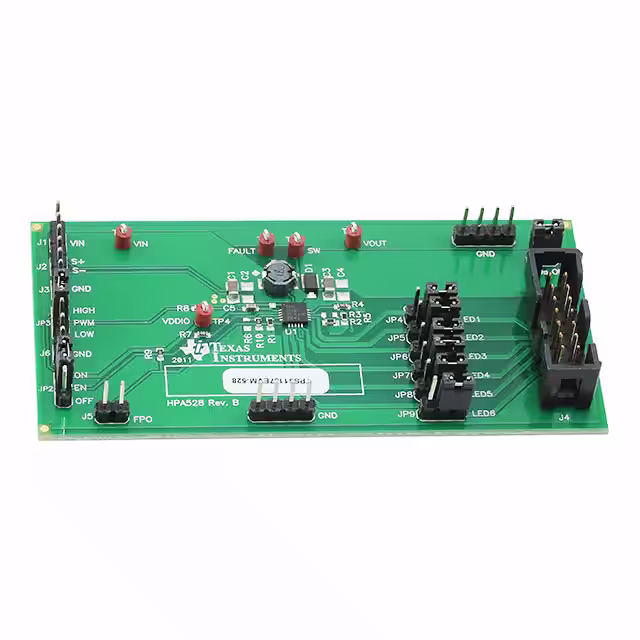

TPS61187EVM-528EVAL BOARD FOR TPS61187 |
2 |
|
Datasheet | - | Box | Active | 120mA | 6 Non-Isolated Outputs | 38V | - | 4.5V ~ 24V | Board(s) | TPS61187 |
|
LM3642TLEVMEVALUATION BOARD FOR LM3642 |
3 |
|
Datasheet | - | Box | Active | 1.5A | 1 Non-Isolated Output | - | - | - | Board(s) | LM3642 |
