LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

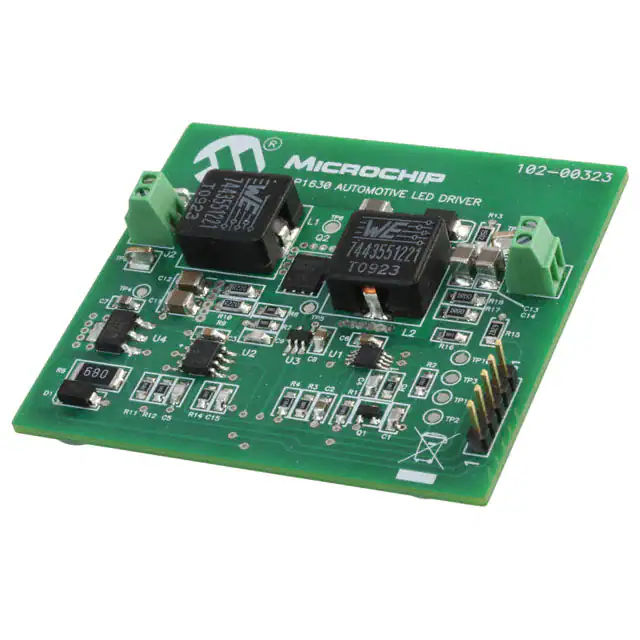

MCP1630RD-SALEDEVAL BOARD FOR MCP1630 |
3 |
|
Datasheet | - | Bulk | Active | 350mA | 1 Non-Isolated Output | - | Dimmable | 9V ~ 16V | Board(s) | MCP1630 |
|
AEK-LED-21DISM1EVAL BOARD FOR L99LD21 |
17 |
|
Datasheet | AutoDevKit | Bulk | Active | 1.69A | 2 Non-Isolated Outputs | - | - | 5.5V ~ 24V | Board(s) | L99LD21 |
|
STEVAL-ILL090V1EVAL BOARD FOR ALED8102S STM8 |
9 |
|
Datasheet | - | Bulk | Active | 100mA | 8 Non-Isolated Outputs | 20V | - | 3V ~ 5.5V | Board(s) | ALED8102S, STM8 |
|
AL5810QEV4EVAL BOARD FOR AL5810Q |
5 |
|
- |
- | Bulk | Active | 200mA | 1 Non-Isolated Output | - | Dimmable | 4.5V ~ 16V | Board(s) | AL5810Q |
|
STEVAL-ILL070V4EVAL BOARD FOR HVLED001A |
7 |
|
Datasheet | - | Bulk | Obsolete | 700mA | 6 Non-Isolated Outputs | 24V ~ 48V | Dimmable | 90 ~ 305 VAC | Board(s) | HVLED001A |
|
LM3561EVMEVAL BOARD FOR LM3561 |
2 |
|
Datasheet | - | Box | Obsolete | - | - | - | - | 2.7V ~ 5.5V | Board(s) | LM3561 |
|
STEVAL-ILL073V1EVAL BOARD FOR ALED1642GW |
8 |
|
Datasheet | - | Bulk | Active | - | 16 Non-Isolated Outputs | - | Dimmable | 6V ~ 28V | Board(s) | ALED1642GW |
|
STEVAL-ILL076V1EVAL BOARD FOR HVLED001 |
4 |
|
Datasheet | - | Box | Obsolete | 720mA | 1 Isolated Output | 56V | - | 180 ~ 264 VAC | Board(s) | HVLED001 |
|
DC871A-CEVAL BOARD FOR LTC3215 |
2 |
|
Datasheet | - | Box | Active | 150mA | 1 Non-Isolated Output | - | - | 2.9V ~ 4.4V | Board(s) | LTC3215 |
|
EVAL16W66VBCKCETOBO1EVAL BOARD FOR ICL8201 |
3 |
|
Datasheet | - | Bulk | Active | 270mA | 1 Non-Isolated Output | 55V ~ 75V | - | 170 ~ 277 VAC | Board(s) | ICL8201, IPN60R3K4CE |
|

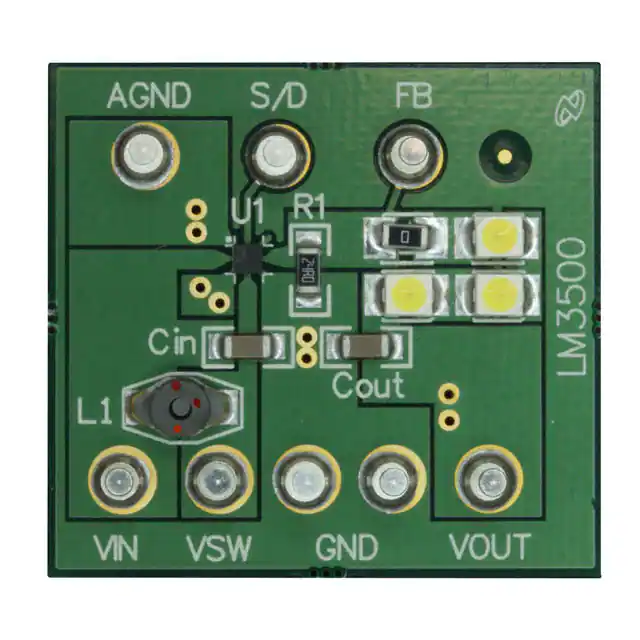

LM3500TL-16EVEVAL BOARD FOR LM3500 |
3 |
|
Datasheet | - | Box | Obsolete | 20mA | 1 Non-Isolated Output | 14V | - | 2.7V ~ 5.5V | Board(s) | LM3500 |
|

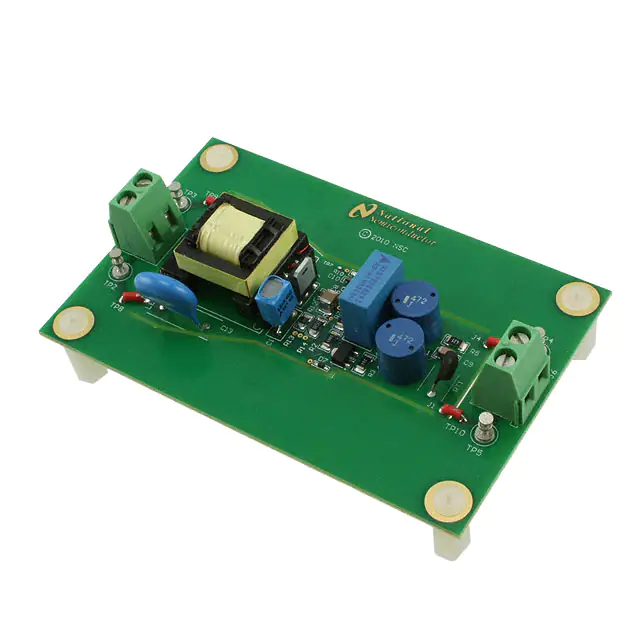

LM3445-120VFLBK/NOPBEVAL BOARD FOR LM3445 |
3 |
|
Datasheet | - | Box | Obsolete | 365mA | 1 Isolated Output | 20V | Dimmable | 90 ~ 135 VAC | Board(s) | LM3445 |
|

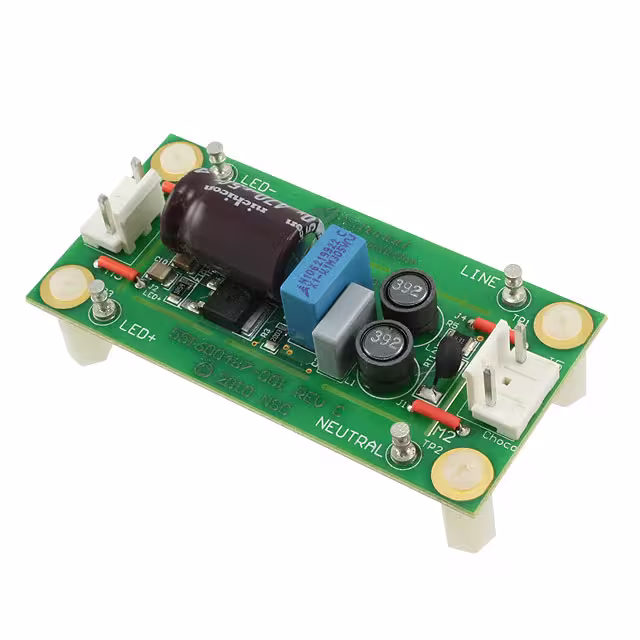

LM3445-EDSNEV/NOPBEVAL BOARD FOR LM3445 |
2 |
|
Datasheet | - | Box | Obsolete | 340mA | 1 Non-Isolated Output | - | Dimmable | 85 ~ 135 VAC | Board(s) | LM3445 |
|
|
AL3069EV1EVAL BOARD FOR AL3069 |
5 |
|
Datasheet | - | Bulk | Active | 120mA | 4 Non-Isolated Outputs | - | Dimmable | 10V ~ 30V | Board(s) | AL3069 |
|
|
SSL2101DB07,598EVAL BOARD FOR SSL2101 |
7 |
|
Datasheet | - | Box | Obsolete | 415mA | 1 Non-Isolated Output | 15.6V | Dimmable | 230VAC | Board(s) | SSL2101 |
|

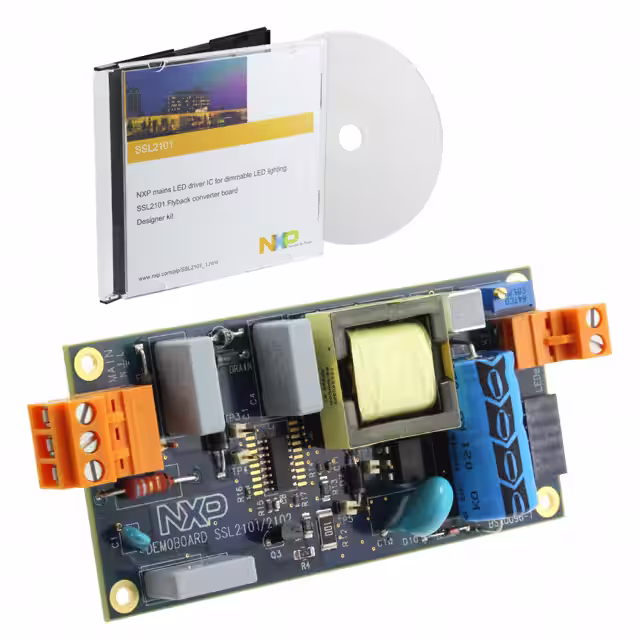

SSL2101T/DB/FBCB120V,598EVAL BOARD FOR SSL2101 |
4 |
|
Datasheet | - | Box | Obsolete | 800mA | 1 Isolated Output | 9V ~ 23V | Dimmable | 108 ~ 132 VAC | Board(s) | SSL2101 |
|

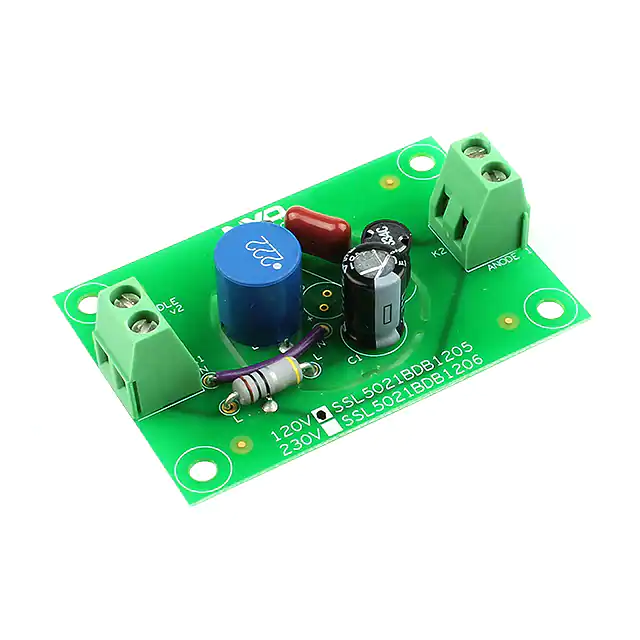

SSL5021BDB1205ULEVAL BOARD FOR SSL5021BTS |
4 |
|
Datasheet | GreenChip™ | Bulk | Obsolete | 93mA | 1 Non-Isolated Output | 40V ~ 60V | - | 85 ~ 140 VAC | Board(s) | SSL5021BTS |
|

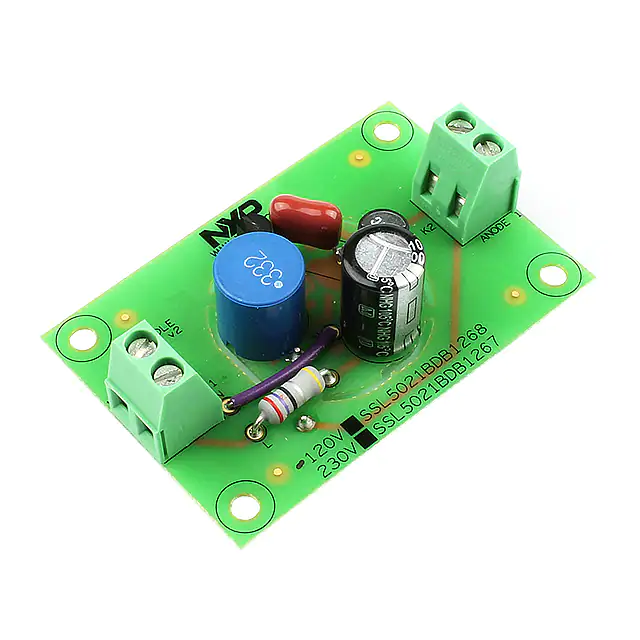

SSL5021BDB1268ULEVAL BOARD FOR SSL5021BTS |
4 |
|
- |
GreenChip™ | Bulk | Obsolete | 85mA | 1 Non-Isolated Output | 40V ~ 65V | - | 96 ~ 138 VAC | Board(s) | SSL5021BTS |
|

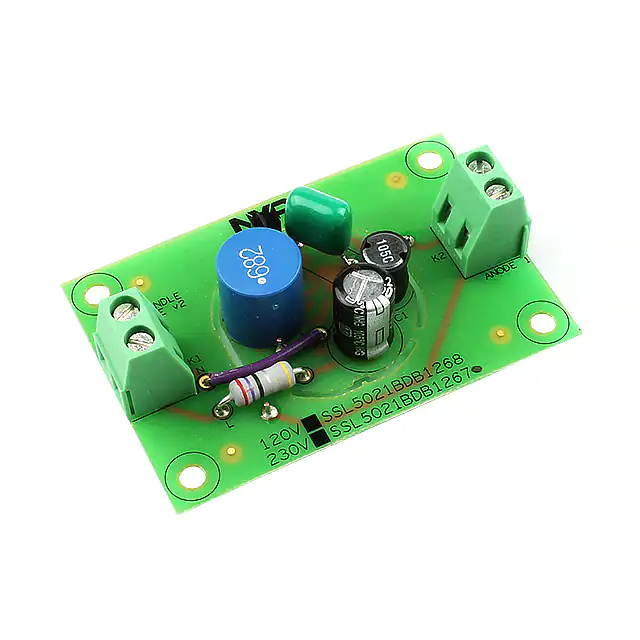

SSL5021BDB1267ULEVAL BOARD FOR SSL5021BTS |
3 |
|
- |
GreenChip™ | Bulk | Obsolete | 71mA | 1 Non-Isolated Output | 40V ~ 88V | - | 170 ~ 265 VAC | Board(s) | SSL5021BTS |
|

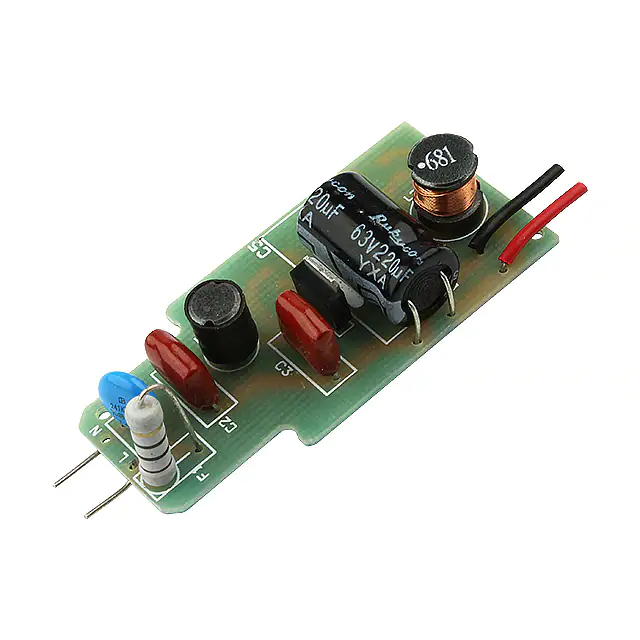

SSL5031BDB1207ULEVAL BOARD FOR SSL5031BTS |
3 |
|
- |
GreenChip™ | Bulk | Obsolete | 205mA | 1 Non-Isolated Output | 40V | - | 120VAC | Board(s) | SSL5031BTS |
