LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

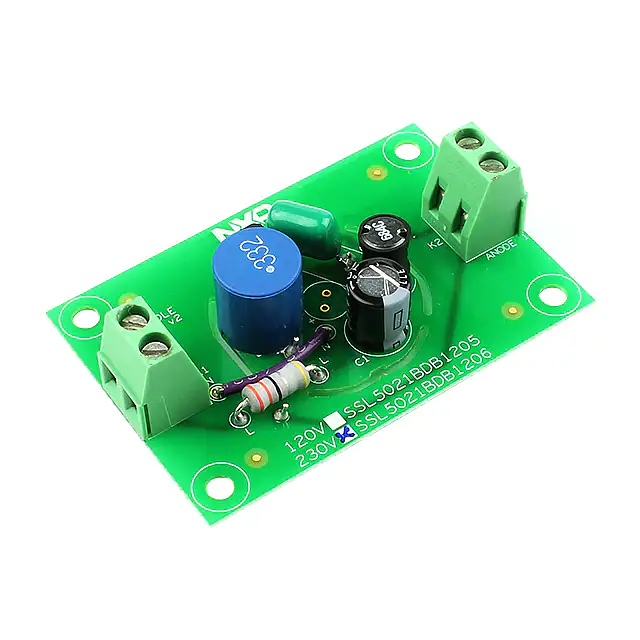

SSL5021BDB1206ULEVAL BOARD FOR SSL5021BTS |
2 |
|
Datasheet | GreenChip™ | Bulk | Obsolete | 93mA | 1 Non-Isolated Output | 40V ~ 60V | - | 150 ~ 265 VAC | Board(s) | SSL5021BTS |
|
STEVAL-ILL071V1EVAL BOARD FOR ST1S40 STM32F030 |
3 |
|
Datasheet | - | Box | Active | - | 8 Non-Isolated Outputs | - | - | - | Board(s) | ST1S40, STM32F030, STP04CM05 |
|

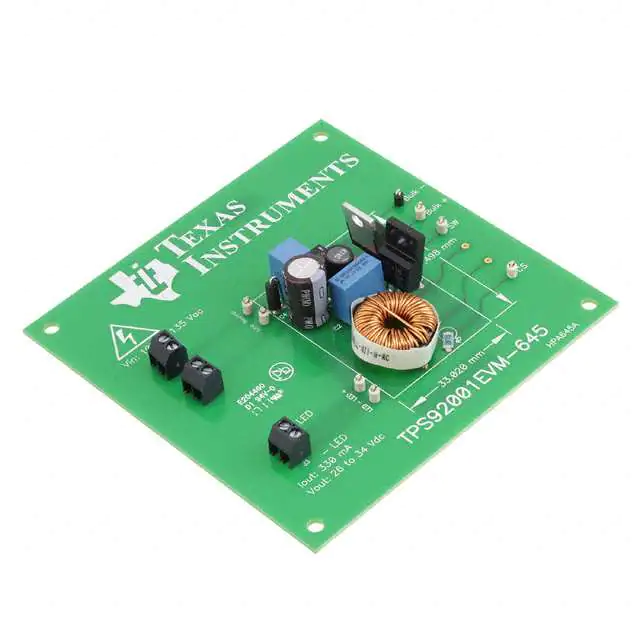

TPS92001EVM-645EVAL BOARD FOR TPS92001 |
3 |
|
Datasheet | - | Box | Active | 330mA | 1 Non-Isolated Output | 30V | Dimmable | 105 ~ 135 VAC | Board(s) | TPS92001 |
|

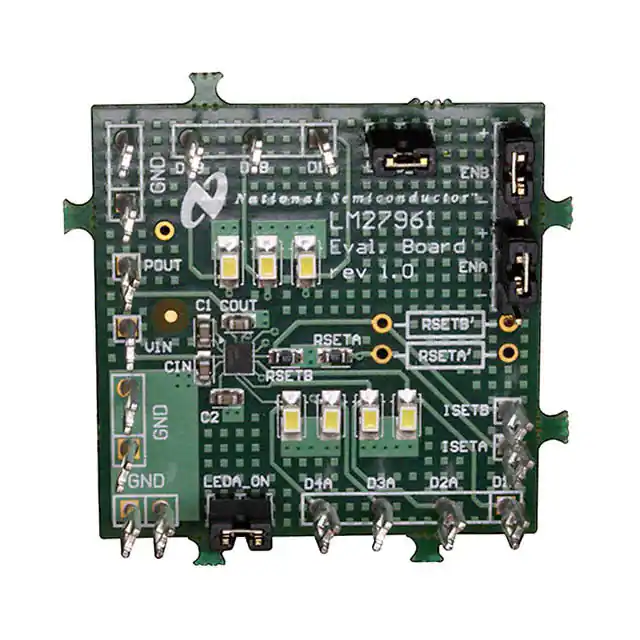

LM27961TLEVEVAL BOARD FOR LM27961 |
5 |
|
- |
- | Box | Obsolete | 20mA | 7 Non-Isolated Outputs | 4V | - | 2.7V ~ 5.5V | Board(s) | LM27961 |
|
STEVAL-TLL008V1EVAL BOARD FOR STCF04 |
5 |
|
Datasheet | - | Bulk | Obsolete | - | 1 Non-Isolated Output | 2.5V ~ 5V | - | 2.7V ~ 5V | Board(s) | STCF04 |
|
STEVAL-LLL002V1EVAL BOARD FOR ALED1262ZT |
7 |
|
Datasheet | - | Bulk | Active | - | 48 Non-Isolated Outputs | - | Dimmable | 12V ~ 24V | Board(s) | ALED1262ZT |
|
STEVAL-ILL076V2EVAL BOARD FOR HVLED001A |
22 |
|
Datasheet | - | Bulk | Active | - | 1 Isolated Output | 56V | - | 90 ~ 264 VAC | Board(s) | HVLED001A |
|
TPS92001EVM-628EVAL BOARD FOR TPS92001 |
5 |
|
Datasheet | - | Box | Obsolete | 330mA | 1 Non-Isolated Output | 30V | Dimmable | 108 ~ 135 VAC | Board(s) | TPS92001 |
|
TPS92010EVM-592EVAL BOARD FOR TPS92010 |
3 |
|
Datasheet | TrueDrive™ | Box | Obsolete | 325mA | 1 Isolated Output | 14V ~ 18V | Dimmable | 100 ~ 130 VAC | Board(s) | TPS92010 |
|
STEVAL-POEL45W1EVAL BOARD FOR LED6000 PM8805 |
4 |
|
Datasheet | - | Bulk | Active | 1.4A | - | - | Dimmable | 37V ~ 57V | Board(s) | LED6000, PM8805, SPBTLE-1S |
|
STEVAL-ILL049V12EVAL BOARD FOR LED6001 |
2 |
|
- |
- | Bulk | Obsolete | 350mA | 1 Non-Isolated Output | - | Dimmable | 6V ~ 24V | Board(s) | LED6001 |
|
STEVAL-LLL004V1EVAL BOARD FOR STM32F071 |
5 |
|
Datasheet | - | Bulk | Active | 500mA | 2 Non-Isolated Outputs | - | Dimmable | 85 ~ 265 VAC | Board(s) | STM32F071 |
|
EVL80WLED-STCH03EVAL BOARD FOR STCH03 |
4 |
|
Datasheet | - | Bulk | Active | 1A | 1 Isolated Output | 40V ~ 80V | - | 90 ~ 265 VAC | Board(s) | STCH03 |
|
DEMOBRDTLD5095ELV1TOBO1EVAL BOARD FOR TLD5095EL |
3 |
|
Datasheet | - | Box | Discontinued at Digi-Key | - | 1 Non-Isolated Output | 4.5V ~ 40V | - | 12V ~ 45V | Board(s) | TLD5095EL |
|
STEVAL-ILL077V1EVAL BOARD FOR STNRG388A |
4 |
|
Datasheet | - | Bulk | Obsolete | - | 3 Non-Isolated Outputs | - | Dimmable | 48V ~ 56V | Board(s) | STNRG388A |
|
STEVAL-LLL001V1EVAL BOARD FOR STLED524 |
5 |
|
Datasheet | - | Bulk | Active | - | 24 Non-Isolated Outputs | - | Dimmable | 2.7V ~ 5.5V | Board(s) | STLED524 |
|
EVALLED-ICL8002G-B2EVAL BOARD FOR ICL8002G |
2 |
|
Datasheet | - | Box | Obsolete | 300mA | 1 Non-Isolated Output | 30V ~ 38V | Dimmable | 90 ~ 132 VAC | Board(s) | ICL8002G |
|
STEVAL-LLL006V1EVAL BOARD FOR HVLED001A |
5 |
|
Datasheet | - | Bulk | Active | 700mA | 1 Isolated Output | 60V ~ 110V | - | 90 ~ 300 VAC | Board(s) | HVLED001A |
|
STEVAL-LLL008V1EVAL BOARD FOR HVLED001B |
8 |
|
- |
- | Bulk | Discontinued at Digi-Key | 1.4A | 1 Non-Isolated Output | 40V ~ 70V | Dimmable | 90 ~ 265 VAC | Board(s) | HVLED001B, HVLED002, SPSGRFC |
|

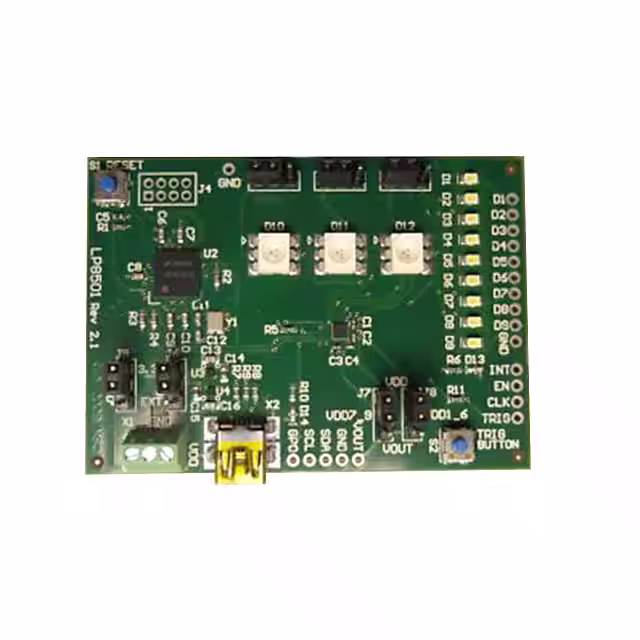

LP8501TMEEVEVAL BOARD FOR LP8501 |
2 |
|
Datasheet | - | Box | Obsolete | 25.5mA | 9 Non-Isolated Outputs | - | - | 2.7V ~ 5.5V | Board(s) | LP8501 |
