Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EMI4192MTTAGCMC 100MA 4LN 32 OHM SMD ESD |
0 |
|
Datasheet | 10-WDFN | Signal Line | 4 | 32 Ohms @ 100 MHz | - | 100mA | 5Ohm | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
LCFEA201204A101TGCMC 100MA 4LN 90OHM SMD |
0 |
|
Datasheet | 0805 (2012 Metric), 6 Lead | Signal Line | 4 | 90 Ohms @ 100 MHz | - | 100mA | 4Ohm | 5V | - | -40°C ~ 125°C | AEC-Q200 | - | TVS Diode ESD Protection | - | - |
|
ECMF2-0730V12M12CMC 100MA 2LN ESD |
21 |
|
- |
12-UFDFN | Signal Line | 2 | - | - | 100mA | 5.5Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
EMIF02-01OABRYCMC 2LN ESD AEC-Q101 |
0 |
|
Datasheet | 6-VDFN | - | 2 | - | - | - | - | - | - | -40°C ~ 125°C | - | - | TVS Diode ESD Protection | - | - |
|
SS17HB-R13020CMC 2MH 1.3A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 1 kHz | 1.3A | 180mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SP5001-04TTGCMC 100MA 4LN SMD ESD AEC-Q101 |
0 |
|
Datasheet | 10-WFDFN | Signal Line | 4 | - | - | 100mA | - | - | - | -40°C ~ 125°C | - | - | TVS Diode ESD Protection | - | - |
|
|
SS11V-06180-CHIND COMMON MODE CHOKE |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 18 mH @ 1 kHz | 600mA | 1.3Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SS11V-03550-CHIND COMMON MODE CHOKE |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 55 mH @ 1 kHz | 300mA | 4.1Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SS11V-10062-CHIND COMMON MODE CHOKE |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 6.2 mH @ 1 kHz | 1A | 440mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SS11V-04350-CHIND COMMON MODE CHOKE |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 35 mH @ 1 kHz | 400mA | 2.6Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SS11V-08083-CHIND COMMON MODE CHOKE |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 8.3 mH @ 1 kHz | 800mA | 740mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS21V-070179CMC 17.9MH 700MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 17.9 mH @ 1 kHz | 700mA | 1.1Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SS21V-110067CMC 6.7MH 1.1A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 6.7 mH @ 1 kHz | 1.1A | 450mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SS21V-130044CMC 4.4MH 1.3A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 4.4 mH @ 1 kHz | 1.3A | 350mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR10HS-05495CMC 49.5MH 500MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 49.5 mH @ 10 kHz | 500mA | 1.6Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR10HS-13075CMC 7.5MH 1.3A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 7.5 mH @ 10 kHz | 1.3A | 240mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SP5003-04TTGCMC 100MA 4LN SMD ESD AEC-Q101 |
0 |
|
Datasheet | 10-WFDFN | Signal Line | 4 | - | - | 100mA | - | - | - | -40°C ~ 125°C | - | - | TVS Diode ESD Protection | - | - |
|
|
SS21V-R040770CMC 77MH 400MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 77 mH @ 1 kHz | 400mA | 5.4Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

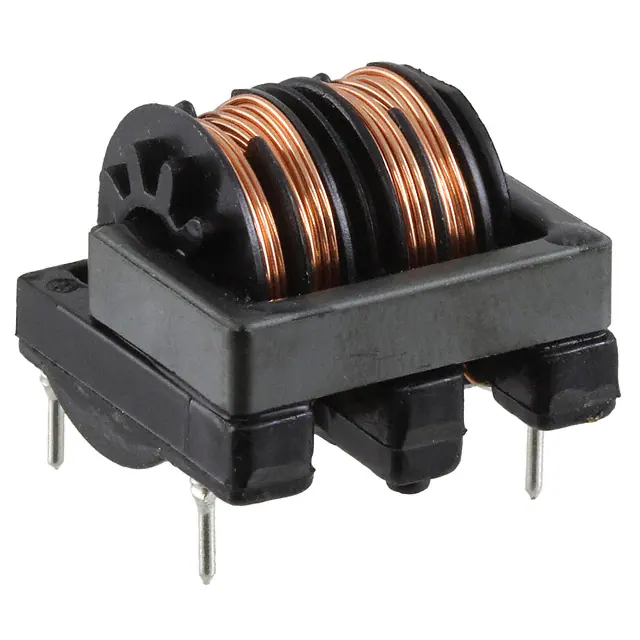

SS11H-10062-CHCMC 6.2MH 1A 2LN TH |
0 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 6.2 mH @ 1 kHz | 1A | 440mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

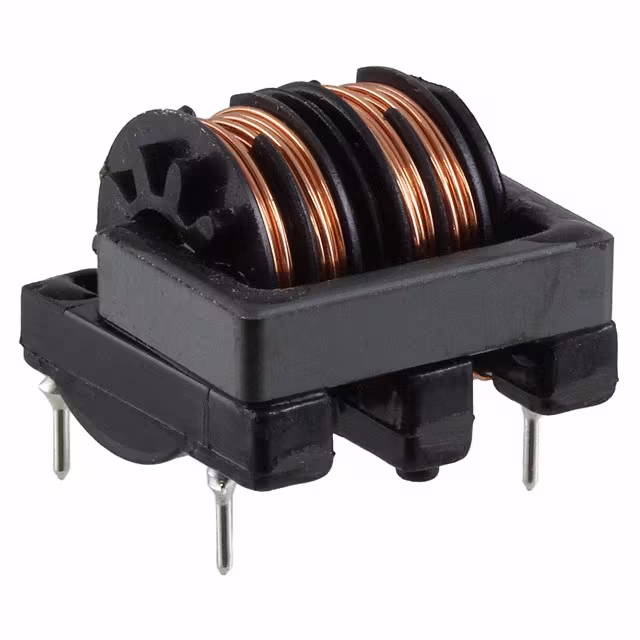

SS11H-R10093-CHCMC 9.3MH 1A 2LN TH |
0 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 9.3 mH @ 1 kHz | 1A | 440mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
