Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN13-300CMC 51UH 6A 2LN TH |
0 |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 51 µH @ 100 kHz | 6A | 23mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|

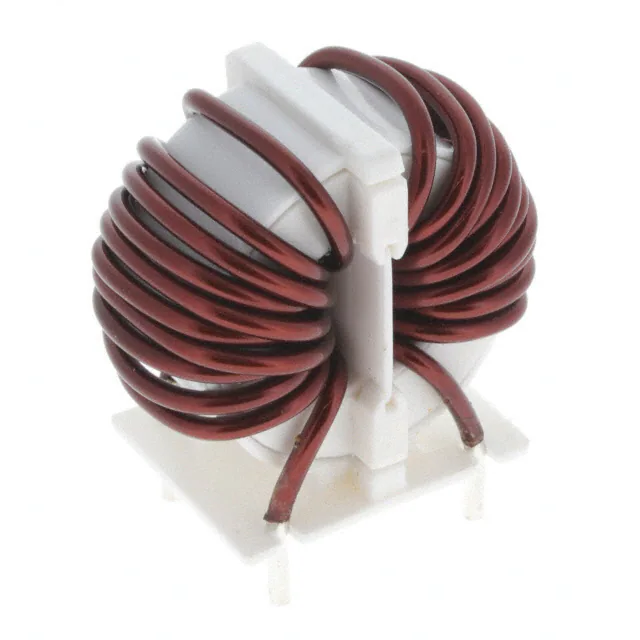

SC-18-10JCMC 700UH 20A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 700 µH @ 100 kHz | 20A | 20mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-07-90JCMC 9MH 7A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 9 mH @ 10 kHz | 7A | 50mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-14-15JHCMC 1.5MH 14A 2LN TH |
0 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 100 kHz | 14A | - | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-08-440CMC 4.4MH 8A 2LN TH |
0 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 4.4 mH @ 1 kHz | 8A | 25mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-07-70JCMC 7MH 7A 2LN TH |
2 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 7 mH @ 1 kHz | 7A | 40mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-20-E085JMCMC 1.2MH 20A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.2 mH @ 10 kHz | 20A | 6mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

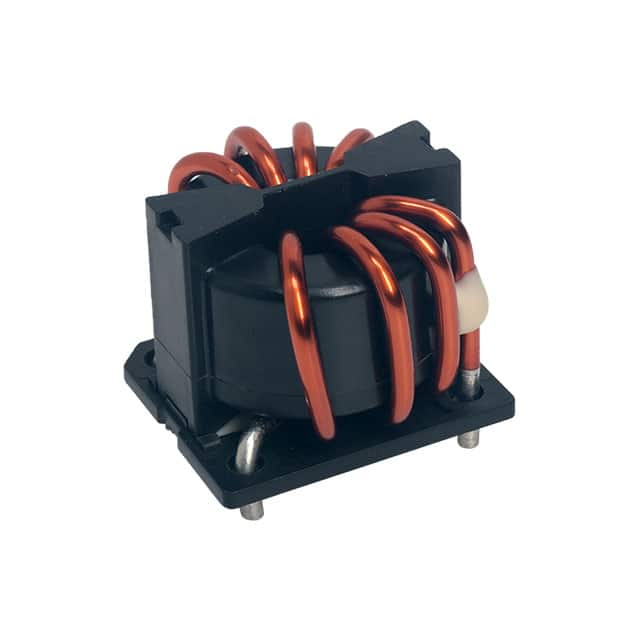

SCR25XV-240-2R0A006JHCMC 440UH 24A 2LN TH AEC-Q200 |
20 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 440 µH @ 100 kHz | 24A | 1.92mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCT29XV-210-2R1A010JHCMC 330UH 21A 2LN TH AEC-Q200 |
2 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 330 µH @ 100 kHz | 21A | 2.33mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

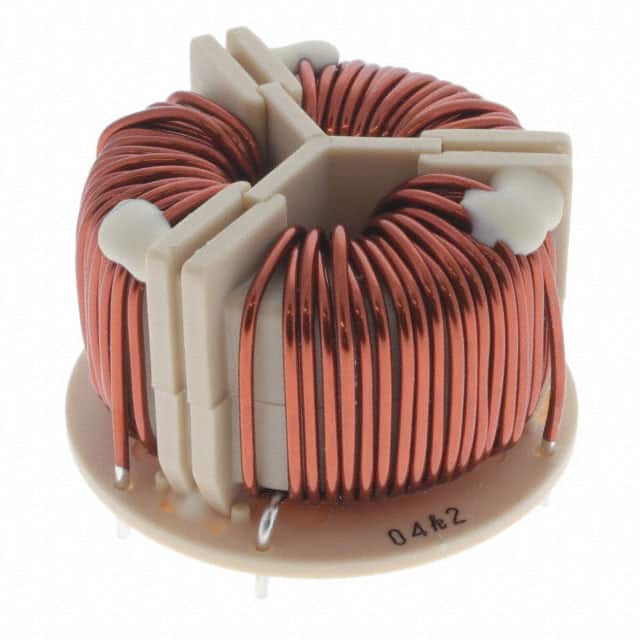

SCR31-010-S1R1A035JHCMC 3.5MH 1A 3LN TH |
16 |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 3.5 mH @ 100 kHz | 1A | 24mOhm | 250V | 250V | 25°C ~ 120°C | - | - | - | - | - |
|

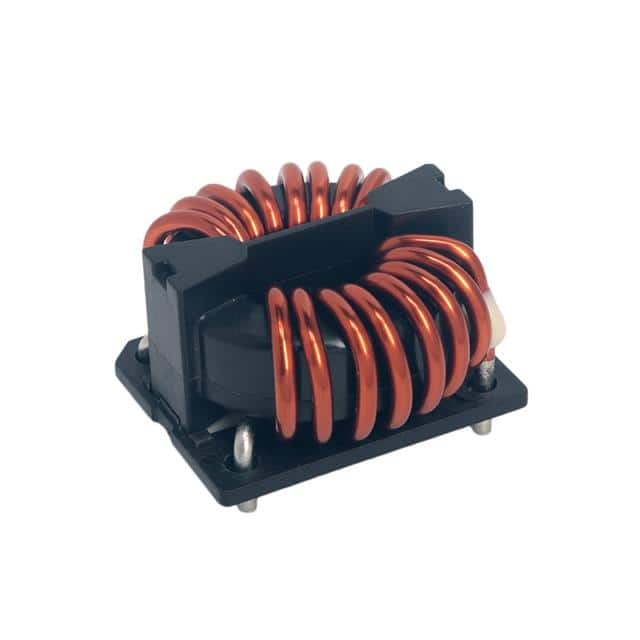

SCF29XV-110-1R5A019JHCMC 4MH 11A 2LN TH AEC-Q200 |
0 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 4 mH @ 100 kHz | 11A | 8.07mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SC-04-E120JKHCMC 12MH 4A 2LN TH |
0 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 12 mH @ 10 kHz | 4A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

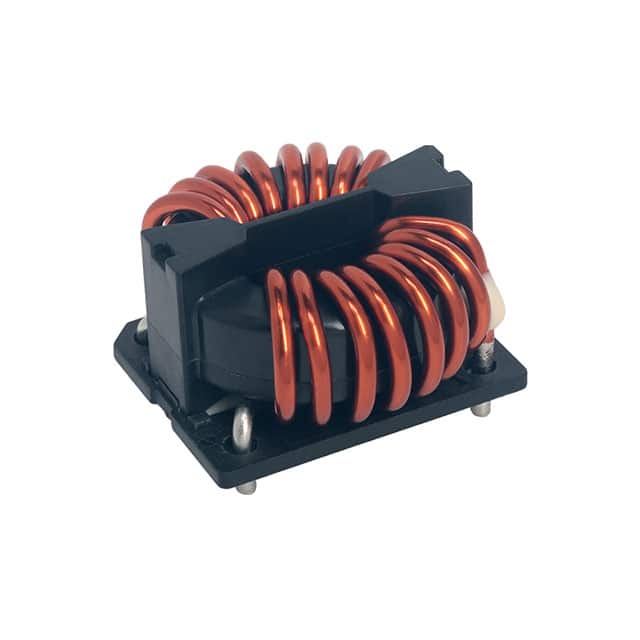

SCR29XV-070-1R2A030JHCMC 5.5MH 7A 2LN TH AEC-Q200 |
0 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 5.5 mH @ 100 kHz | 7A | 19.2mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|

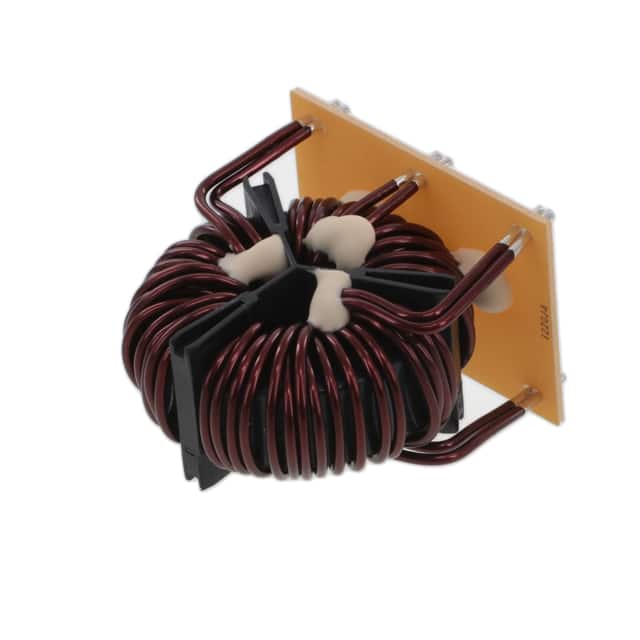

SCF47B-300-S2R0B012JCMC 1.2MH 30A 3LN TH |
4 |
|
Datasheet | Vertical, 6 PC Pin | Power Line | 3 | - | 1.2 mH @ 100 kHz | 30A | 2.4mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SCF25-06-2000CMC 20MH 6A 2LN TH |
0 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 20 mH @ 100 kHz | 6A | 26mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

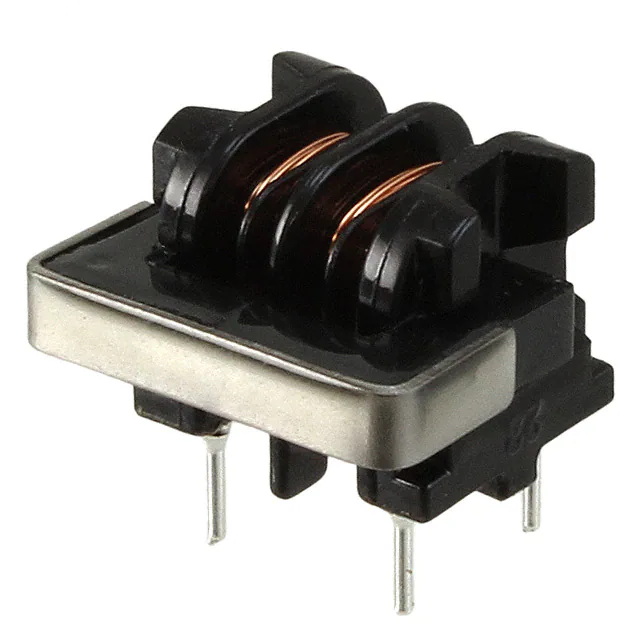

SU9HF-05030CMC 3MH 500MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 1 kHz | 500mA | 1Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SU9H-R05034CMC 3.4MH 500MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3.4 mH @ 1 kHz | 500mA | 1Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS21V-050360CMC 36MH 500MA 2LN TH |
7 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 36 mH @ 1 kHz | 500mA | 2.4Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSHB10HS-30006CMC 600UH 3A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 600 µH @ 10 kHz | 3A | 60mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
SU10VFC-R15019CMC 1.9MH 1.5A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.9 mH @ 1 kHz | 1.5A | 240mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
