Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

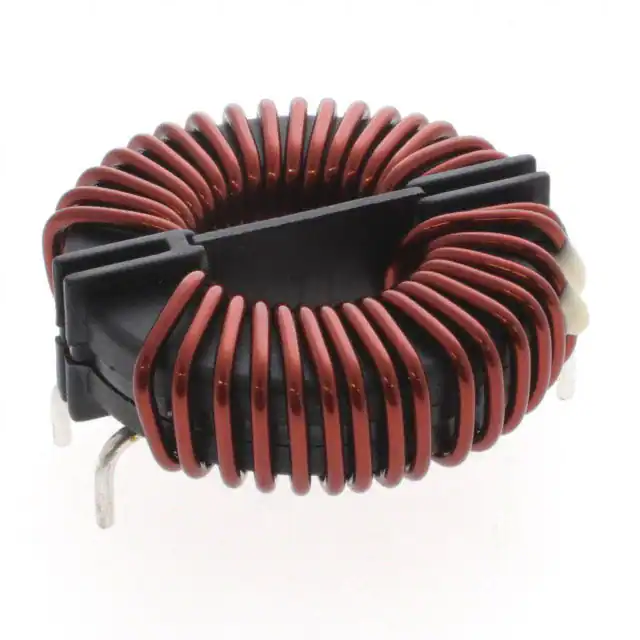

SCR31HA-120-1R3A012HCMC 1.2MH 12A 2LN TH |
18 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 1.2 mH @ 10 kHz | 12A | 9.6mOhm | 250V | 250V | 25°C ~ 120°C | - | - | - | - | - |
|
SCR25B-105-1R3A035JHCMC 3.5MH 10.5A 2LN TH |
1 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 3.5 mH @ 10 kHz | 10.5A | 17mOhm | 500V | 500V | -25°C ~ 120°C | - | - | - | - | - |
|

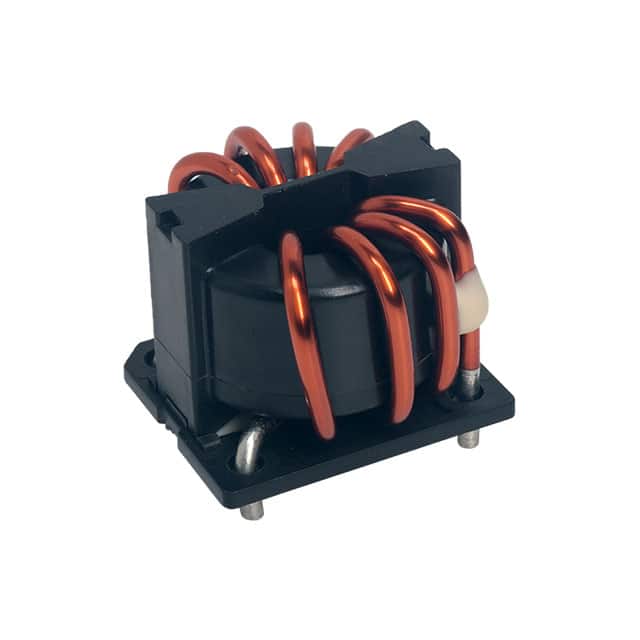

SCT25XV-150-1R6A010JHCMC 800UH 15A 2LN TH AEC-Q200 |
17 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 800 µH @ 100 kHz | 15A | 4.74mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCR19XV-220-1R6A004JHCMC 100UH 22A 2LN TH AEC-Q200 |
0 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 100 µH @ 100 kHz | 22A | 1.43mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR19XV-120-1R2A007JHCMC 300UH 12A 2LN TH AEC-Q200 |
0 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 300 µH @ 100 kHz | 12A | 4.19mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SC-15-E37JCMC 3.7MH 15A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3.7 mH @ 10 kHz | 15A | 16mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SCF19XV-300-1R9A003JVCMC 110UH 30A 2LN TH AEC-Q200 |
5 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 110 µH @ 100 kHz | 30A | 0.747mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF19XV-100-1R1A009JHCMC 1MH 10A 2LN TH AEC-Q200 |
3 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 10A | 6.23mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SC-15-10JHCMC 1MH 15A 2LN TH |
0 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 15A | 12mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
SCF19XV-190-1R5A005JVCMC 300UH 19A 2LN TH AEC-Q200 |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 300 µH @ 100 kHz | 19A | 1.89mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF19XV-220-1R6A004JVCMC 200UH 22A 2LN TH AEC-Q200 |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 200 µH @ 100 kHz | 22A | 1.38mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF19XV-120-1R2A007JHCMC 600UH 12A 2LN TH AEC-Q200 |
0 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 600 µH @ 100 kHz | 12A | 4.19mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SC-20-SE10JCMC 940UH 20A 3LN TH |
0 |
|
Datasheet | Vertical, 6 PC Pin | Power Line | 3 | - | 940 µH @ 10 kHz | 20A | 7mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
SC-15-E50JHCMC 5.2MH 15A 2LN TH |
0 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 5.2 mH @ 10 kHz | 15A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SCR31H-225-2R0A014JCMC 1.4MH 22.5A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.4 mH @ 10 kHz | 22.5A | 5mOhm | 250V | 250V | 25°C ~ 120°C | - | - | - | - | - |
|
SC-10-500CMC 5MH 10A 2LN TH |
0 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 5 mH @ 100 kHz | 10A | 25mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SCR38-350-1R8B008JCMC 850UH 35A 2LN TH |
0 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 850 µH @ 10 kHz | 35A | 2.6mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

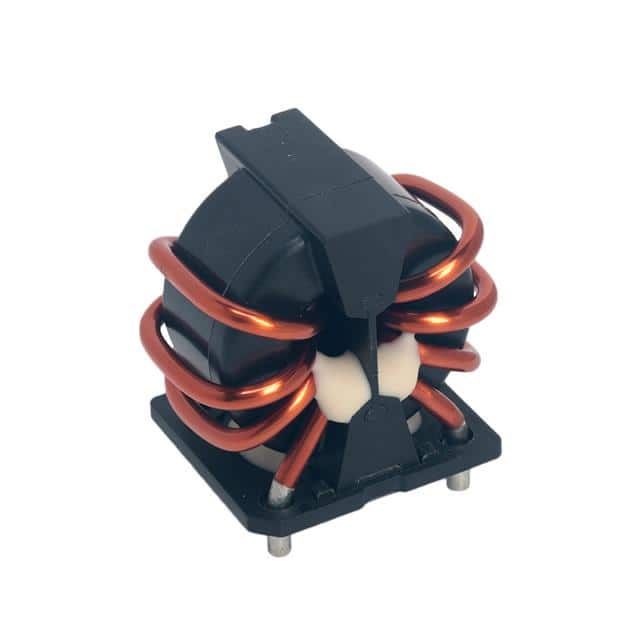

SCF25XV-280-2R1A005JVCMC 600UH 28A 2LN TH AEC-Q200 |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 600 µH @ 100 kHz | 28A | 1.39mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF25XV-170-1R7A009JVCMC 2MH 17A 2LN TH AEC-Q200 |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 17A | 3.71mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

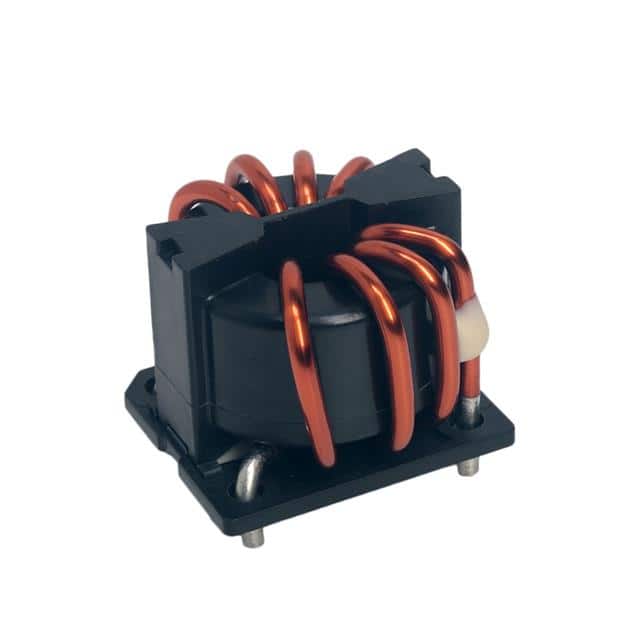

SCF25XV-350-2R4A003JHCMC 220UH 35A 2LN TH AEC-Q200 |
0 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 220 µH @ 100 kHz | 35A | 0.7mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
