Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSHB21H-18054CMC 5.4MH 1.8A 2LN TH |
96 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 5.4 mH @ 10 kHz | 1.8A | 220mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SSHB21HS-R05910CMC 91MH 500MA 2LN TH |
91 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 91 mH @ 10 kHz | 500mA | 1.88Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SN12HP-2201NMC 20.0UH 10.0A 0.0130 OHM TH |
83 |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 20 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SN12-800JNMC 270.0UH 3.0A 0.1300 OHM TH |
76 |
|
Datasheet | Vertical, 2 PC Pin | Power Line | 2 | - | 270 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SN14-400NMC 120.0UH 5.0A 0.0450 OHM TH |
0 |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 120 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
HHBC13-1R2A0127VCMC 127UH 6A 2LN TH |
94 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 127 µH @ 100 kHz | 6A | 31.7mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SCR-080-1R1A020JHCMC 2MH 8A 2LN TH |
0 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 8A | 15.9mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SCR19XV-220-1R6A004JVCMC 100UH 22A 2LN TH AEC-Q200 |
79 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 100 µH @ 100 kHz | 22A | 1.38mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|

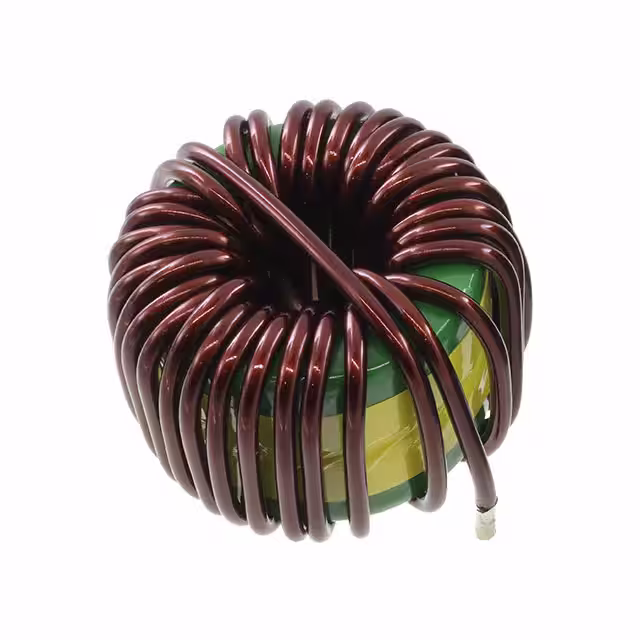

SN20P-120HNMC 120.0UH 20.0A 0.0180 OHM TH |
14 |
|
Datasheet | - | Power Line | 2 | - | 120 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|

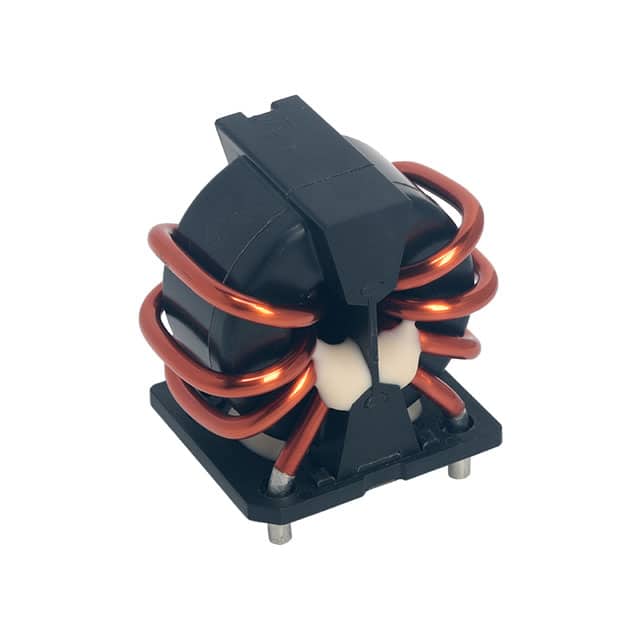

SCT25XV-150-1R6A010JVCMC 800UH 15A 2LN TH AEC-Q200 |
70 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 800 µH @ 100 kHz | 15A | 4.62mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT25XV-130-1R5A012JVCMC 1.15MH 13A 2LN TH AEC-Q200 |
68 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.15 mH @ 100 kHz | 13A | 6.33mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT25XV-110-1R4A013JVCMC 1.35MH 11A 2LN TH AEC-Q200 |
68 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.35 mH @ 100 kHz | 11A | 7.72mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCT25XV-110-1R4A013JHCMC 1.35MH 11A 2LN TH AEC-Q200 |
60 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.35 mH @ 100 kHz | 11A | 7.89mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCR25XV-080-1R2A018JHCMC 4MH 8A 2LN TH AEC-Q200 |
58 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 4 mH @ 100 kHz | 8A | 13.5mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|

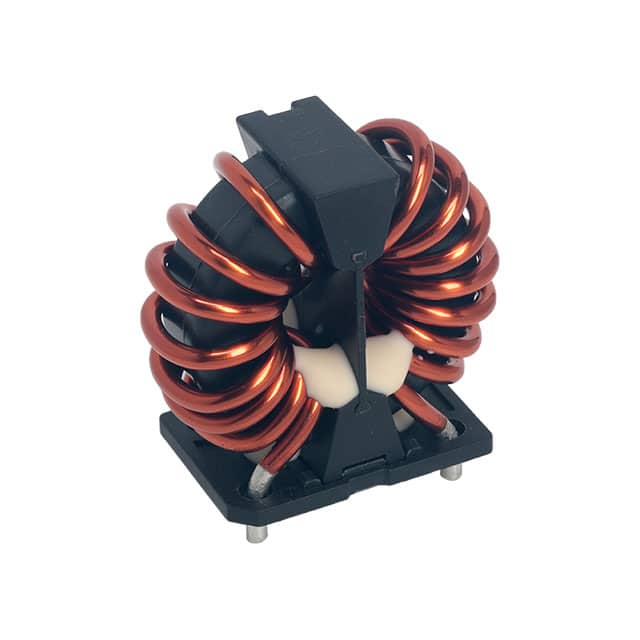

SCR29XV-080-1R3A026JVCMC 4.15MH 8A 2LN TH AEC-Q200 |
60 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 4.15 mH @ 100 kHz | 8A | 14.2mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR29XV-060-1R1A036JVCMC 7.9MH 6A 2LN TH AEC-Q200 |
56 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 7.9 mH @ 100 kHz | 6A | 27.2mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR29XV-120-1R6A017JVCMC 1.76MH 12A 2LN TH AEC-Q200 |
50 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.76 mH @ 100 kHz | 12A | 6.43mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCT29XV-110-1R5A019JVCMC 1.21MH 11A 2LN TH AEC-Q200 |
60 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.21 mH @ 100 kHz | 11A | 8mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

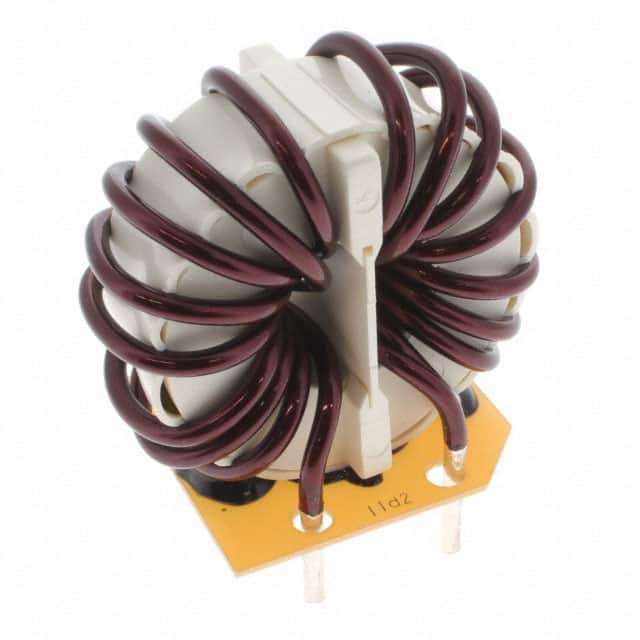

SCR38-200-2R3A010JCMC 1MH 20A 2LN TH |
54 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 20A | 3.5mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SCT25XV-130-1R5A012JHCMC 1.15MH 13A 2LN TH AEC-Q200 |
57 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.15 mH @ 100 kHz | 13A | 6.43mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
