Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSHB10H-06171CMC 17.1MH 600MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 17.1 mH @ 10 kHz | 600mA | 1.3Ohm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
SSR21NVS-M20103CMC 10.3MH 2A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 10.3 mH @ 10 kHz | 2A | 150mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSRH24NVS-30092CMC 9.2MH 3A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 9.2 mH @ 10 kHz | 3A | 79mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSRH24NH-16470CMC 47MH 1.6A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 47 mH @ 10 kHz | 1.6A | 327mOhm (Typ) | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSRH24NV-20310CMC 31MH 2A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 31 mH @ 10 kHz | 2A | 214mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

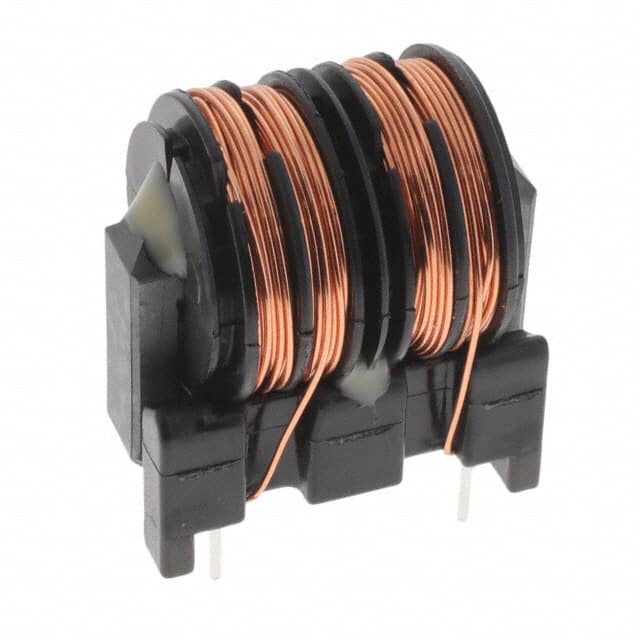

SS30V-120290CMC 29MH 1.2A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 29 mH @ 1 kHz | 1.2A | 600mOhm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SS30V-150200CMC 20MH 1.5A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 1 kHz | 1.5A | 500mOhm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-15-01HCMC 67UH 15A 2LN TH |
0 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 67 µH @ 10 kHz | 15A | 2mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-03-10GJCMC 1MH 3A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 3A | 40mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-07-10JCMC 1MH 7A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 7A | 24mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

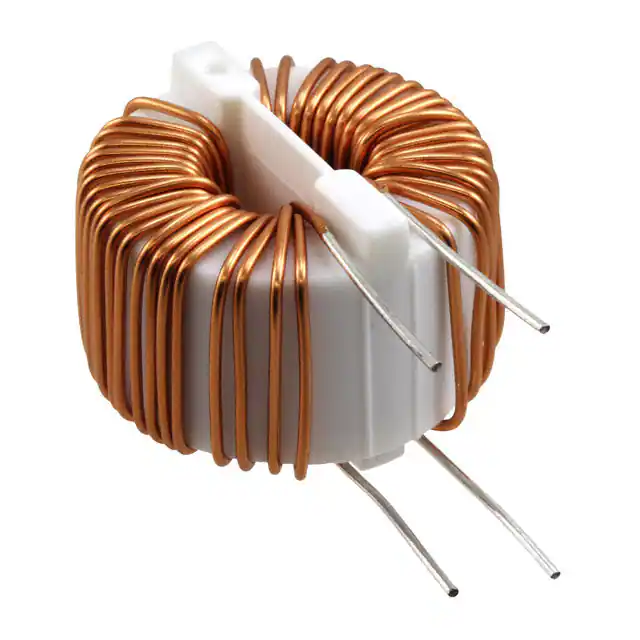

SC-05-300CMC 3MH 5A 2LN TH |
0 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 5A | 55mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-05-1503CMC 10.5MH 5A 2LN TH |
0 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 10.5 mH @ 16 kHz | 5A | 100mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|

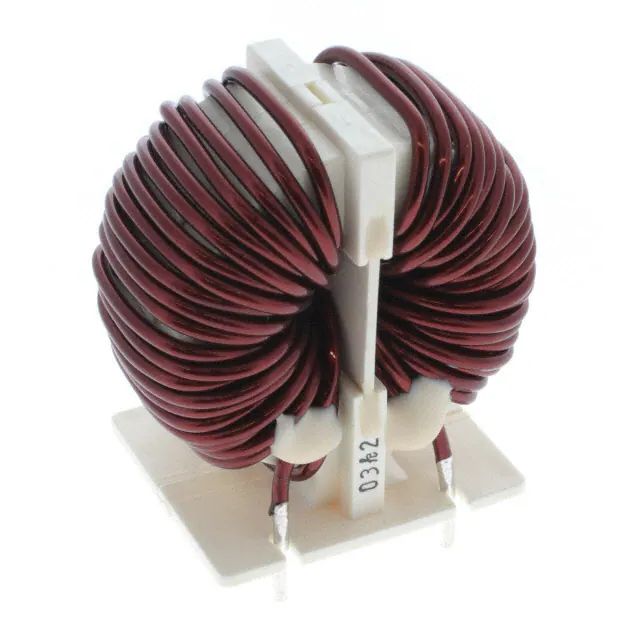

SC-15-07JCMC 702UH 15A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 702 µH @ 100 kHz | 15A | 10mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-09-209JHCMC 2.09MH 9A 2LN TH |
0 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 2.09 mH @ 10 kHz | 9A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
SC-15-12J-MICMC 1.2MH 15A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.2 mH @ 10 kHz | 15A | 6.2mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SN12-800NMC 250.0UH 5.0A 0.0600 OHM TH |
0 |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 250 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
SC-15-09JCMC 900UH 15A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 900 µH @ 100 kHz | 15A | 20mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
SC-06-462JHCMC 4.6MH 6A 2LN TH |
0 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 4.6 mH @ 10 kHz | 6A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

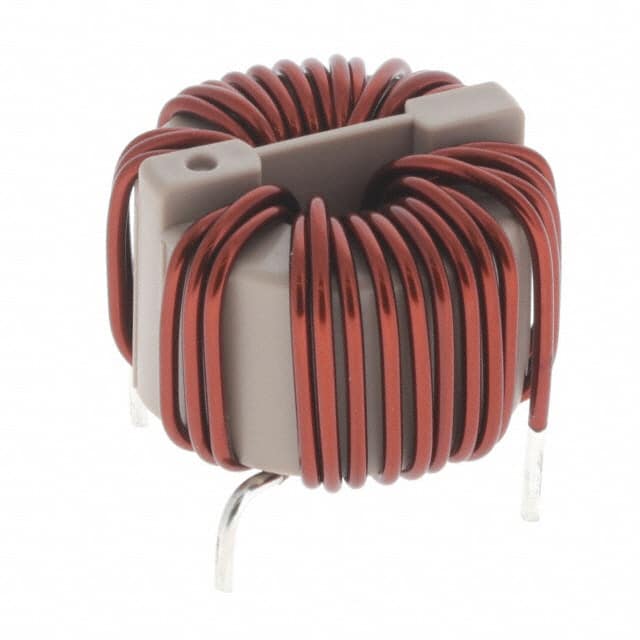

SC-15-E110HCMC 1.1MH 15A 2LN TH |
6 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 1.1 mH @ 10 kHz | 15A | 16.5mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

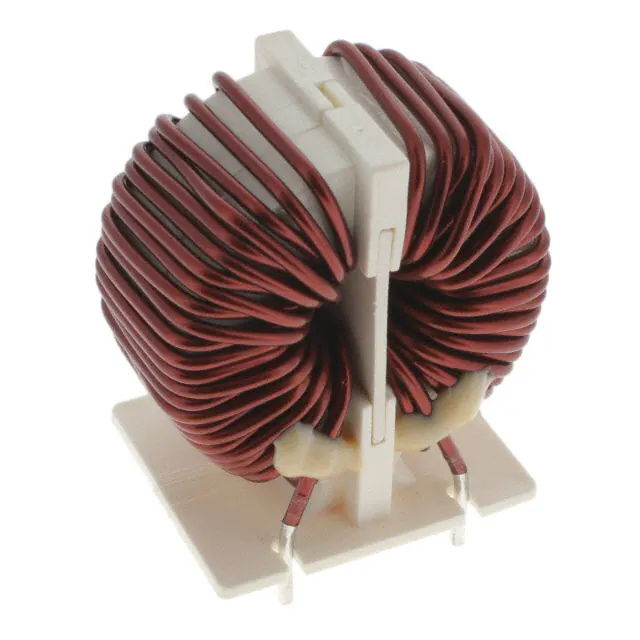

SC-10-E55JCMC 5.5MH 10A 2LN TH |
17 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 5.5 mH @ 10 kHz | 10A | 24mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
