Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSRH24NVS-25130CMC 13MH 2.5A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 13 mH @ 10 kHz | 2.5A | 111mOhm (Typ) | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSHB10HS-R04620CMC 62MH 400MA 2LN TH |
17 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 62 mH @ 10 kHz | 400mA | 2.45Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB10H-30007CMC 700UH 3A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 700 µH @ 10 kHz | 3A | 70mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SSHB10HS-13030CMC 3MH 1.3A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 3 mH @ 10 kHz | 1.3A | 250mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
SS35V-30082CMC 8.2MH 3A 2LN TH |
0 |
|
Datasheet | Vertical, 6 PC Pin | Power Line | 2 | - | 8.2 mH @ 1 kHz | 3A | 150mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS35V-40033CMC 3.3MH 4A 2LN TH |
0 |
|
Datasheet | Vertical, 6 PC Pin | Power Line | 2 | - | 3.3 mH @ 1 kHz | 4A | 80mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-03-08JSCMC 800UH 3A 2LN TH |
1 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 800 µH @ 1 kHz | 3A | 60mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SSR21NV-M12345CMC 34.5MH 1.2A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 34.5 mH @ 10 kHz | 1.2A | 430mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSRH24NHS-20215CMC 21.5MH 2A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 21.5 mH @ 10 kHz | 2A | 177mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

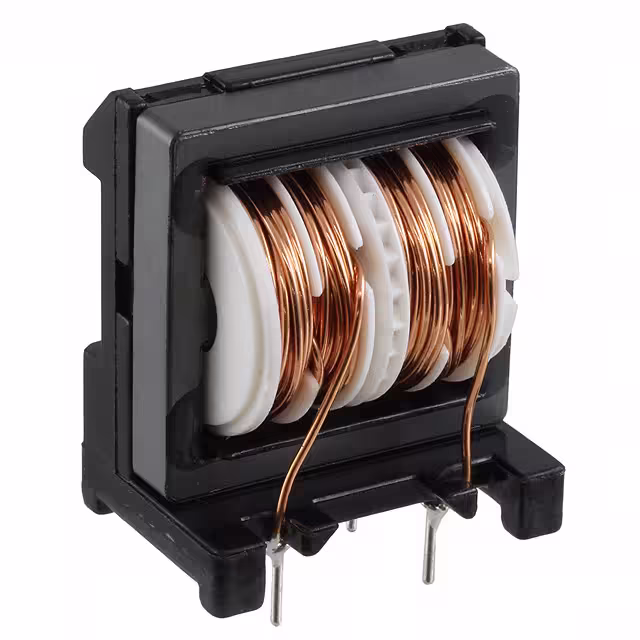

SS28V-R25080-CHCMC 8MH 2.5A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 1 kHz | 2.5A | 160mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB21H-R30050CMC 5MH 3A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 5 mH @ 10 kHz | 3A | 80mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB21HS-20034CMC 3.431MH 2A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 3.431 mH @ 10 kHz | 2A | 140mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|

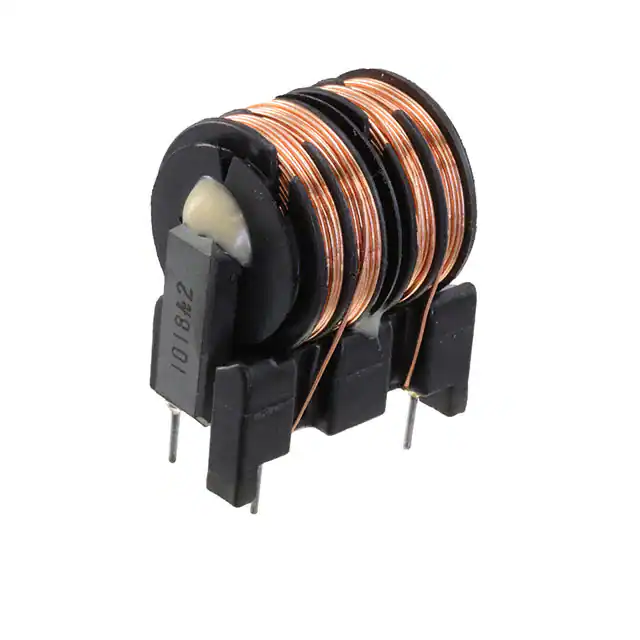

SS30V-100530CMC 53MH 1A 2LN TH |
3 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 53 mH @ 1 kHz | 1A | 1.1Ohm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SS30V-350036CMC 3.6MH 3.5A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3.6 mH @ 1 kHz | 3.5A | 100mOhm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
ST-202CMC 1A 2LN 600 OHM TH |
0 |
|
Datasheet | Vertical, No Base, 4 PC Pin | - | 2 | 600 Ohms @ 100 MHz | - | 1A | 40mOhm | 50V | - | -20°C ~ 75°C | - | - | - | - | - |
|
|
SC22-05-70JHCMC 7MH 5A 2LN TH |
0 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 7 mH @ 10 kHz | 5A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
ST-202ACMC 1A 2LN 600 OHM TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | 600 Ohms @ 100 MHz | - | 1A | 50mOhm | 50V | - | -20°C ~ 65°C | - | - | - | - | - |
|
SC-02-20JCMC 2MH 2A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 2A | 110mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-01-E50GCMC 5MH 1A 2LN TH |
0 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 5 mH @ 1 kHz | 1A | 150mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-08-30JCMC 3MH 8A 2LN TH |
17 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 8A | 54mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
