Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN12-6501NMC 170.0UH 5.0A 0.0600 OHM TH |
0 |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 170 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
PHBC13-1R2A0045VCMC 45UH 6A 2LN TH |
0 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 45 µH @ 100 kHz | 6A | 18.3mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SCT39XV-420-2R4B004JHCOMMON MODE 0.119MH 42A 0.530M |
0 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 119 µH @ 100 kHz | 42A | 0.53mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
HHBC24N-2R1B0039VCMC 39UH 30A 2LN TH |
1 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 39 µH @ 100 kHz | 30A | 6.8mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SCF39XV-270-Z2R4A009JHCMC 2MH 27A HRZ |
0 |
|
Datasheet | Horizontal, 8 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 27A | 2.44mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
LCFA121002B900TGCMC 150MA 2LN 90OHM SMD AEC-Q200 |
0 |
|
Datasheet | 0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 150mA | 4Ohm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
ECMF02-3HSM6CMC 100MA 2LN SMD ESD |
0 |
|
- |
6-UFDFN | Signal Line | 2 | - | - | 100mA | 5Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
LCFA121002A900TGCMC 100MA 2LN 90OHM SMD |
0 |
|
Datasheet | 0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 4Ohm | 5V | - | -40°C ~ 125°C | AEC-Q200 | - | TVS Diode ESD Protection | - | - |
|
ECMF04-4AMX12CMC 200MA 4LN SMD ESD |
0 |
|
- |
12-UFDFN | Signal Line | 4 | - | - | 200mA | 2.5Ohm | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
LCFEA121002A900TGCMC 100MA 2LN 90OHM SMD |
0 |
|
- |
0504 (1210 Metric), 6 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 4Ohm | 5V | - | -40°C ~ 125°C | AEC-Q200 | - | TVS Diode ESD Protection | - | - |
|
ECMF06-6HSM16CMC 100MA 6LN SMD ESD |
0 |
|
Datasheet | 16-UFDFN | Signal Line | 6 | - | - | 100mA | 5Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
LCFE160804A350TGCMC 100MA 4LN 35 OHM SMD ESD |
0 |
|
Datasheet | 0603 (1608 Metric), 10 Lead | Signal Line | 4 | 35 Ohms @ 100 MHz | - | 100mA | 6Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
LCFA201202A900TGCMC 100MA 2LN 90OHM SMD AEC-Q200 |
0 |
|
Datasheet | 0805 (2012 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 4Ohm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

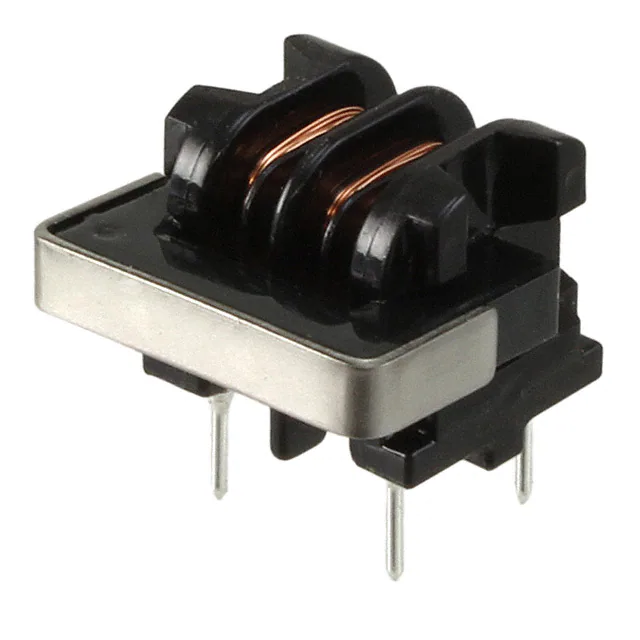

SU9HF-06030CMC 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | - | 600mA | 820mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
LCFEA201202A900TGCMC 150MA 2LN 90OHM SMD |
0 |
|
Datasheet | 0805 (2012 Metric), 6 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 150mA | 4Ohm | 5V | - | -40°C ~ 125°C | AEC-Q200 | - | TVS Diode ESD Protection | - | - |
|
LCFE300806A750TGCMC 100MA 6LN 75 OHM SMD ESD |
0 |
|
Datasheet | 1203 (3008 Metric), 14 Lead | Signal Line | 6 | 75 Ohms @ 100 MHz | - | 100mA | 6Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
ECMF06-6AM16CMC 100MA 6LN SMD ESD |
0 |
|
Datasheet | 16-UFDFN | Signal Line | 6 | - | - | 100mA | 4Ohm | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
LCFA201204A101TGCMC 100MA 4LN 100OHM SMD AECQ200 |
0 |
|
Datasheet | 0805 (2012 Metric), 4 Lead | Signal Line | 4 | 100 Ohms @ 100 MHz | - | 100mA | 4Ohm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
ECMF4-2450A17M10CMC 100MA 4LN SMD ESD |
0 |
|
Datasheet | 10-UFQFN | Signal Line | 4 | - | - | 100mA | 5.5Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
SN3-300NMC 20.0UH 0.5A 0.1500 OHM TH |
0 |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 20 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
