Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCF29XV-120-1R6A017JHCMC 3.2MH 12A 2LN TH AEC-Q200 |
0 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 3.2 mH @ 100 kHz | 12A | 6.45mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SC-12-100JHCMC 10MH 12A 2LN TH |
0 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 100 kHz | 12A | - | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SCF47B-400-1R8C040JCMC 4MH 40A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 4 mH @ 10 kHz | 40A | 2.1mOhm | 500V | 500V | -25°C ~ 120°C | - | - | - | - | - |
|
PHBC24W-2R1B0065VCMC 65UH 30A 2LN TH |
0 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 65 µH @ 100 kHz | 30A | 6.2mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SS20H-R10100CMC 10MH 1A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 1A | 420mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS11VL-R08125CMC 12.5MH 800MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 12.5 mH @ 1 kHz | 800mA | 740mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSHB10H-08082CMC 8.2MH 800MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 8.2 mH @ 10 kHz | 800mA | 640mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|

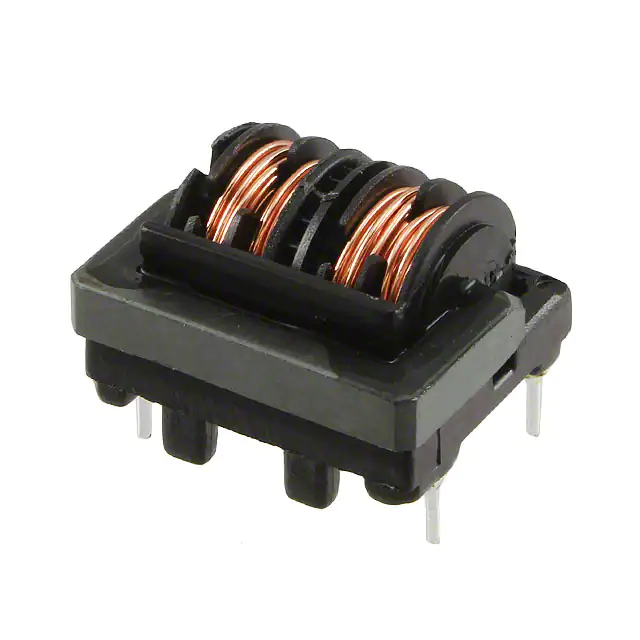

SS17HB-R05140CMC 14MH 500MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 14 mH @ 1 kHz | 500mA | 1.1Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

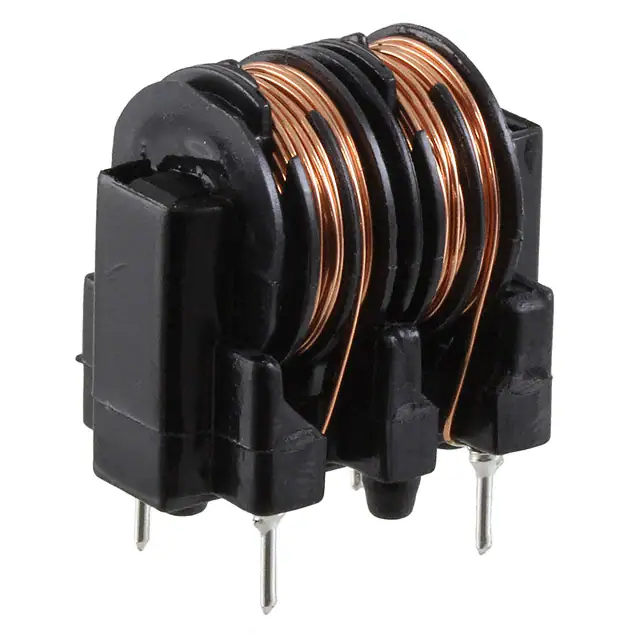

SS11V-11050-CHCMC 5MH 1.1A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 1 kHz | 1.1A | 400mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR10HS-22026CMC 2.6MH 2.2A 2LN TH |
4 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 2.6 mH @ 10 kHz | 2.2A | 100mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB10H-10064CMC 6.4MH 1A 2LN TH |
16 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 6.4 mH @ 10 kHz | 1A | 480mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SSHB10HS-05177CMC 17.7MH 500MA 2LN TH |
1 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 17.7 mH @ 10 kHz | 500mA | 1.55Ohm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
SSR21NVS-10160CMC 16MH 1A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 16 mH @ 10 kHz | 1A | 290mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SU9VD-07030CMC 30UH 700MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 30 µH @ 1 kHz | 700mA | 150mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR10H-13097CMC 9.7MH 1.3A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 9.7 mH @ 10 kHz | 1.3A | 270mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB21H-R10377CMC 37.7MH 1A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 37.7 mH @ 10 kHz | 1A | 640mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB21H-R18112CMC 11.2MH 1.8A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 11.2 mH @ 10 kHz | 1.8A | 220mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB21HS-12110CMC 11MH 1.2A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 11 mH @ 10 kHz | 1.2A | 430mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|

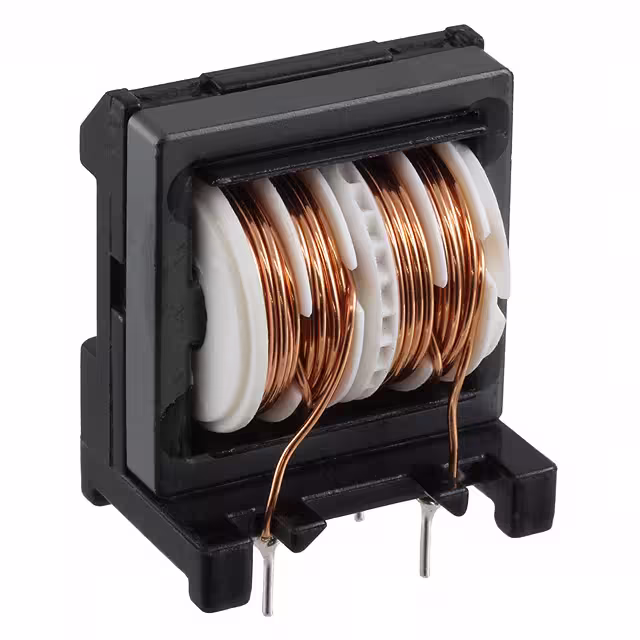

SS28V-K25075-CHCMC 7.5MH 2.5A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 7.5 mH @ 1 kHz | 2.5A | 160mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS28H-R20130-CHCMC 13MH 2A 2LN TH |
6 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 13 mH @ 1 kHz | 2A | 220mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
