Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

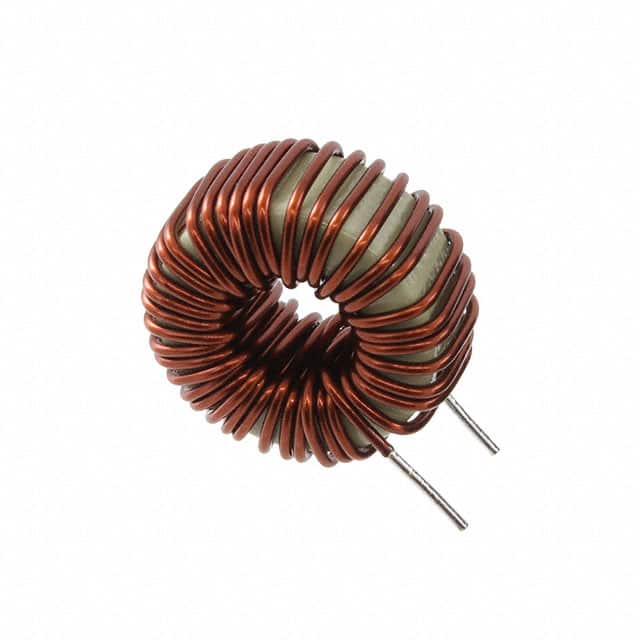

PHBC14-1R2A0120VCMC 120UH 8A 2LN TH |
0 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 120 µH @ 100 kHz | 8A | 29.9mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
EMI8143MUTAGCMC 100MA 6LN SMD ESD |
0 |
|
Datasheet | 16-XFDFN | Signal Line | 6 | - | - | 100mA | 6Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
SBT-0180WCMC 80UH 500MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Signal Line | 2 | - | 80 µH @ 1 kHz | 500mA | 55mOhm | 50V | - | -25°C ~ 70°C | - | - | - | - | - |
|
M-542CTCMC 500MA 4LN 200 OHM SMD |
0 |
|
Datasheet | Vertical, 8 Gull Wing | Signal Line | 4 | 200 Ohms @ 10 MHz | - | 500mA | 120mOhm | 50V | - | -20°C ~ 75°C | - | - | - | - | - |
|
LCF121002A900TGCMC 100MA 2LN 90 OHM SMD |
0 |
|
Datasheet | 0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 4Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
SU9V-R02140CMC 14MH 200MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 14 mH @ 1 kHz | 200mA | 6Ohm | - | 250V | -25°C ~ 125°C | - | - | - | - | - |
|
SSRH7HS-M07154CMC 15.4MH 700MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 15.4 mH @ 10 kHz | 700mA | 630mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SU10VFC-R10045CMC 4.5MH 1A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 4.5 mH @ 1 kHz | 1A | 550mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SH-S132CMC 1A 3LN TH |
0 |
|
Datasheet | Vertical, 6 PC Pin | Power Line | 3 | - | 1.7 µH @ 100 kHz | 1A | 81mOhm | 50V | - | -25°C ~ 80°C | - | - | - | - | - |
|
SS30V-R180190CMC 19MH 1.8A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 19 mH @ 1 kHz | 1.8A | 230mOhm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-05-103CMC 1MH 5A 2LN TH |
16 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 5A | 50mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
PLT-02CMC 7.5UH 300MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 7.5 µH @ 100 kHz | 300mA | 55mOhm | - | 110V | -25°C ~ 100°C | - | UL | - | - | - |
|

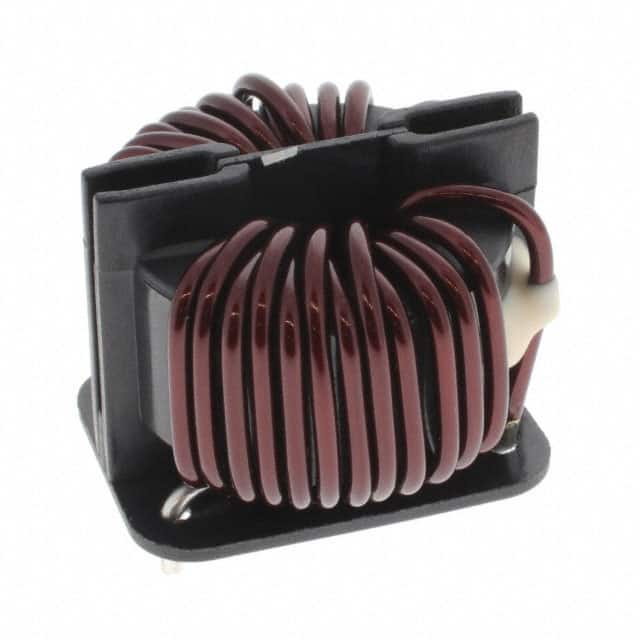

SCF-02-350JHCMC 35MH 2A 2LN TH |
0 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 35 mH @ 10 kHz | 2A | 220mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-15-05JCMC 500UH 15A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 500 µH @ 100 kHz | 15A | 8mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SCR19XV-300-1R9A003JVCMC 56UH 30A 2LN TH AEC-Q200 |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 56 µH @ 100 kHz | 30A | 0.747mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCF19XV-300-1R9A003JHCMC 110UH 30A 2LN TH AEC-Q200 |
18 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 110 µH @ 100 kHz | 30A | 0.767mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF25XV-280-2R1A005JHCMC 600UH 28A 2LN TH AEC-Q200 |
0 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 600 µH @ 100 kHz | 28A | 1.44mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SS11VL-08083CMC 8.3MH 800MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 8.3 mH @ 1 kHz | 800mA | 740mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS24V-R20045-CHCMC 4.5MH 2A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 4.5 mH @ 1 kHz | 2A | 170mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSRH7H-M13064CMC 6.4MH 1.3A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 6.4 mH @ 10 kHz | 1.3A | 210mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
