Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
SCF39XV-240-Z2R3A010JHCMC 2.5MH 24A HRZ |
10 |
|
Datasheet | Horizontal, 8 PC Pin | Power Line | 2 | - | 2.5 mH @ 100 kHz | 24A | 2.96mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
PHBC24N-2R1B0039VCMC 39UH 30A 2LN TH |
21 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 39 µH @ 100 kHz | 30A | 6.8mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
PHBC24N-2R0A0219VCMC 219UH 15A 2LN TH |
55 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 219 µH @ 100 kHz | 15A | 19.5mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SCF47X-400-S2R2B007JVIND CMC 1.3MH 40A 1.53MOHM |
48 |
|
Datasheet | Vertical, 6 PC Pin | Power Line | 3 | - | 1.3 mH @ 100 kHz | 40A | 1.53mOhm | 600V | 600V | -40°C ~ 130°C | - | - | - | - | - |
|
|
SCF47X-500-S2R4B005JVIND CMC 0.66MH 50A 0.96MOHM |
46 |
|
Datasheet | Vertical, 6 PC Pin | Power Line | 3 | - | 660 µH @ 100 kHz | 50A | 0.96mOhm | 500V | 500V | -40°C ~ 130°C | - | - | - | - | - |
|
|
SCF47X-500-S2R4B005JHIND CMC 0.66MH 50A 0.96MOHM |
32 |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 660 µH @ 100 kHz | 50A | 0.96mOhm | 600V | 600V | -40°C ~ 130°C | - | - | - | - | - |
|
|
SCF47X-200-S1R8B011JHIND CMC 3.21MH 20A 3.52MOHM |
26 |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 3.21 mH @ 100 kHz | 20A | 3.52mOhm | 600V | 600V | -40°C ~ 130°C | - | - | - | - | - |
|
|
SCF47X-450-S2R3B006JHIND CMC 0.95MH 45A 1.16MOHM |
20 |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 950 µH @ 100 kHz | 45A | 1.16mOhm | 600V | 600V | -40°C ~ 130°C | - | - | - | - | - |
|
|
SCF47X-300-S2R0B009JHIND CMC 2.15MH 30A 2.31MOHM |
15 |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 2.15 mH @ 100 kHz | 30A | 2.31mOhm | 600V | 600V | -40°C ~ 130°C | - | - | - | - | - |
|

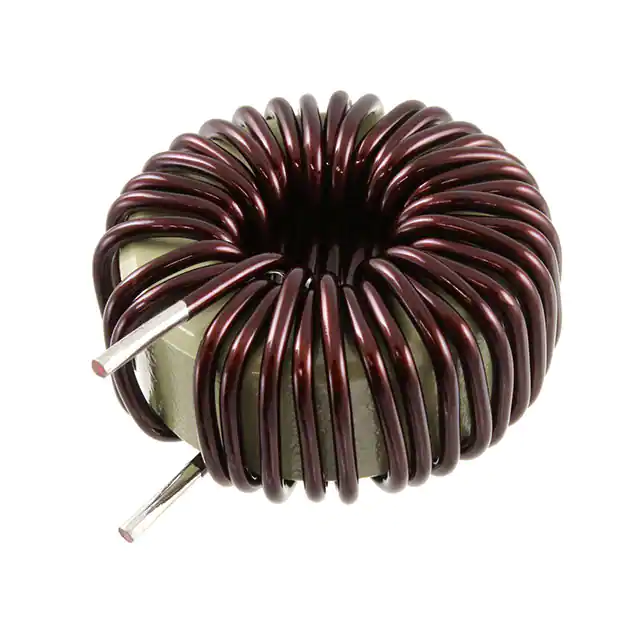

PHBC24W-2R4A0174VCMC 174UH 20A 2LN TH |
16 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 174 µH @ 100 kHz | 20A | 11.8mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SCF56X-400-S2R4B009JHIND CMC 1.72MH 40A 1.84MOHM |
23 |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 1.72 mH @ 100 kHz | 40A | 1.84mOhm | 600V | 600V | -40°C ~ 130°C | - | - | - | - | - |
|
SU9H-02080CMC 8MH 200MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 1 kHz | 200mA | 6Ohm | - | 250V | -25°C ~ 125°C | - | - | - | - | - |
|
EMI2121MTTAGCMC 100MA 2LN SMD ESD |
0 |
|
Datasheet | 8-WFDFN Exposed Pad | Signal Line | 2 | - | - | 100mA | 8Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
SSR10H-22034CMC 3.4MH 2.2A 2LN TH |
40 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 3.4 mH @ 10 kHz | 2.2A | 110mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS21V-040520CMC 52MH 400MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 52 mH @ 1 kHz | 400mA | 5.4Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SN8S-300JACMC 26UH 2A 2LN TH |
81 |
|
Datasheet | Vertical, 2 PC Pin | Power Line | 2 | - | 26 µH @ 100 kHz | 2A | 42mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SSR21NH-08325CMC 32.5MH 800MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 32.5 mH @ 10 kHz | 800mA | 470mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

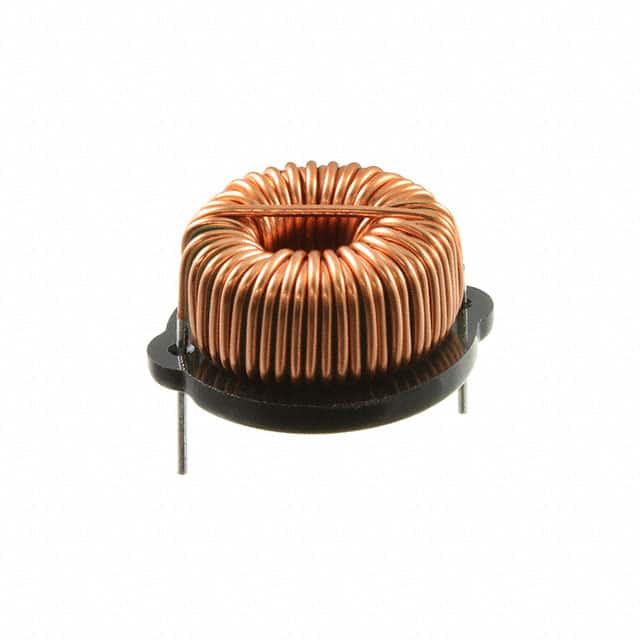

SN8S-50P2NMC 72.0UH 2.0A 0.0750 OHM TH |
79 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 72 µH @ 100 kHz | 2A | 75mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SSR21NHS-12135CMC 13.5MH 1.2A 2LN TH |
68 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 13.5 mH @ 10 kHz | 1.2A | 240mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NHS-M12220CMC 22MH 1.2A 2LN TH |
38 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 22 mH @ 10 kHz | 1.2A | 350mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
