Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSR21NHS-M15164CMC 16.4MH 1.5A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 16.4 mH @ 10 kHz | 1.5A | 230mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NHS-M18125CMC 12.5MH 1.8A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 12.5 mH @ 10 kHz | 1.8A | 190mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SN8D-400CMC 80UH 2A 2LN TH |
0 |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 80 µH @ 100 kHz | 2A | 72mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SSR21NH-M25103CMC 10.3MH 2.5A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 10.3 mH @ 10 kHz | 2.5A | 120mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSHB21HS-R20071CMC 7.1MH 2A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 7.1 mH @ 10 kHz | 2A | 140mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SN8S-40P2NMC 46.0UH 2.0A 0.0600 OHM TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 46 µH @ 100 kHz | 2A | 60mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SS26V-070510CMC 51MH 700MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 51 mH @ 1 kHz | 700mA | 1.4Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SS26V-080350CMC 35MH 800MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 35 mH @ 1 kHz | 800mA | 1Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
LCFE080602G900TGCMC 100MA 2LN 90 OHM SMD ESD |
0 |
|
Datasheet | 0302 (0806 Metric), 6 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 8Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|

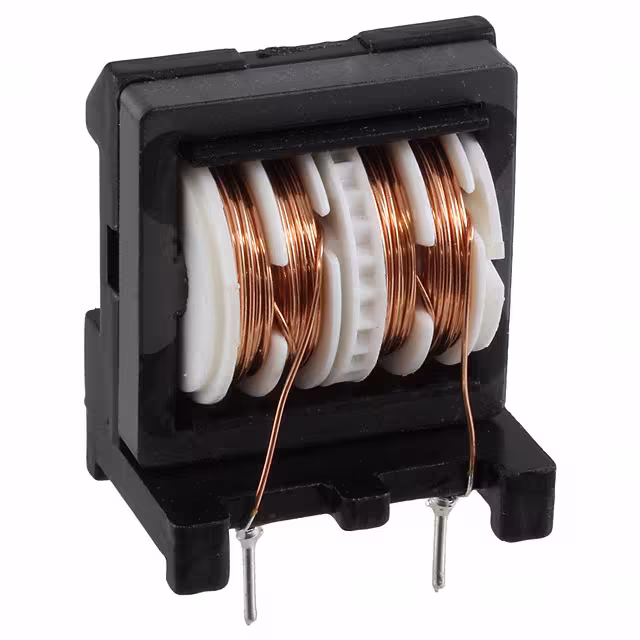

SS24V-R06500-CHCMC 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | - | - | - | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

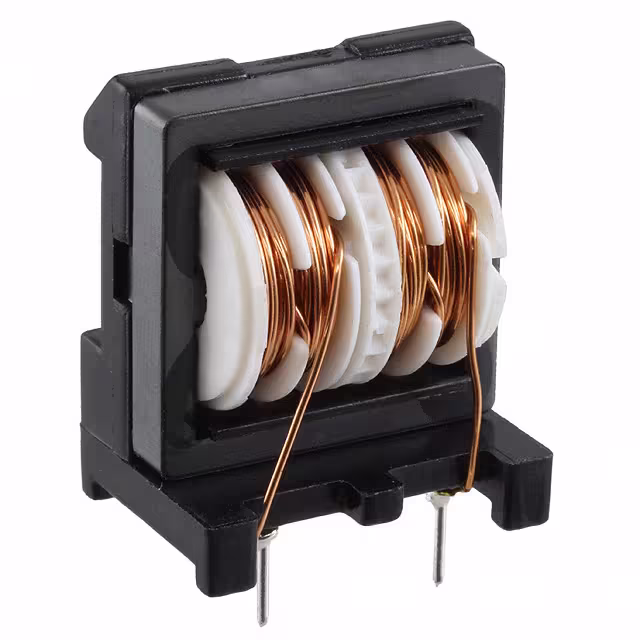

SS24V-R15080-CHCMC 8MH 1.5A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 1 kHz | 1.5A | 240mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

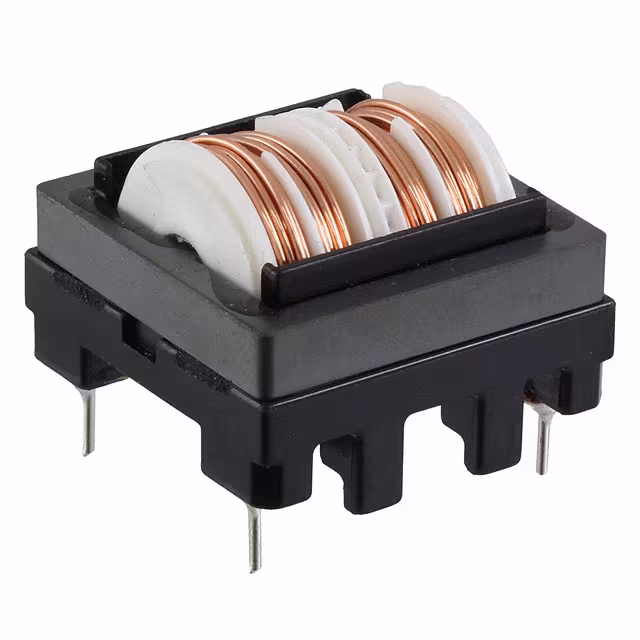

SS28H-20075-CHCMC 7.5MH 2A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 7.5 mH @ 1 kHz | 2A | 220mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SN5-300JBCMC 25UH 1A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 25 µH @ 100 kHz | 1A | 80mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
SS26V-R180123CMC 12.3MH 1.8A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 12.3 mH @ 1 kHz | 1.8A | 300mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSRH24NHS-12500CMC 50MH 1.2A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 50 mH @ 10 kHz | 1.2A | 430mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSRH24NHS-16320CMC 32MH 1.6A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 32 mH @ 10 kHz | 1.6A | 265mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSRH24NHS-30092CMC 9.2MH 3A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 9.2 mH @ 10 kHz | 3A | 79mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
LCF201204A181TGCMC 100MA 4LN 180 OHM SMD |
0 |
|
Datasheet | 0805 (2012 Metric), 8 Lead | Signal Line | 4 | 180 Ohms @ 100 MHz | - | 100mA | 4Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
SS30V-180145CMC 14.5MH 1.8A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 14.5 mH @ 1 kHz | 1.8A | 230mOhm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SN12P-500NMC 100.0UH 5.0A 0.0400 OHM TH |
0 |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 100 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
