Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN10-400JCMC 72UH 3A 2LN TH |
0 |
|
Datasheet | Vertical, 2 PC Pin | Power Line | 2 | - | 72 µH @ 100 kHz | 3A | 56mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
PHBC8S-0R6A0024VCMC 24UH 2A 2LN TH |
0 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 24 µH @ 100 kHz | 2A | 41.1mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
EMI2124MTTAGCMC 100MA 2LN SMD ESD |
0 |
|
Datasheet | 8-WFDFN Exposed Pad | Signal Line | 2 | - | - | 100mA | 8Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
HHBC8S-0R6A0024VCMC 24UH 2A 2LN TH |
0 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 24 µH @ 100 kHz | 2A | 41.1mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
PHBC8S-0R6A0067VCMC 67UH 2A 2LN TH |
0 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 67 µH @ 100 kHz | 2A | 67.8mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

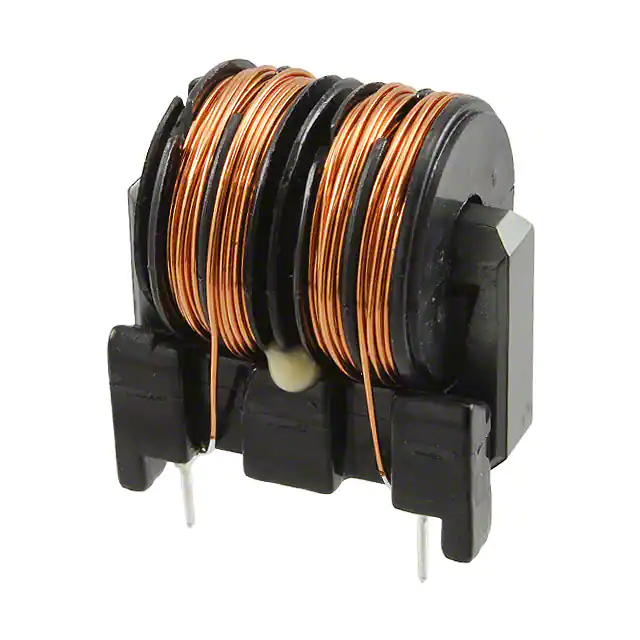

SS30V-R400028CMC 2.8MH 4A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.8 mH @ 1 kHz | 4A | 70mOhm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
ST-101F4CMC, TROID, 60000OHM, 3500MOHM |
0 |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SC22-05-30JHCMC 3MH 5A 2LN TH |
0 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 3 mH @ 10 kHz | 5A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
LCF300806A750TGCMC 100MA 6LN 75 OHM SMD |
0 |
|
Datasheet | 1203 (3008 Metric), 12 Lead | Signal Line | 6 | 75 Ohms @ 100 MHz | - | 100mA | 6Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
HHBC12-1R0A0028VCMC 28UH 5A 2LN TH |
0 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 28 µH @ 100 kHz | 5A | 21.1mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
LCFE160804A180TGCMC 100MA 4LN 18 OHM SMD ESD |
0 |
|
Datasheet | 0603 (1608 Metric), 10 Lead | Signal Line | 4 | 18 Ohms @ 100 MHz | - | 100mA | 6Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
HHBC13-1R2A0045VCMC 45UH 6A 2LN TH |
0 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 45 µH @ 100 kHz | 6A | 18.3mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SC-05-700JHCMC 7MH 5A 2LN TH |
0 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 7 mH @ 10 kHz | 5A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SCR-090-1R2A015JCMC 1.5MH 9A 2LN TH |
0 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 10 kHz | 9A | - | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SN13-400CMC 92UH 6A 2LN TH |
0 |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 92 µH @ 100 kHz | 6A | 30mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
HHBC14-1R2A0067VCMC 67UH 8A 2LN TH |
0 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 67 µH @ 100 kHz | 8A | 22.2mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SN14P-770HNMC 550.0UH 3.0A 0.0850 OHM TH |
0 |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 550 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SCT19XV-120-1R2A007JHCMC 180UH 12A 2LN TH AEC-Q200 |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 180 µH @ 100 kHz | 12A | 4.19mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT19XV-150-1R3A006JHCMC 134UH 15A 2LN TH AEC-Q200 |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 134 µH @ 100 kHz | 15A | 3.01mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SN16-400JACMC 108UH 8A 2LN TH |
0 |
|
Datasheet | Vertical, 2 PC Pin | Power Line | 2 | - | 108 µH @ 100 kHz | 8A | 27mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
