Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

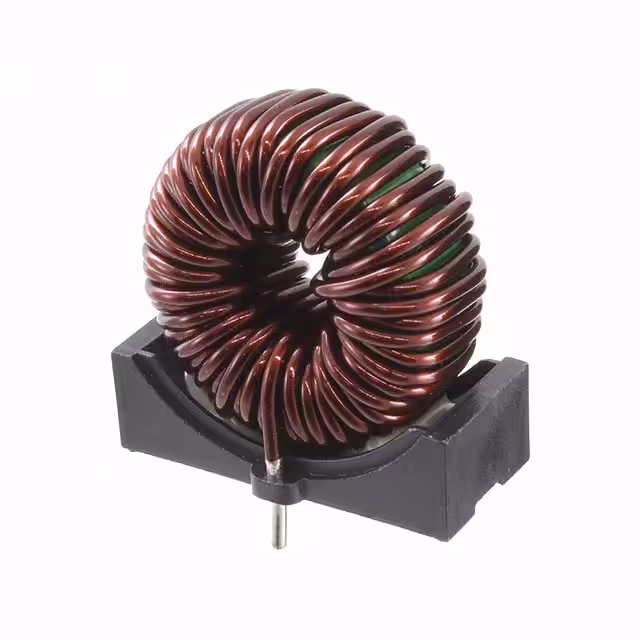

SN16-500JACMC 168UH 8A 2LN TH |
0 |
|
Datasheet | Vertical, 2 PC Pin | Power Line | 2 | - | 168 µH @ 100 kHz | 8A | 31mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SC-12-15JHCMC 1.5MH 12A 2LN TH |
0 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 100 kHz | 12A | - | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
PHBC14-1R2A0187VCMC 187UH 8A 2LN TH |
0 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 187 µH @ 100 kHz | 8A | 37.6mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

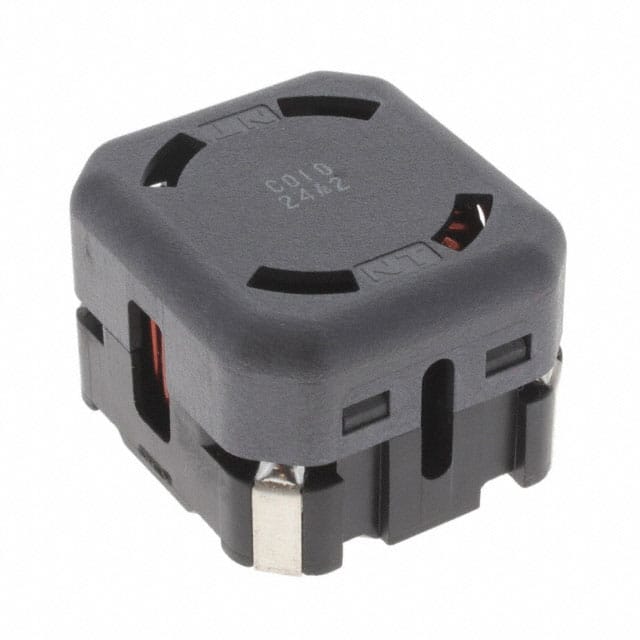

SPF-100-1R1A010CMC 1UH 10MA 2LN SMD |
0 |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | - | 1 µH @ 10 kHz | 10A | 10mOhm | 150V | - | -40°C ~ 120°C | - | - | - | - | - |
|

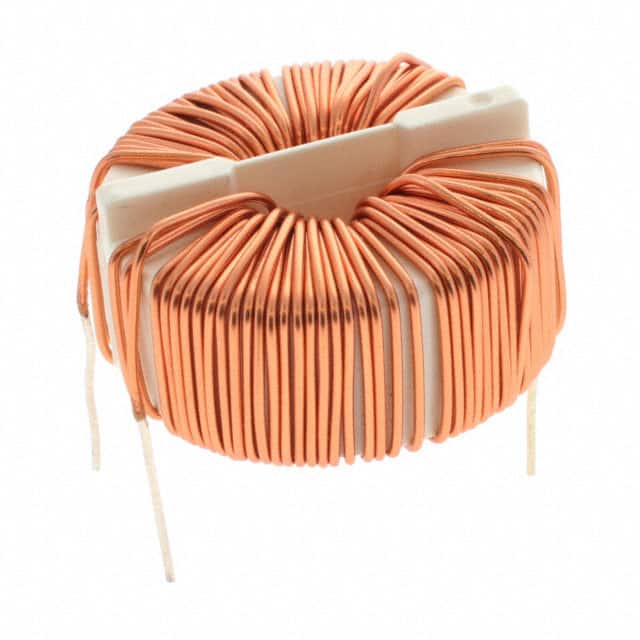

SC-05-D150HCMC 1.5MH 5A 2LN TH |
0 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 100 kHz | 5A | 90mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
PHBC20-1R7A0152VCMC 152UH 12A 2LN TH |
4 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 152 µH @ 100 kHz | 12A | 20.4mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

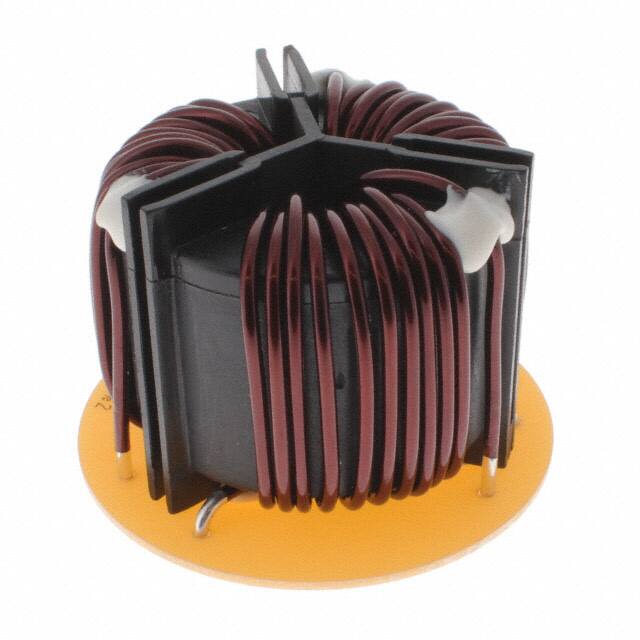

SCR47B-200-S2R0A025JH-PCMC 2.5MH 20A 3LN TH |
0 |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 2.5 mH @ 10 kHz | 20A | 7.8mOhm | 250V | 250V | 25°C ~ 120°C | - | - | - | - | - |
|
HHBC24W-2R4A0174VCMC 174UH 20A 2LN TH |
0 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 174 µH @ 100 kHz | 20A | 11.8mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SC04H102NB25SFERNICE INDUCTIVES |
0 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SC04H471NB25SFERNICE INDUCTIVES |
0 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SC06V332NB25SFERNICE INDUCTIVES |
0 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SC03H471NB25SFERNICE INDUCTIVES |
0 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
EMI4182MTTAGCMC 100MA 4LN SMD ESD |
0 |
|
- |
10-WDFN | Signal Line | 4 | - | - | 100mA | 8Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
EMI4173MTTAGCOMMON MODE CHOKE SMD ESD |
0 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SP5002-06TTGCMC 100MA 6LN SMD ESD AEC-Q101 |
0 |
|
Datasheet | 16-WFDFN | Signal Line | 6 | - | - | 100mA | - | - | - | -40°C ~ 125°C | - | - | TVS Diode ESD Protection | - | - |
|
LCF160804A750TGCMC 100MA 4LN 75 OHM SMD |
0 |
|
Datasheet | 0603 (1608 Metric), 8 Lead | Signal Line | 4 | 75 Ohms @ 100 MHz | - | 100mA | 6Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
LCF121002A650TGCMC 100MA 2LN 65 OHM SMD |
0 |
|
Datasheet | 0504 (1210 Metric), 4 Lead | Signal Line | 2 | 65 Ohms @ 100 MHz | - | 100mA | 4Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
LCF121002B650TGCMC 250MA 2LN 65 OHM SMD |
0 |
|
Datasheet | 0504 (1210 Metric), 4 Lead | Signal Line | 2 | 65 Ohms @ 100 MHz | - | 250mA | 4Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
LCF121002A750TGCMC 100MA 2LN 75 OHM SMD |
0 |
|
Datasheet | 0504 (1210 Metric), 4 Lead | Signal Line | 2 | 75 Ohms @ 100 MHz | - | 100mA | 4Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
LCF201202A121TGCMC 100MA 2LN 120 OHM SMD |
0 |
|
Datasheet | 0805 (2012 Metric), 4 Lead | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 100mA | 4Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
