Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC-15-200CMC 2MH 15A 2LN TH |
72 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 15A | 12mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-20-10JHCMC 1MH 20A 2LN TH |
29 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 20A | - | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|

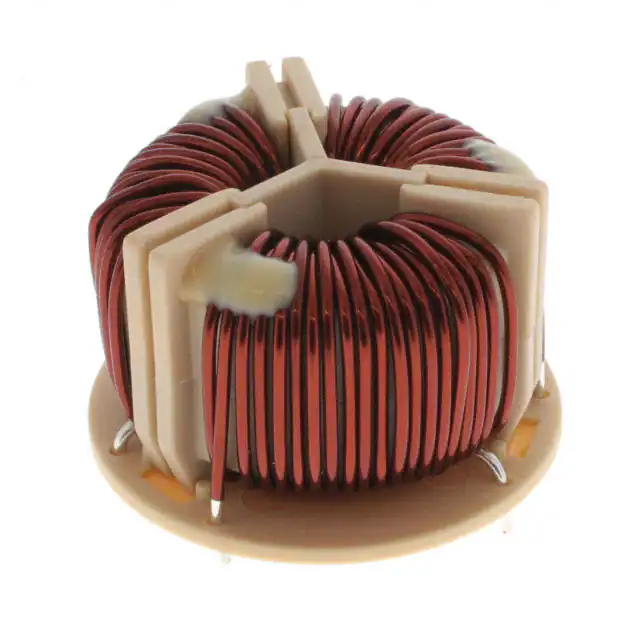

SC-10-S30JHCMC 3MH 10A 3LN TH |
40 |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 3 mH @ 10 kHz | 10A | 25mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

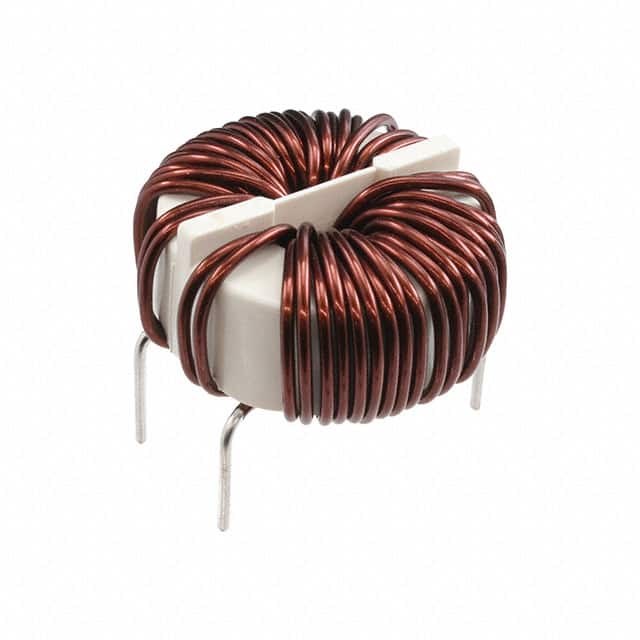

SC-15-E350HCMC 3.5MH 15A 2LN TH |
48 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 3.5 mH @ 100 kHz | 15A | 20mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

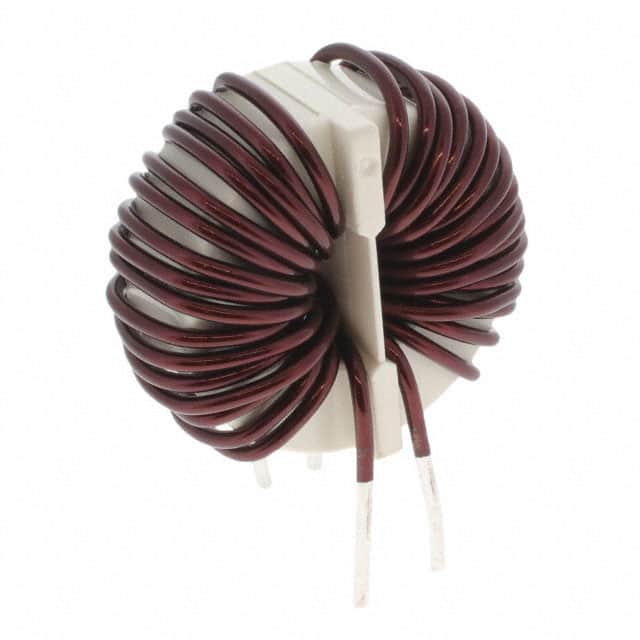

SC-20-201CMC 2MH 20A 2LN TH |
23 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 20A | 10mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SCF25XV-100-1R3A016JHCMC 6.3MH 10A 2LN TH AEC-Q200 |
87 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 6.3 mH @ 100 kHz | 10A | 11.1mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SC-20-E20JHCMC 2MH 20A 2LN TH |
67 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 20A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SCF29XV-180-1R8A013JHCMC 1.9MH 18A 2LN TH AEC-Q200 |
71 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1.9 mH @ 100 kHz | 18A | 4.1mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF29XV-200-2R0A011JHCMC 1.3MH 20A 2LN TH AEC-Q200 |
16 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1.3 mH @ 100 kHz | 20A | 2.84mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF25XV-240-2R0A006JVCMC 900UH 24A 2LN TH AEC-Q200 |
46 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 900 µH @ 100 kHz | 24A | 1.84mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SC-10-S016JHCMC 168UH 10A 3LN TH |
27 |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 168 µH @ 10 kHz | 10A | 3mOhm | 500V | 500V | -40°C ~ 120°C | - | - | - | - | - |
|
SCF31B-200-2R0A020JHCMC 2MH 20A 2LN TH |
73 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 20A | 5.2mOhm | 500V | 500V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SC-26-S010JHCMC 101.5UH 26A 3LN TH |
44 |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 101.5 µH @ 10 kHz | 26A | 1.5mOhm | 500V | 500V | -40°C ~ 120°C | - | - | - | - | - |
|

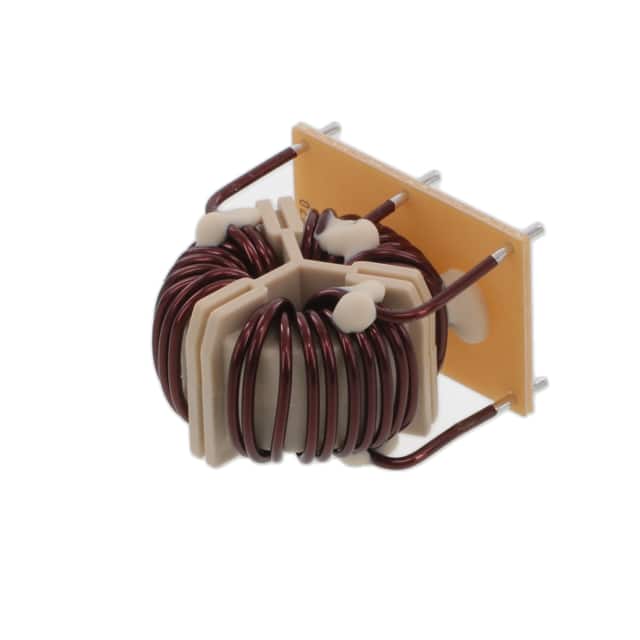

SCF31B-180-S1R7A013JCMC 1.5MH 18A 3LN TH |
83 |
|
Datasheet | Vertical, 6 PC Pin | Power Line | 3 | - | 1.5 mH @ 100 kHz | 18A | 6.5mOhm | 500V | 500V | -25°C ~ 120°C | - | - | - | - | - |
|
SCR29XV-150-1R7A015JHCMC 1.37MH 15A 2LN TH AEC-Q200 |
80 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1.37 mH @ 100 kHz | 15A | 5.14mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCF25XV-080-1R2A018JHCMC 7.9MH 8A 2LN TH AEC-Q200 |
95 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 7.9 mH @ 100 kHz | 8A | 14.7mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF29XV-200-2R0A011JVCMC 1.3MH 20A 2LN TH AEC-Q200 |
81 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.3 mH @ 100 kHz | 20A | 2.73mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF29XV-150-1R7A015JHCMC 2.5MH 15A 2LN TH AEC-Q200 |
80 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 100 kHz | 15A | 5.14mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF33B-400-1R6C009JHCMC 900UH 40A 2LN TH |
38 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 900 µH @ 100 kHz | 40A | 1.7mOhm | 500V | 500V | -25°C ~ 120°C | - | - | - | - | - |
|
SCF47B-600-2R2C0005JHCMC 50UH 60A 2LN TH |
69 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 50 µH @ 100 kHz | 60A | 0.31mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
