Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

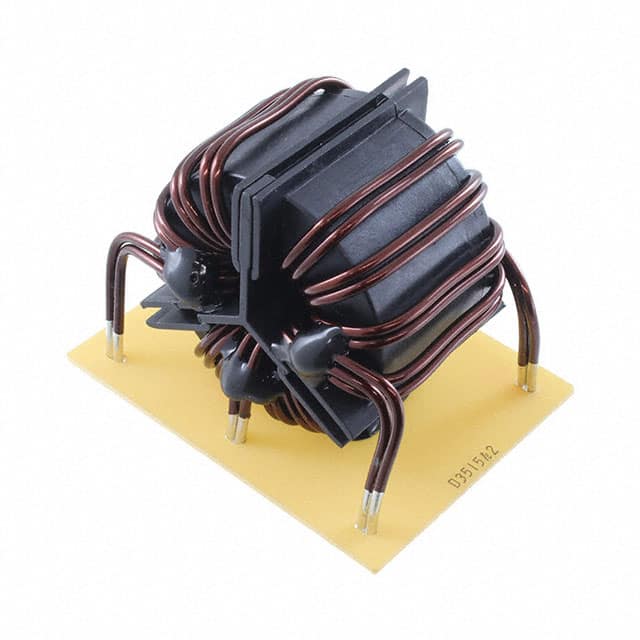

SC-35-SD040JCMC 40UH 35A 3LN TH |
19 |
|
Datasheet | Vertical, 6 PC Pin | Power Line | 3 | - | 40 µH @ 100 kHz | 35A | 2mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
HHBC24W-2R1B0065VCMC 65UH 30A 2LN TH |
45 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 65 µH @ 100 kHz | 30A | 6.2mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SCR47B-350-S2R0B010JCMC 1MH 35A 3LN TH |
32 |
|
Datasheet | Vertical, 6 PC Pin | Power Line | 3 | - | 1 mH @ 10 kHz | 35A | 2.5mOhm | 500V | 500V | -25°C ~ 120°C | - | - | - | - | - |
|

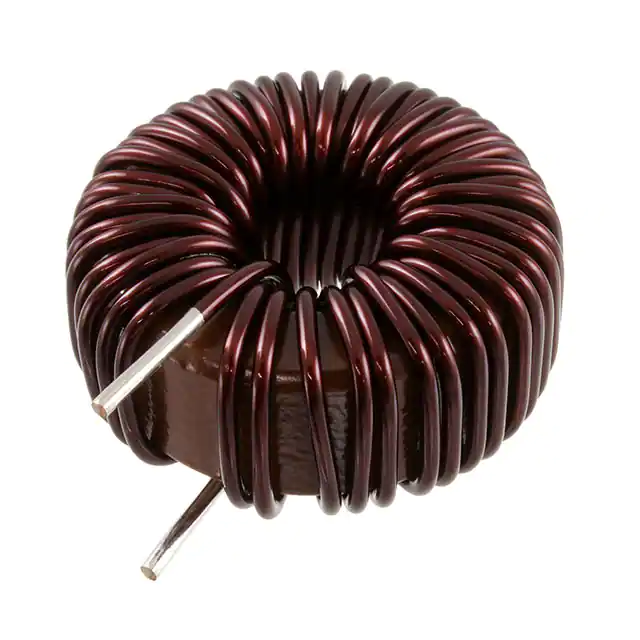

HHBC24W-2R1A0311VCMC 311UH 15A 2LN TH |
54 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 311 µH @ 100 kHz | 15A | 20.1mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SU9V-07010CMC 1MH 700MA 2LN TH |
1,000 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 700mA | 600mOhm | - | 250V | -25°C ~ 125°C | - | - | - | - | - |
|

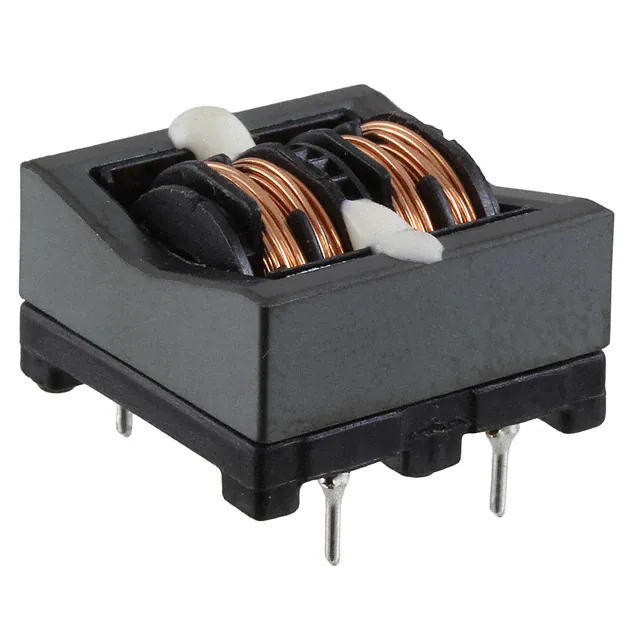

SSR21HS-12115CMC 11.5MH 1.2A 2LN TH |
74 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 11.5 mH @ 10 kHz | 1.2A | 270mOhm | 250V | - | -25°C ~ 120°C | - | - | - | - | - |
|
SSR10V-07330CMC 33MH 700MA 2LN TH |
76 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 33 mH @ 10 kHz | 700mA | 900mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SU10VD-10020CMC 20UH 1A 2LN TH |
62 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 20 µH @ 1 kHz | 1A | 120mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSHB21H-R051100CMC 110MH 500MA 2LN TH |
95 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 110 mH @ 10 kHz | 500mA | 2.1Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS11H-R17036-CHCMC 3.6MH 1.7A 2LN TH |
76 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 3.6 mH @ 1 kHz | 1.7A | 190mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB10HS-07099CMC 9.9MH 700MA 2LN TH |
30 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 9.9 mH @ 10 kHz | 700mA | 810mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SSHB10HS-11043CMC 4.3MH 1.1A 2LN TH |
28 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 4.3 mH @ 10 kHz | 1.1A | 350mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SSHB10H-05212CMC 21.2MH 500MA 2LN TH |
26 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 21.2 mH @ 10 kHz | 500mA | 1.7Ohm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SSHB10HS-22011CMC 2.2A 2LN TH |
27 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 1.1 mH @ 10 kHz | 2.2A | 110mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
SSR21NHS-M031500CMC 150MH 300MA 2LN TH |
73 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 150 mH @ 10 kHz | 300mA | 2.7Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
ST-201CMC 200MA 2LN 1.5K OHM TH |
69 |
|
Datasheet | Vertical, No Base, 4 PC Pin | - | 2 | 1.5 kOhms @ 7 MHz | - | 200mA | 100mOhm | 50V | - | -20°C ~ 75°C | - | - | - | - | - |
|
|
SSR21NHS-10160CMC 16MH 1A 2LN TH |
93 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 16 mH @ 10 kHz | 1A | 290mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SH-202CMC 1.5UH 3A 2LN TH |
65 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.5 µH @ 100 kHz | 3A | 20mOhm | 150V | - | -25°C ~ 80°C | - | - | - | - | - |
|
SSRH24NHS-45041CMC 4.1MH 4.5A 2LN TH |
28 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 4.1 mH @ 10 kHz | 4.5A | 41mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS26V-R080470CMC 47MH 800MA 2LN TH |
3 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 47 mH @ 1 kHz | 800mA | 1Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
