Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SU10VFC-R07088CMC 8.8MH 700MA 2LN TH |
45 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 8.8 mH @ 1 kHz | 700mA | 1.1Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
EMI8043MUTAGCMC 100MA 6LN SMD ESD |
46 |
|
Datasheet | 16-XFDFN | Signal Line | 6 | - | - | 100mA | 6Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
SC-03-E016GCMC 163.8UH 3A 2LN TH |
69 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 163.8 µH @ 10 kHz | 3A | 8.51mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SSRH24NH-20310CMC 31MH 2A 2LN TH |
49 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 31 mH @ 10 kHz | 2A | 214mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-08-E075JCMC 750UH 8A 2LN TH |
83 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 750 µH @ 10 kHz | 8A | 12.7mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-07-04GJCMC 360UH 7A 2LN TH |
56 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 360 µH @ 100 kHz | 7A | 14mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-05-D030CMC 30UH 5A 2LN TH |
85 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 30 µH @ 100 kHz | 5A | 20mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-04-1600CMC 16MH 4A 2LN TH |
93 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 16 mH @ 1 kHz | 4A | 85mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|

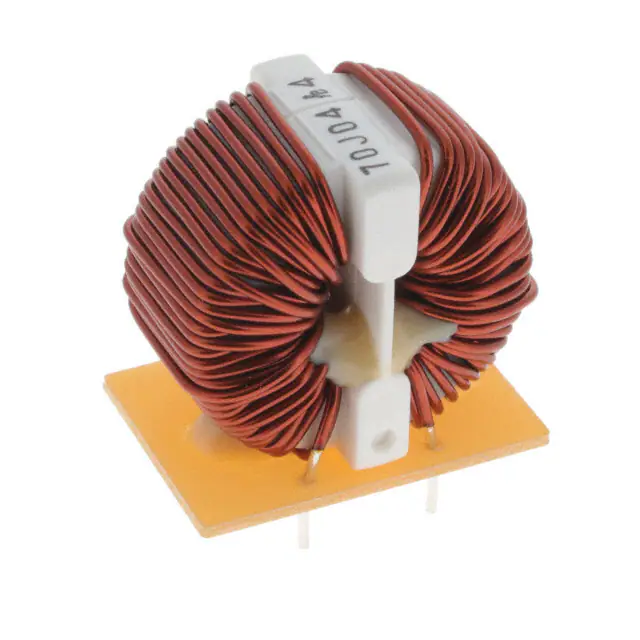

SC22-05-70JCMC 7MH 5A 2LN TH |
61 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 7 mH @ 10 kHz | 5A | 60mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC22-06-60JCMC 6MH 6A 2LN TH |
98 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 6 mH @ 10 kHz | 6A | 46mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-18-085JCMC 850UH 18A 2LN TH |
67 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 850 µH @ 10 kHz | 18A | 6mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SCR-040-0R8A100JHCMC 10MH 4A 2LN TH |
43 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 4A | 66mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SCR-100-1R2A010JHCMC 1MH 10A 2LN TH |
10 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 10A | 9.6mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SCR22-060-1R0A075JCMC 7.5MH 6A 2LN TH |
35 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 7.5 mH @ 10 kHz | 6A | 42mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SCR25-200-1R7A008JHCMC 800UH 20A 2LN TH |
66 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 800 µH @ 10 kHz | 20A | 4.7mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

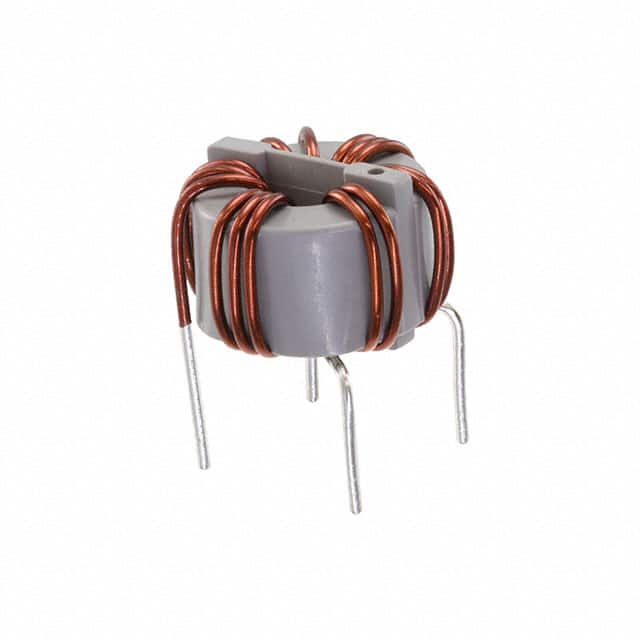

SC-15-D030CMC 30UH 15A 2LN TH |
28 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 30 µH @ 100 kHz | 15A | 12mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SCT29XV-050-1R0A044JHCMC 6.47MH 5A 2LN TH AEC-Q200 |
50 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 6.47 mH @ 100 kHz | 5A | 39.9mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SC-30-050HCMC 500UH 30A 2LN TH |
31 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 500 µH @ 10 kHz | 30A | 3mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-18-290CMC 2.9MH 18A 2LN TH |
80 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 2.9 mH @ 100 kHz | 18A | 25mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-30-D010CMC 10UH 30A 2LN TH |
87 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 10 µH @ 100 kHz | 30A | 1.8mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
