Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSR21NH-07405CMC 40.5MH 700MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 40.5 mH @ 10 kHz | 700mA | 610mOhm (Typ) | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NH-15097CMC 9.7MH 1.5A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 9.7 mH @ 10 kHz | 1.5A | 140mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR21NV-M041500CMC 150MH 400MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 150 mH @ 10 kHz | 400mA | 2Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSHB21HS-R15130CMC 13MH 1.5A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 13 mH @ 10 kHz | 1.5A | 280mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS26V-R150162CMC 16.2MH 1.5A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 16.2 mH @ 1 kHz | 1.5A | 400mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

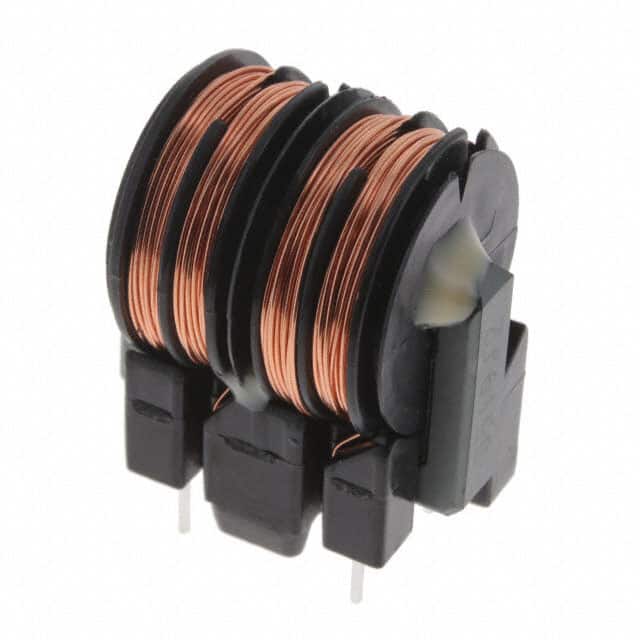

SS26V-050880CMC 88MH 500MA 2LN TH |
309 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 88 mH @ 1 kHz | 500mA | 2.4Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NV-031810CMC 181MH 300MA 2LN TH |
258 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 181 mH @ 10 kHz | 300mA | 2.85Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR21NHS-M06890CMC 89MH 600MA 2LN TH |
240 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 89 mH @ 10 kHz | 600mA | 1.35Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

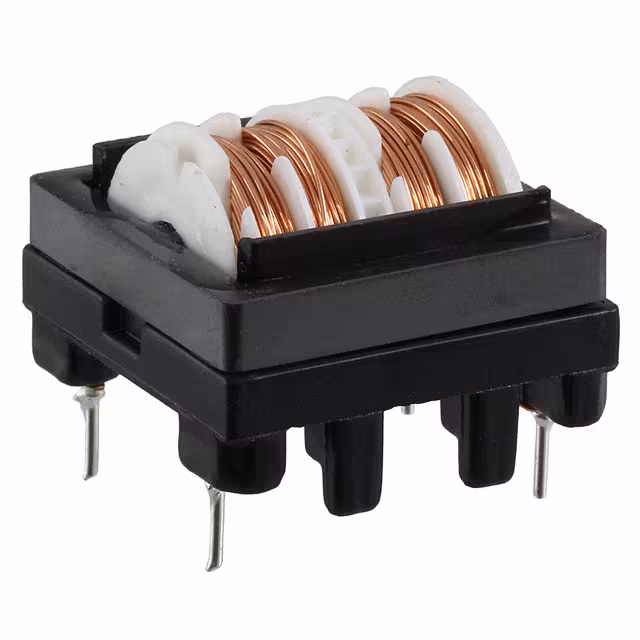

SS24H-R05600-CHCMC 60MH 500MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 60 mH @ 1 kHz | 500mA | 1.75Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

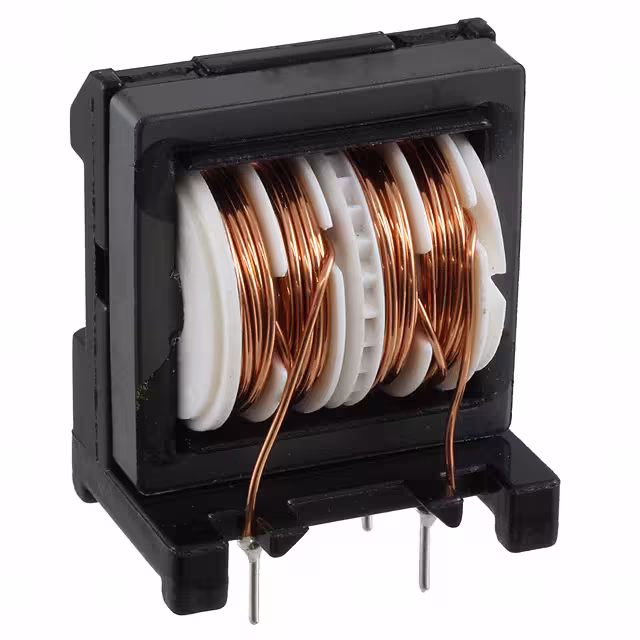

SS28V-20075-CHCMC 7.5MH 2A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 7.5 mH @ 1 kHz | 2A | 220mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

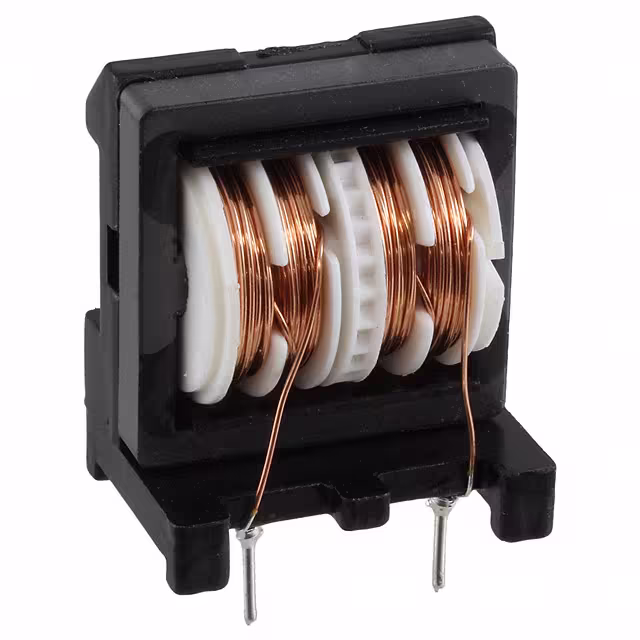

SS24V-K06450-CHCMC 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | - | - | - | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR21NVS-06385CMC 38.5MH 600MA 2LN TH |
267 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 38.5 mH @ 10 kHz | 600mA | 710mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR21NHS-07290CMC 29MH 700MA 2LN TH |
240 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 29 mH @ 10 kHz | 700mA | 530mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NHS-20034CMC 3.4MH 2A 2LN TH |
240 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 3.4 mH @ 10 kHz | 2A | 70mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NHS-031590CMC 159MH 300MA 2LN TH |
170 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 159 mH @ 10 kHz | 300mA | 2.85Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
PHBC8S-0R6A0043VCMC 43UH 2A 2LN TH |
0 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 43 µH @ 100 kHz | 2A | 54.1mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SSR21NVS-M031500CMC 150MH 300MA 2LN TH |
270 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 150 mH @ 10 kHz | 300mA | 2.7Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NHS-M08475CMC 47.5MH 800MA 2LN TH |
237 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 47.5 mH @ 10 kHz | 800mA | 680mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NH-M07890CMC 89MH 700MA 2LN TH |
233 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 89 mH @ 10 kHz | 700mA | 1.05Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NH-M08680CMC 68MH 800MA 2LN TH |
204 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 68 mH @ 10 kHz | 800mA | 800mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
