Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCF080602A750TGCMC 100MA 2LN 75 OHM SMD |
19,869 |
|
Datasheet | 0302 (0806 Metric), 4 Lead | Signal Line | 2 | 75 Ohms @ 100 MHz | - | 100mA | 5Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
LCF080602B750TGCMC 110MA 2LN 75 OHM SMD |
20,099 |
|
Datasheet | 0302 (0806 Metric), 4 Lead | Signal Line | 2 | 75 Ohms @ 100 MHz | - | 110mA | 5Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
EMI4182MUTAGCMC 100MA 4LN SMD ESD |
0 |
|
- |
10-UFDFN | Signal Line | 4 | - | - | 100mA | 8Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
LCF121002B350TGCMC 200MA 2LN 35 OHM SMD |
6,030 |
|
Datasheet | 0504 (1210 Metric), 4 Lead | Signal Line | 2 | 35 Ohms @ 100 MHz | - | 200mA | 4Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
EMI4172MTTAGCMC 100MA 4LN SMD ESD |
0 |
|
Datasheet | 10-WDFN | Signal Line | 4 | - | - | 100mA | 8Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
EMI4183MUTAGCMC 100MA 6LN SMD ESD |
0 |
|
Datasheet | 16-UFDFN | Signal Line | 6 | - | - | 100mA | 8Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
ECMF02-3F3CMC 3LN SMD ESD |
1,574 |
|
- |
6-UFBGA, FCBGA | Signal Line | 3 | - | - | - | 4.5Ohm | - | - | -30°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
EMI4183MTTAGCMC 100MA 6LN SMD ESD |
0 |
|
Datasheet | 16-WFDFN Exposed Pad | Signal Line | 6 | - | - | 100mA | 8Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
EMI4163MUTAGCMC 100MA 6LN SMD ESD |
0 |
|
Datasheet | 16-UFDFN | Signal Line | 6 | - | - | 100mA | 8Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
EMI4162MUTAGCMC 100MA 4LN SMD ESD |
0 |
|
Datasheet | 10-UFDFN | Signal Line | 4 | - | - | 100mA | 8Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
NUC2401MNTAGCMC 100MA 2LN 90 OHM SMD ESD |
0 |
|
Datasheet | 8-VFDFN Exposed Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 5Ohm | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
LCF080602G900TGCMC 100MA 2LN 90 OHM SMD |
19,197 |
|
Datasheet | 0302 (0806 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 14Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
LCF121002C900TGCMC 150MA 2LN 90 OHM SMD |
6,643 |
|
Datasheet | 0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 150mA | 4Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
LCF121002D900TGCMC 160MA 2LN 90 OHM SMD |
7,495 |
|
Datasheet | 0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 160mA | 4Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
EMI4184MUTAGCMC 100MA 8LN SMD ESD |
0 |
|
Datasheet | 20-UFDFN | Signal Line | 8 | - | - | 100mA | 8Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
EMI2180MTTBGCMC 2LN SMD ESD |
3,000 |
|
Datasheet | 6-WFDFN Exposed Pad | Signal Line | 2 | - | - | - | 5Ohm | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
LCFE160804A750TGCMC 100MA 4LN 75 OHM SMD ESD |
2,052 |
|
Datasheet | 0603 (1608 Metric), 10 Lead | Signal Line | 4 | 75 Ohms @ 100 MHz | - | 100mA | 6Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|

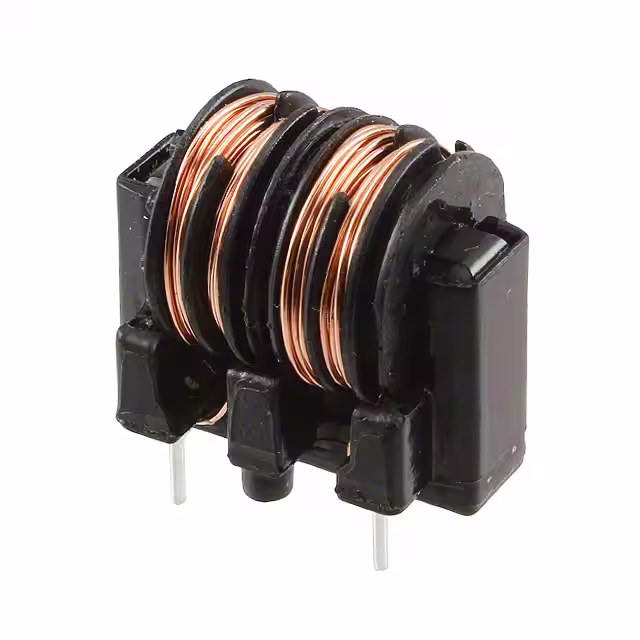

SS17VA-R10025CMC 2.5MH 1A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 1 kHz | 1A | 380mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS20H-10080CMC 8MH 1A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 1 kHz | 1A | 420mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
LCF201204B101TGCMC 120MA 4LN 100 OHM SMD |
8,090 |
|
Datasheet | 0805 (2012 Metric), 8 Lead | Signal Line | 4 | 100 Ohms @ 100 MHz | - | 120mA | 4Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
