Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSHB21HS-R07550CMC 55MH 700MA 2LN TH |
360 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 55 mH @ 10 kHz | 700mA | 1.03Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB21HS-R18095CMC 9.5MH 1.8A 2LN TH |
180 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 9.5 mH @ 10 kHz | 1.8A | 200mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB21HS-R30028CMC 2.8MH 3A 2LN TH |
178 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 2.8 mH @ 10 kHz | 3A | 60mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SN8D-500JBCMC 125UH 2A 2LN TH |
184 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 125 µH @ 100 kHz | 2A | 100mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
ST-204A3CMC, TROID, 1000OHM, 170MOHM |
200 |
|
Datasheet | Horizontal, 8 PC Pin | - | 4 | 1 kOhms @ 7 MHz | - | 500mA | 170mOhm | 50V | - | -20°C ~ 75°C | - | - | - | - | - |
|

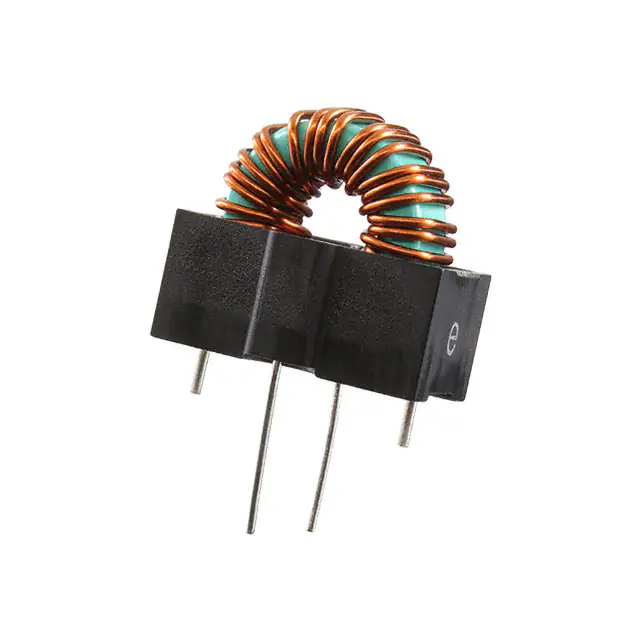

SN8S-400JBCMC 46UH 2A 2LN TH |
130 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 46 µH @ 100 kHz | 2A | 70mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SC-02-200CMC 2MH 2A 2LN TH |
485 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 2A | 110mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SN5-450JBCMC 64UH 1A 2LN TH |
190 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 64 µH @ 100 kHz | 1A | 110mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SC-04-E60JKHCMC 6MH 4A 2LN TH |
195 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 6 mH @ 10 kHz | 4A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SCR-080-1R1A020JCMC 2MH 8A 2LN TH |
422 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 8A | 15.9mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS30V-R250092CMC 9.2MH 2.5A 2LN TH |
200 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 9.2 mH @ 1 kHz | 2.5A | 160mOhm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SN8S-300JBCMC 26UH 2A 2LN TH |
176 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 26 µH @ 100 kHz | 2A | 55mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
SCR-030-0R6A170JCMC 15MH 3A 2LN TH |
240 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 3A | - | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SCR-020-0R55A250JCMC 25MH 2A 2LN TH |
217 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 25 mH @ 10 kHz | 2A | 200mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-10-15J-MICMC 1.5MH 10A 2LN TH |
177 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 100 kHz | 10A | 15.7mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SN12-500CMC 100UH 5A 2LN TH |
338 |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 100 µH @ 100 kHz | 5A | 40mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
SCR-100-1R2A010JCMC 1MH 10A 2LN TH |
240 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 10A | 9.6mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SCR-070-1R0A030JHCMC 3MH 7A 2LN TH |
200 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 3 mH @ 10 kHz | 7A | 23mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SCR-090-1R2A015JHCMC 1.5MH 9A 2LN TH |
199 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 10 kHz | 9A | - | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
HHBC10-0R8A0038VCMC 38UH 3A 2LN TH |
422 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 38 µH @ 100 kHz | 3A | 31.2mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
