Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SS21V-R400005CMC 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | - | - | - | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
LCF201204C101TGCMC 130MA 4LN 100 OHM SMD |
7,777 |
|
Datasheet | 0805 (2012 Metric), 8 Lead | Signal Line | 4 | 100 Ohms @ 100 MHz | - | 130mA | 4Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
SN3-100NMC 2.5UH 3.0A 0.0250 OHM TH |
232 |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 2.5 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SSR21NHS-08235CMC 23.5MH 800MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 23.5 mH @ 10 kHz | 800mA | 420mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR21HS-07245CMC 24.5MH 700MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 24.5 mH @ 10 kHz | 700mA | 590mOhm | 250V | - | -25°C ~ 120°C | - | - | - | - | - |
|
LCFE080602W500TGCMC 100MA 2LN 50 OHM SMD ESD |
18,006 |
|
Datasheet | 0302 (0806 Metric), 6 Lead | Signal Line | 2 | 50 Ohms @ 100 MHz | - | 100mA | 7Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
SS24H-R10170-CHCMC 17MH 1A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 17 mH @ 1 kHz | 1A | 550mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

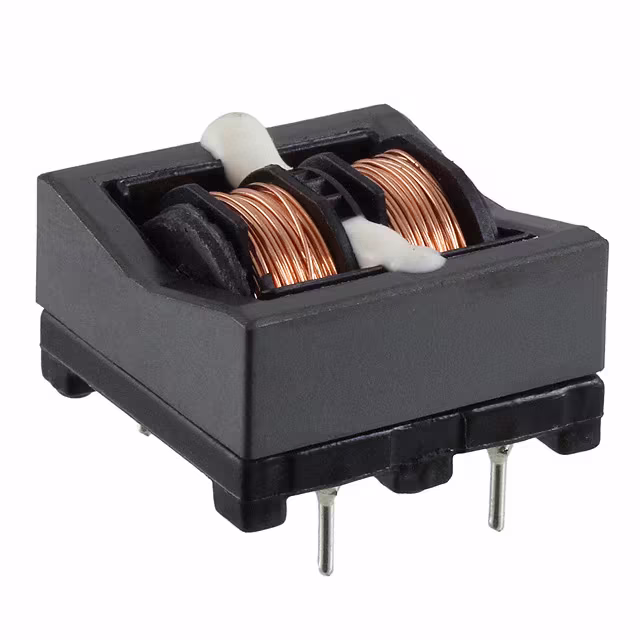

SSR21H-06425CMC 42.5MH 600MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 42.5 mH @ 10 kHz | 600mA | 890mOhm | 250V | - | -25°C ~ 120°C | - | - | - | - | - |
|

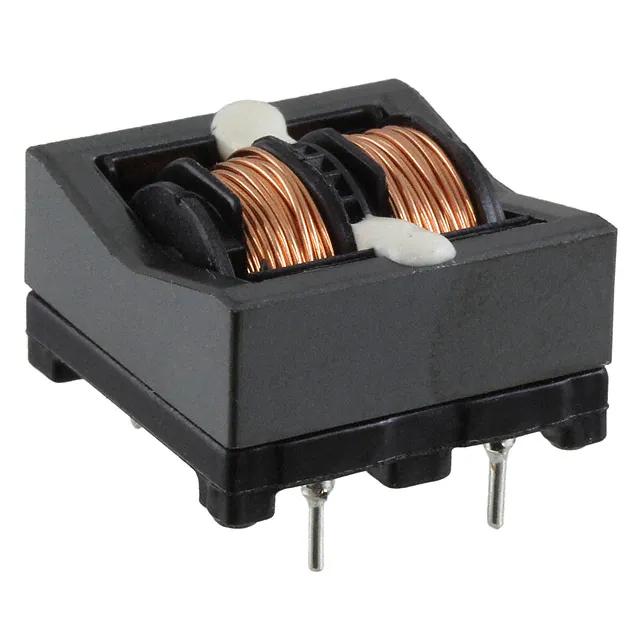

SSR21H-10215CMC 21.5MH 1A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 21.5 mH @ 10 kHz | 1A | 410mOhm | 250V | - | -25°C ~ 120°C | - | - | - | - | - |
|
|
LCFE080602A250TGCMC 100MA 2LN 25 OHM SMD ESD |
15,447 |
|
Datasheet | 0302 (0806 Metric), 6 Lead | Signal Line | 2 | 25 Ohms @ 100 MHz | - | 100mA | 5Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
SSHB21HS-18046CMC 4.6MH 1.8A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 4.6 mH @ 10 kHz | 1.8A | 200mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
EMI8132MUTAGCMC 100MA 4LN SMD ESD |
3,000 |
|
Datasheet | 10-XFDFN | Signal Line | 4 | - | - | 100mA | 6Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
SSR10HS-07265CMC 26.5MH 700MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 26.5 mH @ 10 kHz | 700mA | 850mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR10HS-17048CMC 4.8MH 1.7A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 4.8 mH @ 10 kHz | 1.7A | 170mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS11VL-R11076CMC 7.6MH 1.1A 2LN TH |
296 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 7.6 mH @ 1 kHz | 1.1A | 400mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR10HS-11110CMC 11MH 1.1A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 11 mH @ 10 kHz | 1.1A | 330mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
EMI8131MUTAGCMC 100MA 2LN SMD ESD |
1,543 |
|
Datasheet | 6-XFDFN | Signal Line | 2 | - | - | 100mA | 6Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
SSR10V-05595CMC 59.5MH 500MA 2LN TH |
105 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 59.5 mH @ 10 kHz | 500mA | 1.7Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SN8S-130NMC 4.0UH 5.0A 0.0120 OHM TH |
0 |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 4 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
SSHB10HS-R13071CMC 7.1MH 1.3A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 7.1 mH @ 10 kHz | 1.3A | 250mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
