Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN10-300JCMC 40UH 3A 2LN TH |
0 |
|
Datasheet | Vertical, 2 PC Pin | Power Line | 2 | - | 40 µH @ 100 kHz | 3A | 41mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SS20H-R06200CMC 20MH 600MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 1 kHz | 600mA | 930mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

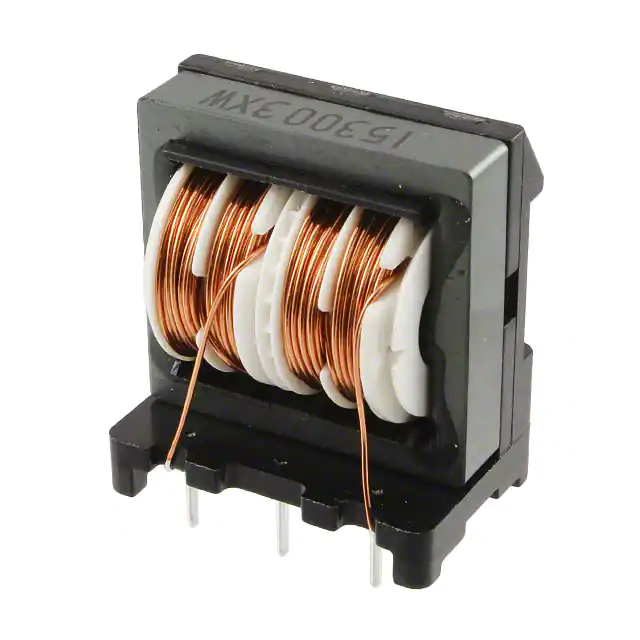

SS35V-15300CMC 30MH 1.5A 2LN TH |
0 |
|
Datasheet | Vertical, 6 PC Pin | Power Line | 2 | - | 30 mH @ 1 kHz | 1.5A | 480mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
LCFE060502A120TGCMC 100MA 2LN 12 OHM SMD ESD |
15,001 |
|
Datasheet | 0202 (0605 Metric), 6 Lead | Signal Line | 2 | 12 Ohms @ 100 MHz | - | 100mA | 3Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
SSR10HS-04745CMC 74.5MH 400MA 2LN TH |
187 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 74.5 mH @ 10 kHz | 400mA | 2.5Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR10H-08220CMC 22MH 800MA 2LN TH |
178 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 22 mH @ 10 kHz | 800mA | 650mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SZEMI2121MTTAGCMC 100MA 2LN SMD ESD AEC-Q101 |
2,353 |
|
Datasheet | 8-WFDFN | Signal Line | 2 | - | - | 100mA | 8Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
SN8D-300JBCMC 45UH 2A 2LN TH |
0 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 45 µH @ 100 kHz | 2A | 70mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
EMI4193MTTAGCMC 100MA 6LN 32 OHM SMD ESD |
744 |
|
Datasheet | 16-WFDFN | Signal Line | 6 | 32 Ohms @ 100 MHz | - | 100mA | 5Ohm | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
SN5-700NMC 140.0UH 0.9A 0.2500 OHM TH |
175 |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 140 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SS21V-150038CMC 3.8MH 1.5A 2LN TH |
300 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3.8 mH @ 1 kHz | 1.5A | 300mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
HHBC10-0R8A0107VCMC 107UH 3A 2LN TH |
0 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 107 µH @ 100 kHz | 3A | 53mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SSR21NVS-08235CMC 23.5MH 800MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 23.5 mH @ 10 kHz | 800mA | 420mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NVS-031590CMC 159MH 300MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 159 mH @ 10 kHz | 300mA | 2.85Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR21NHS-15082CMC 8.2MH 1.5A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 8.2 mH @ 10 kHz | 1.5A | 130mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
EMI8133MUTAGCMC 100MA 6LN SMD ESD |
4,808 |
|
Datasheet | 16-XFDFN | Signal Line | 6 | - | - | 100mA | 6Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
SSR21NV-08325CMC 32.5MH 800MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 32.5 mH @ 10 kHz | 800mA | 470mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NVS-M15164CMC 16.4MH 1.5A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 16.4 mH @ 10 kHz | 1.5A | 230mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NV-05795CMC 79.5MH 500MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 79.5 mH @ 10 kHz | 500mA | 1.2Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR21NH-05795CMC 79.5MH 500MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 79.5 mH @ 10 kHz | 500mA | 1.2Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
