| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PHBC10-0R8A0107VCMC 107UH 3A 2LN TH |
0 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 107 µH @ 100 kHz | 3A | 53mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SC-06-E42JKHCMC 4.2MH 6A 2LN TH |
120 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 4.2 mH @ 10 kHz | 6A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
PHBC13-1R2A0081VCMC 81UH 6A 2LN TH |
0 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 81 µH @ 100 kHz | 6A | 24.7mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
PHBC13-1R2A0127VCMC 127UH 6A 2LN TH |
0 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 127 µH @ 100 kHz | 6A | 31.7mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
PCMF1USB30ZNEXPERIA PCMF1USB - ELECTRONIC I |
20,495 |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LCFE121002A650TGCMC 100MA 2LN 65 OHM SMD ESD |
675 |
|
Datasheet | 0504 (1210 Metric), 6 Lead | Signal Line | 2 | 65 Ohms @ 100 MHz | - | 100mA | 4Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
SS11V-R08125-CHCMC 12.5MH 800MA 2LN TH |
100 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 12.5 mH @ 1 kHz | 800mA | 740mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

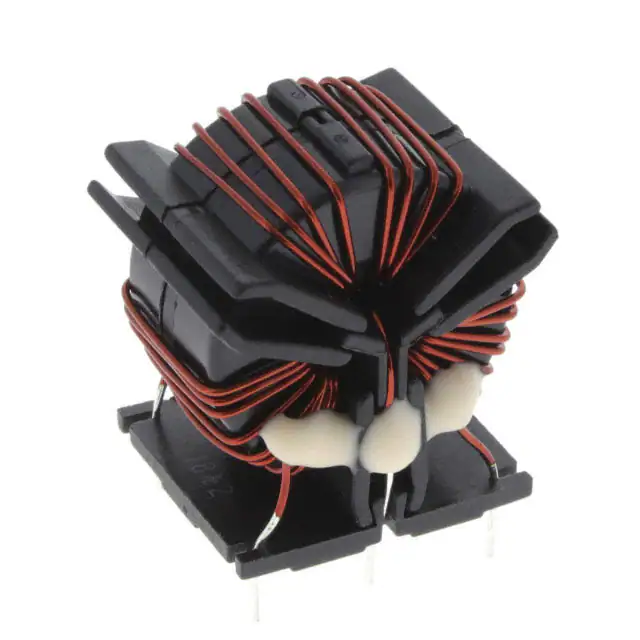

SC-01-S07JCMC 700UH 1A 3LN TH |
82 |
|
Datasheet | Vertical, 6 PC Pin | Power Line | 3 | - | 700 µH @ 10 kHz | 1A | 38 mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SSRH24NH-30145CMC 14.5MH 3A 2LN TH |
73 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 14.5 mH @ 10 kHz | 3A | 102mOhm (Typ) | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-11-20JCMC 2MH 11A 2LN TH |
76 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 11A | 14mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

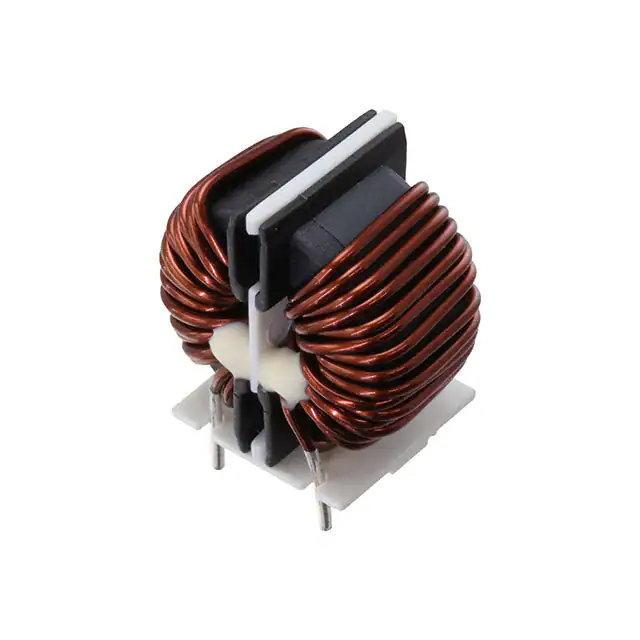

SCR25B-150-1R4A024JCMC 2.4MH 15A 2LN TH |
41 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.4 mH @ 10 kHz | 15A | 11.5mOhm | 500V | 500V | 25°C ~ 120°C | - | - | - | - | - |
|
SC-18-25JCMC 2.5MH 18A 2LN TH |
54 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 10 kHz | 18A | 10mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SCF19XV-100-1R1A009JVCMC 1MH 10A 2LN TH AEC-Q200 |
66 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 10A | 6.03mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF25XV-350-2R4A003JVCMC 220UH 35A 2LN TH AEC-Q200 |
40 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 220 µH @ 100 kHz | 35A | 0.65mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF39XV-200-Z2R1A012JHCMC 3.6MH 20A HRZ |
33 |
|
Datasheet | Horizontal, 8 PC Pin | Power Line | 2 | - | 3.6 mH @ 100 kHz | 20A | 4.14mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF39XV-420-2R4B004JHCMC 0.4MH 42A HRZ |
32 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 400 µH @ 100 kHz | 42A | 0.53mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF39XV-200-2R2A013JHCMC 4.2MH 20A HRZ |
20 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 4.2 mH @ 100 kHz | 20A | 4.28mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF39XV-100-1R5A028JHCMC 19.5MH 10A HRZ |
7 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 19.5 mH @ 100 kHz | 10A | 17.91mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF56X-800-S2R4C004JHIND CMC 0.34MH 80A 0.55MOHM |
9 |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 340 µH @ 100 kHz | 80A | 0.55mOhm | 600V | 600V | -40°C ~ 130°C | - | - | - | - | - |
|

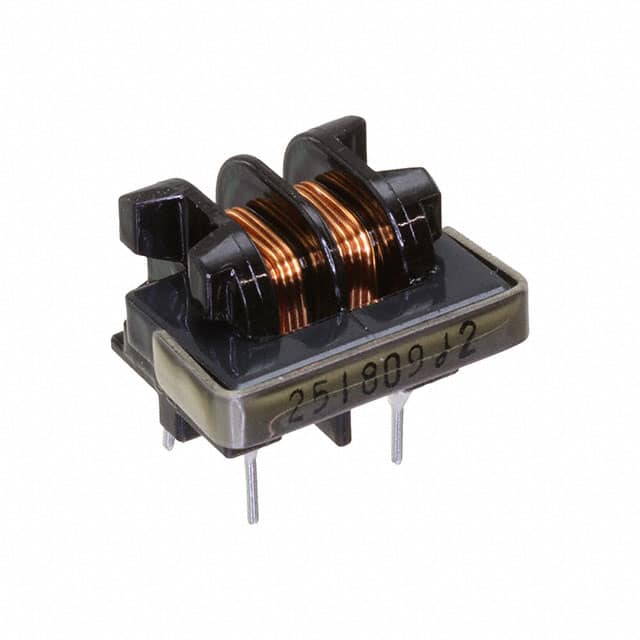

SU9HD-25018CMC 17.99UH 2.5A 2LN TH |
78 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 17.99 µH @ 1 kHz | 2.5A | 55mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
