Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SU9VD-10020CMC 2LN TH |
3,500 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | - | - | - | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
EMI8041BMUTAGCMC 100MA 2LN SMD ESD |
2,681 |
|
Datasheet | 6-UFDFN | Signal Line | 2 | - | - | 100mA | - | 9V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
SU9H-R01180CMC 18MH 100MA 2LN TH |
457 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 18 mH @ 1 kHz | 100mA | 8Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

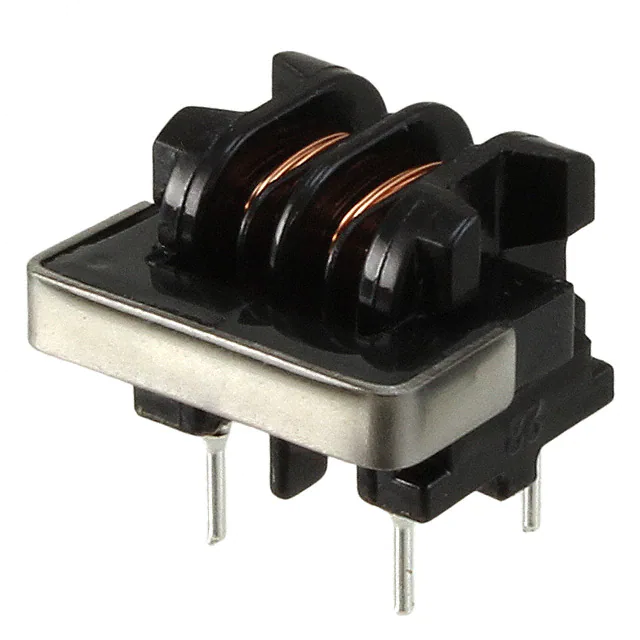

SU9HF-05050CMC 5MH 500MA 2LN TH |
449 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 1 kHz | 500mA | 1.3Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR10HS-06385CMC 38.5MH 600MA 2LN TH |
300 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 38.5 mH @ 10 kHz | 600mA | 1.2Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR10V-08220CMC 22MH 800MA 2LN TH |
300 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 22 mH @ 10 kHz | 800mA | 650mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SU9H-01100CMC 10MH 100MA 2LN TH |
591 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 100mA | 8Ohm | - | 250V | -25°C ~ 125°C | - | - | - | - | - |
|
SS11VL-R13052CMC 5.2MH 1.3A 2LN TH |
295 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 5.2 mH @ 1 kHz | 1.3A | 280mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR10HS-08180CMC 18MH 800MA 2LN TH |
600 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 18 mH @ 10 kHz | 800mA | 600mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR10V-04910CMC 91MH 400MA 2LN TH |
300 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 91 mH @ 10 kHz | 400mA | 2.8Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR10HS-10135CMC 13.5MH 1A 2LN TH |
295 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 13.5 mH @ 10 kHz | 1A | 430mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR10HS-30013CMC 1.3MH 3A 2LN TH |
270 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 1.3 mH @ 10 kHz | 3A | 60mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR10H-11140CMC 14MH 1.1A 2LN TH |
215 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 14 mH @ 10 kHz | 1.1A | 370mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SS21VB-R040342CHOKE CMC 34.2MH 0.4A |
240 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 34.2 mH @ 1 kHz | 400mA | 2.372Ohm | - | 500V | -40°C ~ 120°C | - | - | - | - | - |
|
|
SS21VB-R100055CHOKE CMC 5.5MH 1A |
240 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 5.5 mH @ 1 kHz | 1A | 373mOhm | - | 500V | -40°C ~ 120°C | - | - | - | - | - |
|
|
SS21VB-R050254CHOKE CMC 25.4MH 0.5A |
240 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 25.4 mH @ 1 kHz | 500mA | 1.723Ohm | - | 500V | -40°C ~ 120°C | - | - | - | - | - |
|
SS26V-200076CMC 7.6MH 2A 2LN TH |
350 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 7.6 mH @ 1 kHz | 2A | 250mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSB11H-R13090CMC 9MH 1.3A 2LN TH |
300 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 9 mH @ 1 kHz | 1.3A | 380mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
SS21V-250015CMC 1.5MH 2.5A 2LN TH |
295 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 1 kHz | 2.5A | 100mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSHB10H-R11128CMC 12.8MH 1.1A 2LN TH |
180 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 12.8 mH @ 10 kHz | 1.1A | 390mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
