Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC-02-300JVCMC 44MH 2A 2LN TH |
174 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 44 mH @ 16 kHz | 2A | 300mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-07-E042JHCMC 4.2MH 7A 2LN TH |
249 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 4.2 mH @ 100 kHz | 7A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

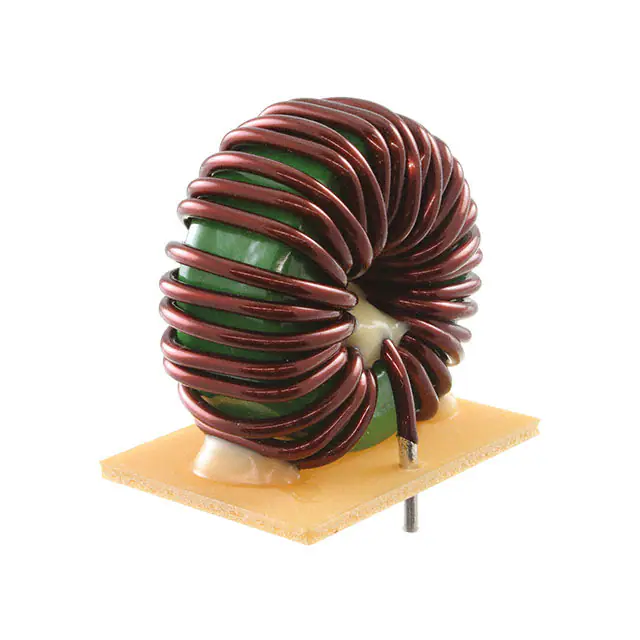

SN14P-300JNMC 80.0UH 15.0A 0.0150 OHM TH |
256 |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 80 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SCR19XV-150-1R3A006JVCMC 220UH 15A 2LN TH AEC-Q200 |
234 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 220 µH @ 100 kHz | 15A | 2.91mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR19XV-120-1R2A007JVCMC 300UH 12A 2LN TH AEC-Q200 |
206 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 300 µH @ 100 kHz | 12A | 3.99mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR19XV-080-1R0A011JVCMC 750UH 8A 2LN TH AEC-Q200 |
126 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 750 µH @ 100 kHz | 8A | 8.7mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCR25XV-100-1R3A016JHCMC 3.1MH 10A 2LN TH AEC-Q200 |
240 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 3.1 mH @ 100 kHz | 10A | 12.27mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCT25XV-350-2R4A003JHCMC 72UH 35A 2LN TH AEC-Q200 |
235 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 72 µH @ 100 kHz | 35A | 0.7mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCT25XV-280-2R1A005JVCMC 200UH 28A 2LN TH AEC-Q200 |
187 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 200 µH @ 100 kHz | 28A | 1.39mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT25XV-080-1R2A018JVCMC 2.6MH 8A 2LN TH AEC-Q200 |
161 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.6 mH @ 100 kHz | 8A | 14.41mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT25XV-350-2R4A003JVCMC 72UH 35A 2LN TH AEC-Q200 |
157 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 72 µH @ 100 kHz | 35A | 0.69mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCR29XV-190-1R9A012JVCMC 880UH 19A 2LN TH AEC-Q200 |
166 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 880 µH @ 100 kHz | 19A | 3.28mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCR19XV-080-1R0A011JHCMC 750UH 8A 2LN TH AEC-Q200 |
221 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 750 µH @ 100 kHz | 8A | 8.98mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCT19XV-220-1R6A004JHCMC 60UH 22A 2LN TH AEC-Q200 |
152 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 60 µH @ 100 kHz | 22A | 1.43mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCT19XV-080-1R0A011JVCMC 450UH 8A 2LN TH AEC-Q200 |
150 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 450 µH @ 100 kHz | 8A | 8.7mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF25XV-130-1R5A012JVCMC 3.5MH 13A 2LN TH AEC-Q200 |
252 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3.5 mH @ 100 kHz | 13A | 6.33mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCT29XV-180-1R8A013JVCMC 560UH 18A 2LN TH AEC-Q200 |
180 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 560 µH @ 100 kHz | 18A | 3.99mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT29XV-210-2R1A010JVCMC 330UH 21A 2LN TH AEC-Q200 |
152 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 330 µH @ 100 kHz | 21A | 2.3mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT29XV-120-1R6A017JVCMC 960UH 12A 2LN TH AEC-Q200 |
150 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 960 µH @ 100 kHz | 12A | 6.43mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT19XV-150-1R3A006JVCMC 134UH 15A 2LN TH AEC-Q200 |
320 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 134 µH @ 100 kHz | 15A | 2.91mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
