Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC-05-E06HCMC 600UH 5A 2LN TH |
196 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 600 µH @ 10 kHz | 5A | 17.5mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-02-30GJCMC 3MH 2A 2LN TH |
238 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 2A | 100mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

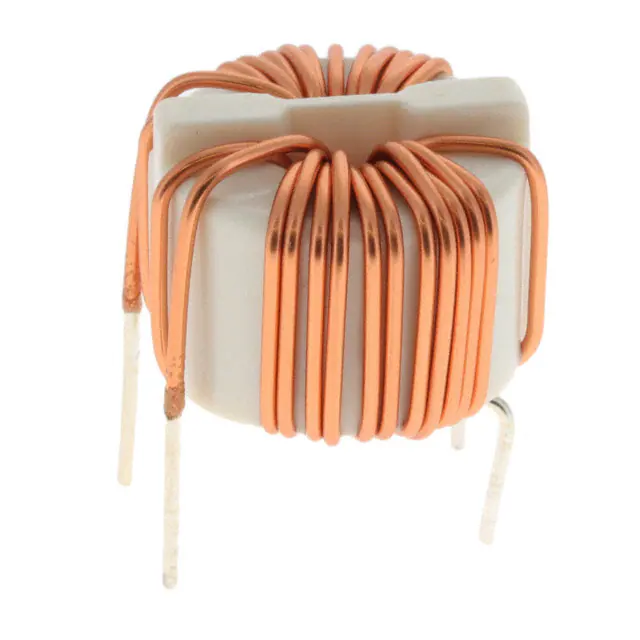

SC-06-E200HCMC 2MH 6A 2LN TH |
280 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 6A | 27mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
HHBC12-1R0A0051VCMC 51UH 5A 2LN TH |
162 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 51 µH @ 100 kHz | 5A | 28mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SC22-04-100JCMC 10MH 4A 2LN TH |
124 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 4A | 71mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-05-E100JKHCMC 10MH 5A 2LN TH |
132 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 5A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
HHBC12-1R0A0080VCMC 80UH 5A 2LN TH |
0 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 80 µH @ 100 kHz | 5A | 35.6mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SN12-400JCMC 64UH 5A 2LN TH |
197 |
|
Datasheet | Vertical, 2 PC Pin | Power Line | 2 | - | 64 µH @ 100 kHz | 5A | 37mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
SN12-500JCMC 100UH 5A 2LN TH |
214 |
|
Datasheet | Vertical, 2 PC Pin | Power Line | 2 | - | 100 µH @ 100 kHz | 5A | 45mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|

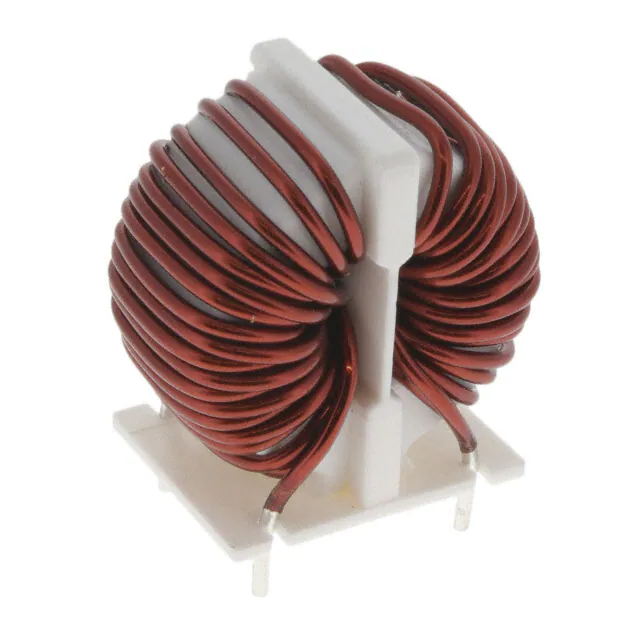

SC-10-18JCMC 1.6MH 10A 2LN TH |
128 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.6 mH @ 1 kHz | 10A | 20mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SCR-020-0R55A250JHCMC 25MH 2A 2LN TH |
316 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 25 mH @ 10 kHz | 2A | 200mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SCR-050-0R9A070JHCMC 7MH 5A 2LN TH |
203 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 7 mH @ 10 kHz | 5A | 47mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SC-06-382JHCMC 3.8MH 6A 2LN TH |
152 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 3.8 mH @ 10 kHz | 6A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-05-20JCMC 2MH 5A 2LN TH |
193 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 5A | 70mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-04-20JNCMC 2MH 4A 2LN TH |
154 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 4A | 50mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
SC-05-492JHCMC 4.9MH 5A 2LN TH |
193 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 4.9 mH @ 10 kHz | 5A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
SC-05-812JHCMC 8.1MH 5A 2LN TH |
166 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 8.1 mH @ 10 kHz | 5A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

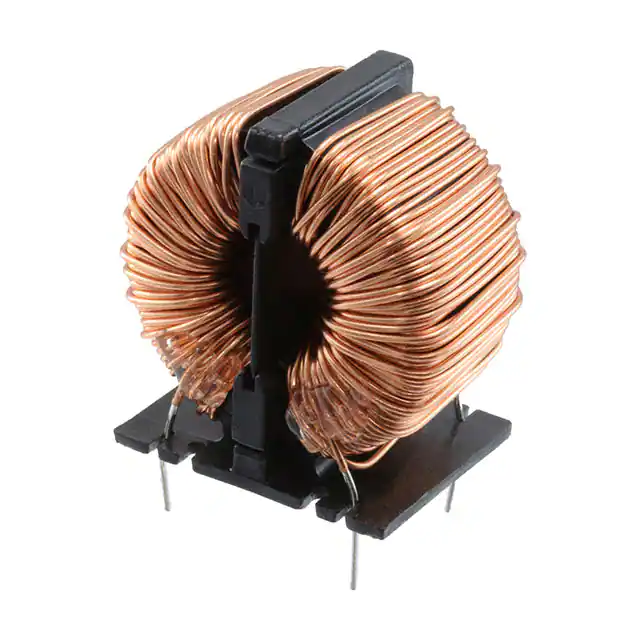

SC-02-300JCMC 30MH 2A 2LN TH |
120 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 30 mH @ 1 kHz | 2A | 300mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

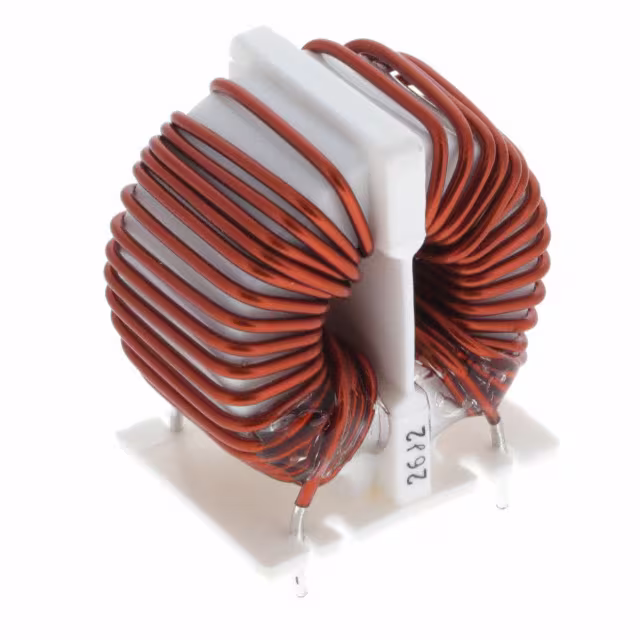

SC-07-30JMCMC 3MH 7A 2LN TH |
124 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 10 kHz | 7A | 39mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-10-D05JCMC 50UH 10A 2LN TH |
112 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 50 µH @ 100 kHz | 10A | 16mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
