Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSHB21H-20046CMC 4.6MH 2A 2LN TH |
178 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 4.6 mH @ 10 kHz | 2A | 170mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SSHB21HS-03656CMC 65.6MH 300MA 2LN TH |
3 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 65.6 mH @ 10 kHz | 300mA | 2.95Ohm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
SH-322CMC 3A 2LN TH |
499 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 7.5 µH @ 100 kHz | 3A | 20mOhm | 50V | - | -25°C ~ 80°C | - | - | - | - | - |
|
|
SSHB21HS-R10300CMC 30MH 1A 2LN TH |
572 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 30 mH @ 10 kHz | 1A | 570mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB21H-R15164CMC 16.4MH 1.5A 2LN TH |
115 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 16.4 mH @ 10 kHz | 1.5A | 310mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB21HS-R031350CMC 135MH 300MA 2LN TH |
114 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 135 mH @ 10 kHz | 300mA | 2.95Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
ST-101F2CMC 200MA 2LN 40K OHM TH |
123 |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | 40 kOhms @ 600 kHz | - | 200mA | 2.7Ohm | 50V | - | -20°C ~ 75°C | - | - | - | - | - |
|

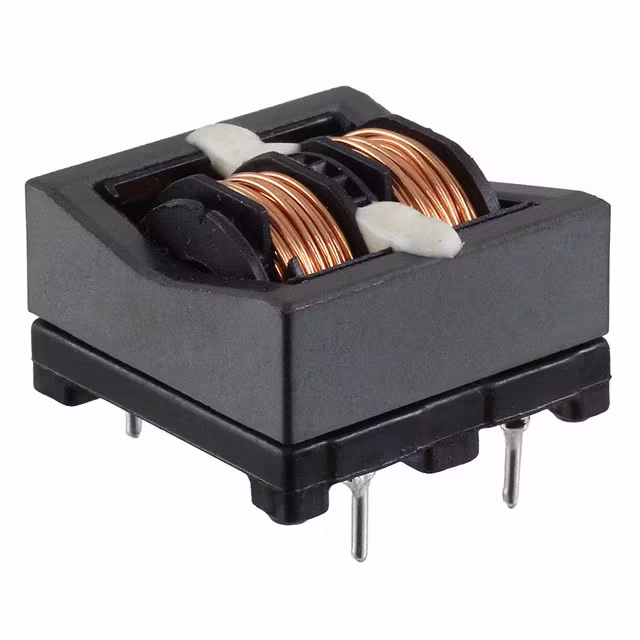

SSR21HS-20029CMC 2.9MH 2A 2LN TH |
315 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.9 mH @ 10 kHz | 2A | 100mOhm | 250V | - | -25°C ~ 120°C | - | - | - | - | - |
|
SN8S-500JBCMC 72UH 2A 2LN TH |
180 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 72 µH @ 100 kHz | 2A | 85mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SSR21H-13120CMC 12MH 1.3A 2LN TH |
420 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 12 mH @ 10 kHz | 1.3A | 240mOhm | 250V | - | -25°C ~ 120°C | - | - | - | - | - |
|
SSR21H-15083CMC 8.3MH 1.5A 2LN TH |
370 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 8.3 mH @ 10 kHz | 1.5A | 160mOhm | 250V | - | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB21HS-15064CMC 6.4MH 1.5A 2LN TH |
352 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 6.4 mH @ 10 kHz | 1.5A | 280mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SSHB21HS-07267CMC 26.7MH 700MA 2LN TH |
113 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 26.7 mH @ 10 kHz | 700mA | 1.03Ohm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SSHB21HS-25021CMC 2.1MH 2.5A 2LN TH |
101 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 2.1 mH @ 10 kHz | 2.5A | 90mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SSHB21HS-05440CMC 44MH 500MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 44 mH @ 10 kHz | 500mA | 1.88Ohm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
SC-02-E115JCMC 11.5MH 2A 2LN TH |
267 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 11.5 mH @ 10 kHz | 2A | 155mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

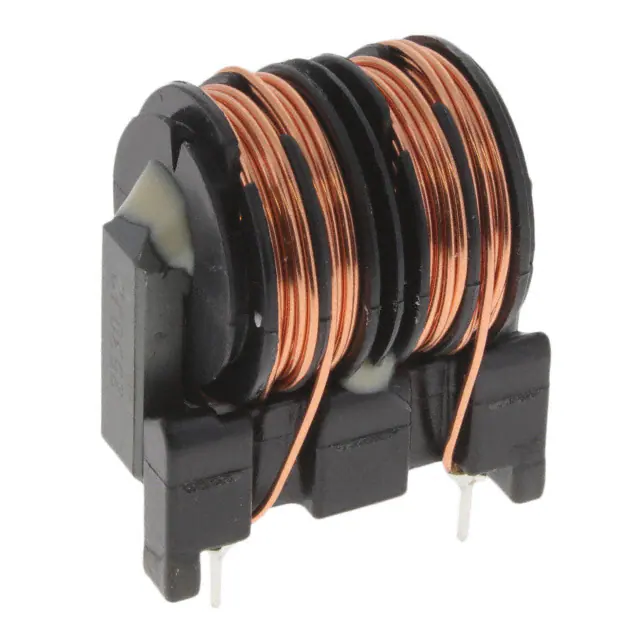

SS30V-250070CMC 7MH 2.5A 2LN TH |
138 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 7 mH @ 1 kHz | 2.5A | 160mOhm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-02-E50JKHCMC 5.4MH 2.7A 2LN TH |
276 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 5.4 mH @ 10 kHz | 2.7A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SS30V-200100CMC 10MH 2A 2LN TH |
200 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 2A | 210mOhm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SS30V-R080960CMC 96MH 800MA 2LN TH |
168 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 96 mH @ 1 kHz | 800mA | 1.5Ohm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
