Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSR21NVS-M30041CMC 4.1MH 3A 2LN TH |
349 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 4.1 mH @ 10 kHz | 3A | 70mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NVS-M08475CMC 47.5MH 800MA 2LN TH |
256 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 47.5 mH @ 10 kHz | 800mA | 680mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR21NHS-M10345CMC 34.5MH 1A 2LN TH |
225 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 34.5 mH @ 10 kHz | 1A | 510mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NHS-M051200CMC 120MH 500MA 2LN TH |
217 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 120 mH @ 10 kHz | 500mA | 1.85Ohm (Typ) | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NVS-M06890CMC 89MH 600MA 2LN TH |
104 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 89 mH @ 10 kHz | 600mA | 1.35Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR21NH-M12345CMC 34.5MH 1.2A 2LN TH |
386 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 34.5 mH @ 10 kHz | 1.2A | 430mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR21NV-M051350CMC 135MH 500MA 2LN TH |
249 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 135 mH @ 10 kHz | 500mA | 1.9Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NH-M061200CMC 120MH 600MA 2LN TH |
218 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 120 mH @ 10 kHz | 600mA | 1.5Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS26V-R051170CMC 117MH 500MA 2LN TH |
325 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 117 mH @ 1 kHz | 500mA | 2.4Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS21V-R060330CMC 33MH 600MA 2LN TH |
600 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 33 mH @ 1 kHz | 600mA | 1.5Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-02-05GJCMC 515UH 2A 2LN TH |
212 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 515 µH @ 100 kHz | 2A | 58mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-05-15JCMC 1.5MH 5A 2LN TH |
132 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 100 kHz | 5A | 40mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NVS-20034CMC 3.4MH 2A 2LN TH |
312 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 3.4 mH @ 10 kHz | 2A | 70mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NVS-15082CMC 8.2MH 1.5A 2LN TH |
270 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 8.2 mH @ 10 kHz | 1.5A | 130mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-03-67JCMC 6.7MH 3A 2LN TH |
393 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 6.7 mH @ 100 kHz | 3A | 105mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-07-D005CMC 45UH 7A 2LN TH |
351 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 45 µH @ 100 kHz | 7A | 20mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|

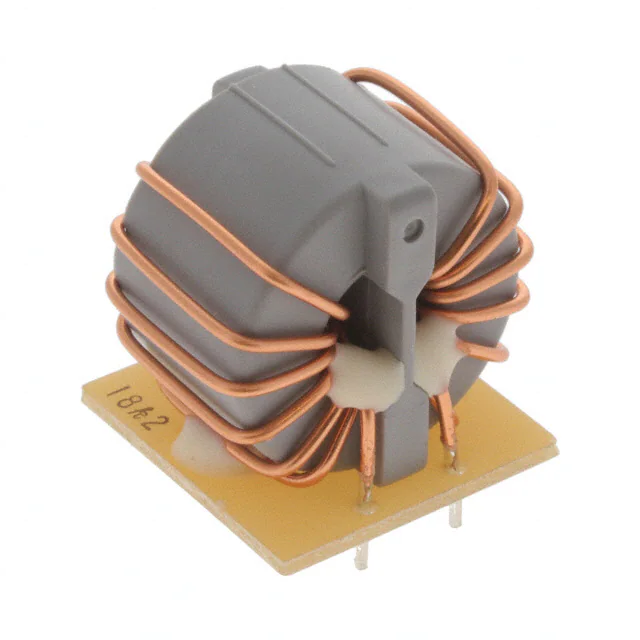

SC-05-D030JCMC 30UH 5A 2LN TH |
377 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 30 µH @ 100 kHz | 5A | 20mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
SS26V-150121CMC 12.1MH 1.5A 2LN TH |
350 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 12.1 mH @ 1 kHz | 1.5A | 400mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SS26V-060640CMC 64MH 600MA 2LN TH |
350 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 64 mH @ 1 kHz | 600mA | 1.8Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SS26V-100250CMC 25MH 1A 2LN TH |
345 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 25 mH @ 1 kHz | 1A | 700mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
