Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

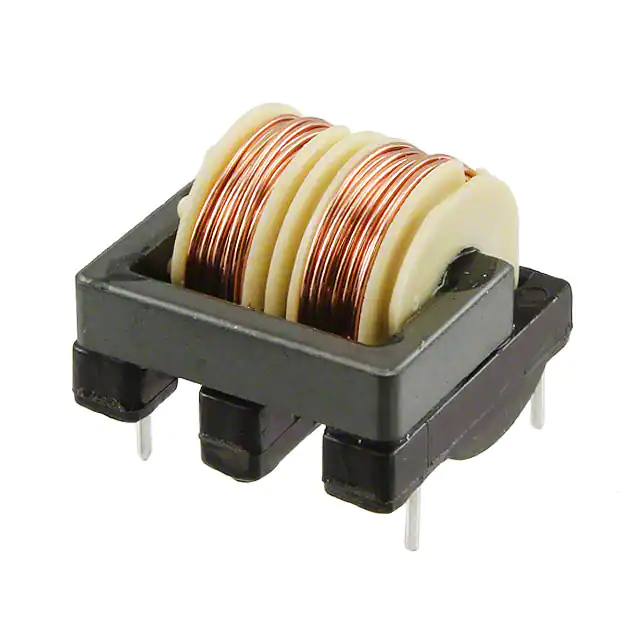

SSB11H-R17043CMC 4.3MH 1.7A 2LN TH |
725 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 4.3 mH @ 1 kHz | 1.7A | 180mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
SC-02-06GCMC 600UH 2A 2LN TH |
221 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 600 µH @ 100 kHz | 2A | 50mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SU16VD-30050CMC 50UH 3A 2LN TH |
591 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 50 µH @ 1 kHz | 3A | 80mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSHB10HS-R11100CMC 10MH 1.1A 2LN TH |
476 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 10 mH @ 10 kHz | 1.1A | 350mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SU16VD-30040CMC 40UH 3A 2LN TH |
300 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 40 µH @ 1 kHz | 3A | 70mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SU16VD-40020CMC 20UH 4A 2LN TH |
299 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 20 µH @ 1 kHz | 4A | 50mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB10HS-R22027CMC 2.7MH 2.2A 2LN TH |
114 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 2.7 mH @ 10 kHz | 2.2A | 110mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB10H-R05500CMC 50MH 500MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 50 mH @ 10 kHz | 500mA | 1.7Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-03-28JCMC 2.8MH 3A 2LN TH |
212 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.8 mH @ 10 kHz | 3A | 55mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SS26V-R300038CMC 3.8MH 3A 2LN TH |
343 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3.8 mH @ 1 kHz | 3A | 100mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS30V-300054CMC 5.4MH 3A 2LN TH |
102 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 5.4 mH @ 1 kHz | 3A | 120mOhm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SS17HB-R03300CMC 30MH 300MA 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 30 mH @ 1 kHz | 300mA | 2.6Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS20H-20018CMC 1.8MH 2A 2LN TH |
1,600 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 1 kHz | 2A | 110mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB10H-17023CMC 2.3MH 1.7A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 2.3 mH @ 10 kHz | 1.7A | 190mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
SS35V-35047CMC 4.7MH 3.5A 2LN TH |
0 |
|
Datasheet | Vertical, 6 PC Pin | Power Line | 2 | - | 4.7 mH @ 1 kHz | 3.5A | 100mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SS26V-R250061CMC 6.1MH 2.5A 2LN TH |
351 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 6.1 mH @ 1 kHz | 2.5A | 150mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

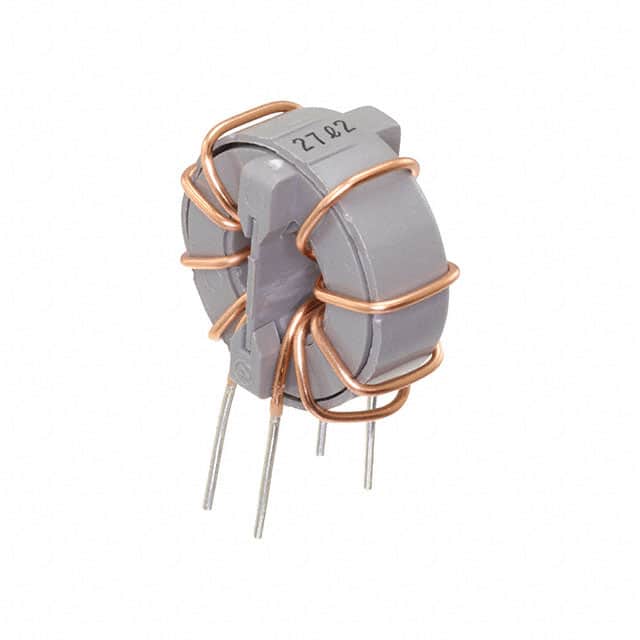

SC-05-D0065CMC 6.5UH 5A 2LN TH |
303 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 6.5 µH @ 100 kHz | 5A | 10mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SS35V-45022CMC 2.2MH 4.5A 2LN TH |
102 |
|
Datasheet | Vertical, 6 PC Pin | Power Line | 2 | - | 2.2 mH @ 1 kHz | 4.5A | 60mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR21NHS-M20103CMC 10.3MH 2A 2LN TH |
837 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 10.3 mH @ 10 kHz | 2A | 150mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR21NVS-M18125CMC 12.5MH 1.8A 2LN TH |
398 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 12.5 mH @ 10 kHz | 1.8A | 190mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
