Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSHB10H-04320CMC 23MH 400MA 2LN TH |
360 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 23 mH @ 10 kHz | 400mA | 2.7Ohm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SSHB10H-22014CMC 1.4MH 2.2A 2LN TH |
314 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 1.4 mH @ 10 kHz | 2.2A | 120mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SSHB10H-07120CMC 12MH 700MA 2LN TH |
4 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 12 mH @ 10 kHz | 700mA | 900mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SSHB10HS-17019CMC 1.9MH 1.7A 2LN TH |
121 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 1.9 mH @ 10 kHz | 1.7A | 170mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
SC-03-06GJCMC 600UH 3A 2LN TH |
143 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 600 µH @ 100 kHz | 3A | 35mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SS21V-030930CMC 93MH 300MA 2LN TH |
538 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 93 mH @ 1 kHz | 300mA | 5.9Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR21NH-M041500CMC 150MH 400MA 2LN TH |
469 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 150 mH @ 10 kHz | 400mA | 2Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-02-E120JKHCMC 12MH 2A 2LN TH |
317 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 12 mH @ 10 kHz | 2A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SSRH24NVS-35080CMC 8MH 3.5A 2LN TH |
180 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 8 mH @ 10 kHz | 3.5A | 74mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB21HS-08200CMC 20MH 800MA 2LN TH |
187 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 20 mH @ 10 kHz | 800mA | 780mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SS21V-R080200CMC 20MH 800MA 2LN TH |
924 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 1 kHz | 800mA | 800mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SS21V-R130066CMC 6.6MH 1.3A 2LN TH |
861 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 6.6 mH @ 1 kHz | 1.3A | 350mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

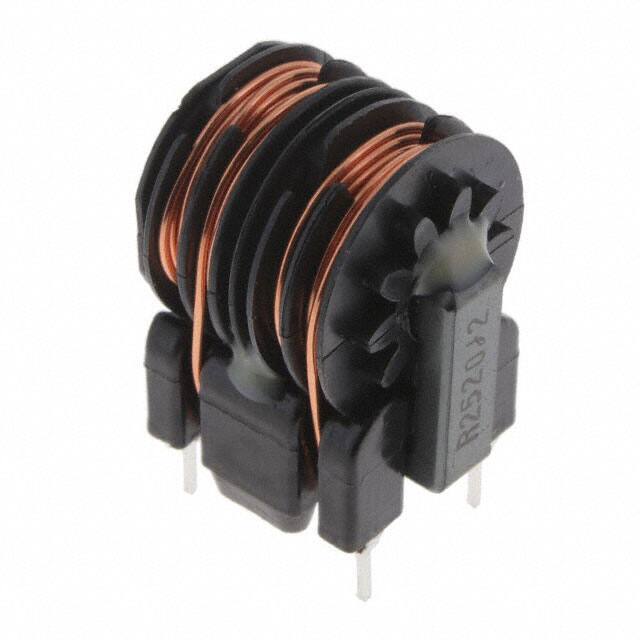

SS21V-R250023CMC 2.3MH 2.5A 2LN TH |
597 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.3 mH @ 1 kHz | 2.5A | 100mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS21V-R220026CMC 2.6MH 2.2A 2LN TH |
596 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.6 mH @ 1 kHz | 2.2A | 130mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-02-70JCMC 7MH 2A 2LN TH |
133 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 7 mH @ 1 kHz | 2A | 110mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
SSRH24NV-25205CMC 20.5MH 2.5A 2LN TH |
3,344 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 20.5 mH @ 10 kHz | 2.5A | 145mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS30V-080730CMC 73MH 800MA 2LN TH |
201 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 73 mH @ 1 kHz | 800mA | 1.5Ohm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SS30V-450013CMC 1.3MH 4.5A 2LN TH |
156 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.3 mH @ 1 kHz | 4.5A | 60mOhm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

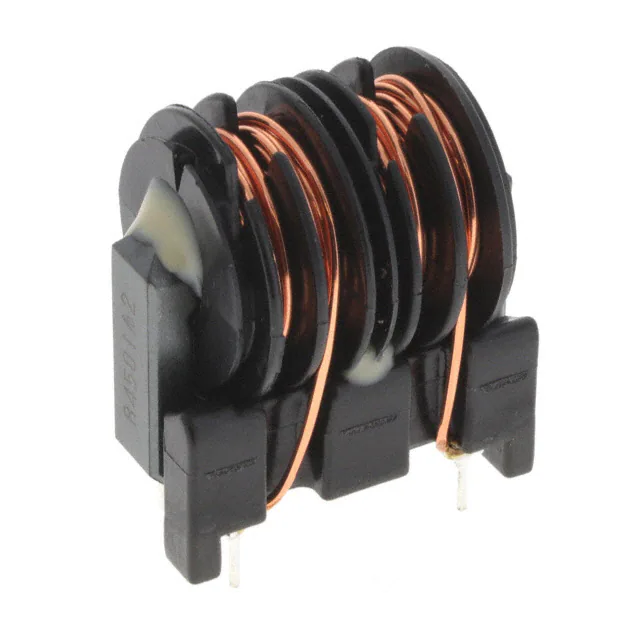

SS30V-R450017CMC 1.7MH 4.5A 2LN TH |
199 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.7 mH @ 1 kHz | 4.5A | 60mOhm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

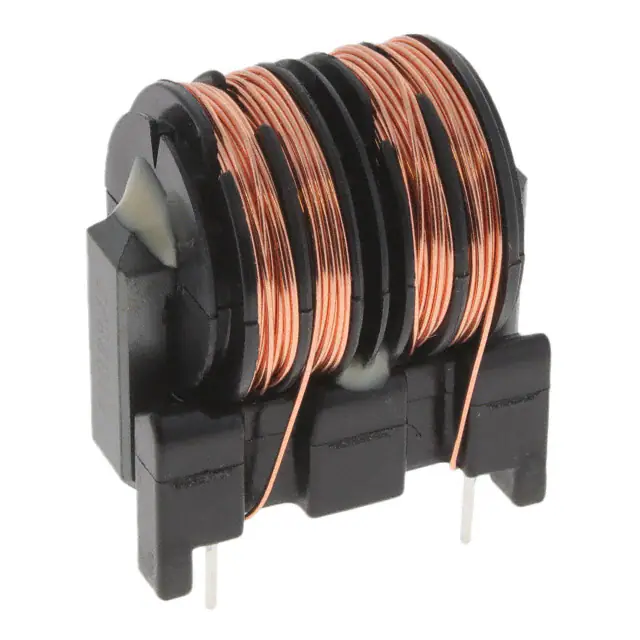

SS30V-R100700CMC 70MH 1A 2LN TH |
176 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 70 mH @ 1 kHz | 1A | 1.1Ohm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
