Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSHB21H-R12296CMC 29.6MH 1.2A 2LN TH |
175 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 29.6 mH @ 10 kHz | 1.2A | 490mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSRH24NHS-35080CMC 8MH 3.5A 2LN TH |
174 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 8 mH @ 10 kHz | 3.5A | 74mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB21H-R20094CMC 9.4MH 2A 2LN TH |
164 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 9.4 mH @ 10 kHz | 2A | 170mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS26V-R120220CMC 22MH 1.2A 2LN TH |
471 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 22 mH @ 1 kHz | 1.2A | 550mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSRH24NV-30145CMC 14.5MH 3A 2LN TH |
170 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 14.5 mH @ 10 kHz | 3A | 102mOhm (Typ) | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSRH24NVS-16320CMC 32MH 1.6A 2LN TH |
10 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 32 mH @ 10 kHz | 1.6A | 265mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSRH24NHS-50026CMC 2.6MH 5A 2LN TH |
164 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 2.6 mH @ 10 kHz | 5A | 27mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSRH24NVS-50026CMC 2.6MH 5A 2LN TH |
147 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 2.6 mH @ 10 kHz | 5A | 27mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-07-E030JH-PCMC 30UH 7A 2LN TH |
164 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 30 µH @ 100 kHz | 7A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

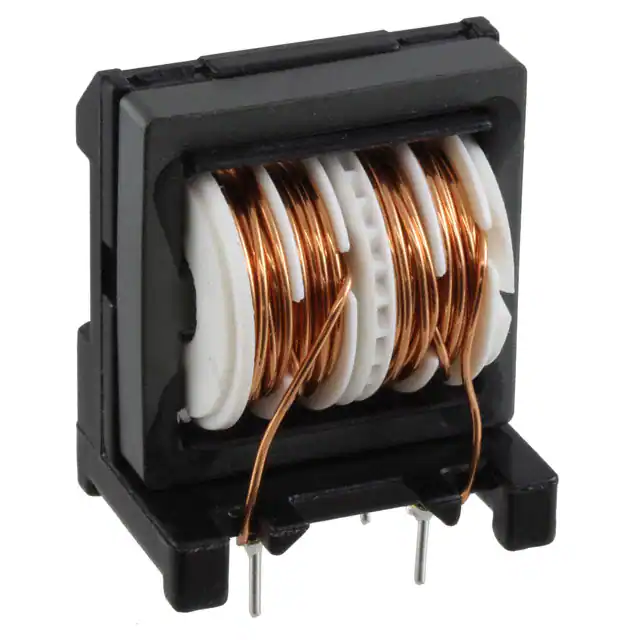

SS28V-25045-CHCMC 4.5MH 2.5A 2LN TH |
0 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 4.5 mH @ 1 kHz | 2.5A | 160mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

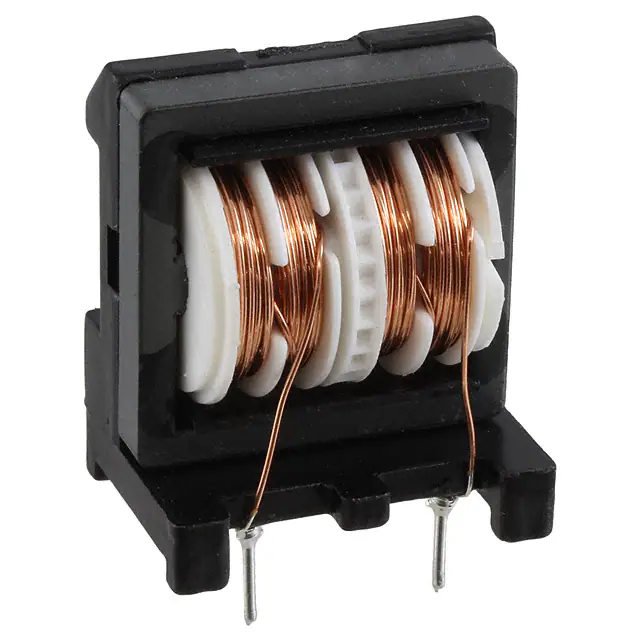

SS24V-R08250-CHCMC 25MH 800MA 2LN TH |
423 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 25 mH @ 1 kHz | 800mA | 750mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

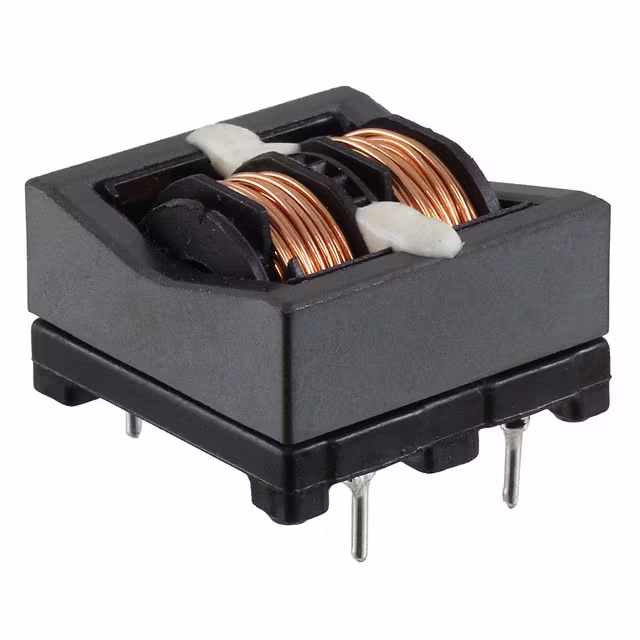

SSR21H-12150CMC 15MH 1.2A 2LN TH |
420 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 1.2A | 320mOhm | 250V | - | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSRH24NV-50041CMC 4.1MH 5A 2LN TH |
164 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 4.1 mH @ 10 kHz | 5A | 35mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSRH24NH-12655CMC 65.5MH 1.2A 2LN TH |
134 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 65.5 mH @ 10 kHz | 1.2A | 475mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

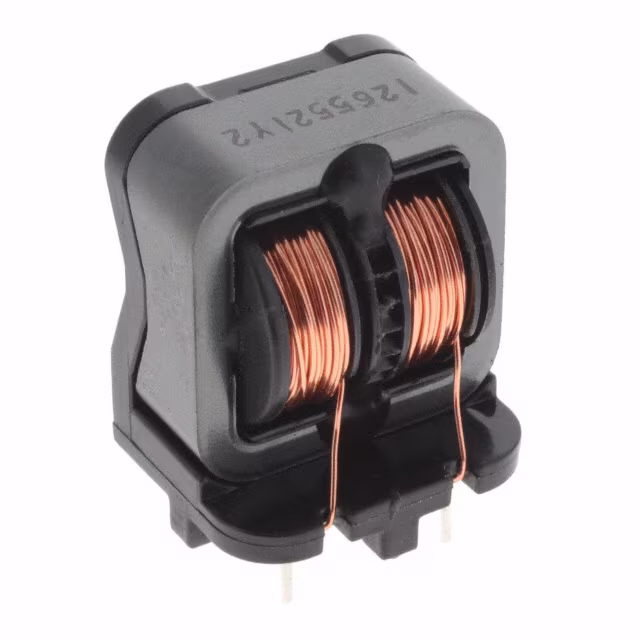

SSRH24NV-12655CMC 65.5MH 1.2A 2LN TH |
129 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 65.5 mH @ 10 kHz | 1.2A | 475mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS28H-R25080-CHCMC 8MH 2.5A 2LN TH |
323 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 1 kHz | 2.5A | 160mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SC-02-08JSCMC 800UH 2A 2LN TH |
200 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 800 µH @ 1 kHz | 2A | - | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
SSHB21H-12145CMC 14.5MH 1.2A 2LN TH |
241 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 14.5 mH @ 10 kHz | 1.2A | 490mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SSHB21H-06400CMC 40MH 600MA 2LN TH |
240 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 40 mH @ 10 kHz | 600mA | 1.5Ohm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SSHB21H-10184CMC 18.4MH 1A 2LN TH |
194 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 18.4 mH @ 10 kHz | 1A | 640mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
