Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC-02-20JSCMC 1MH 2A 2LN TH |
207 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 2 mH @ 1 kHz | 2A | 100mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-03-55JCMC 5.5MH 3A 2LN TH |
173 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 5.5 mH @ 100 kHz | 3A | 110mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC22-04-95HCMC 9.45MH 4.3A 2LN TH |
170 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 9.45 mH @ 10 kHz | 4.3A | 80mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
HHBC8S-0R6A0067VCMC 67UH 2A 2LN TH |
169 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 67 µH @ 100 kHz | 2A | 67.8mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
ST-101CMC 200MA 2LN 3K OHM TH |
149 |
|
Datasheet | Vertical, No Base, 4 PC Pin | - | 2 | 3 kOhms @ 500 kHz | - | 200mA | 180mOhm | 50V | - | -20°C ~ 75°C | - | - | - | - | - |
|
|
SC22-06-70JHCMC 7MH 6A 2LN TH |
150 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 7 mH @ 10 kHz | 6A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-03-E900CMC 9MH 3A 2LN TH |
222 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 9 mH @ 10 kHz | 3A | 130mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-01-80GCMC 8MH 1A 2LN TH |
736 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 8 mH @ 100 kHz | 1A | 300mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-02-500CMC 5MH 2A 2LN TH |
166 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 5 mH @ 100 kHz | 2A | 100mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
SC-05-E45JHCMC 4.5MH 5A 2LN TH |
133 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 4.5 mH @ 100 kHz | 5A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-02-E620HCMC 6.2MH 2A 2LN TH |
298 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 6.2 mH @ 1 kHz | 2A | 180mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-06-35JCMC 3.5MH 6A 2LN TH |
165 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3.5 mH @ 10 kHz | 6A | 50mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

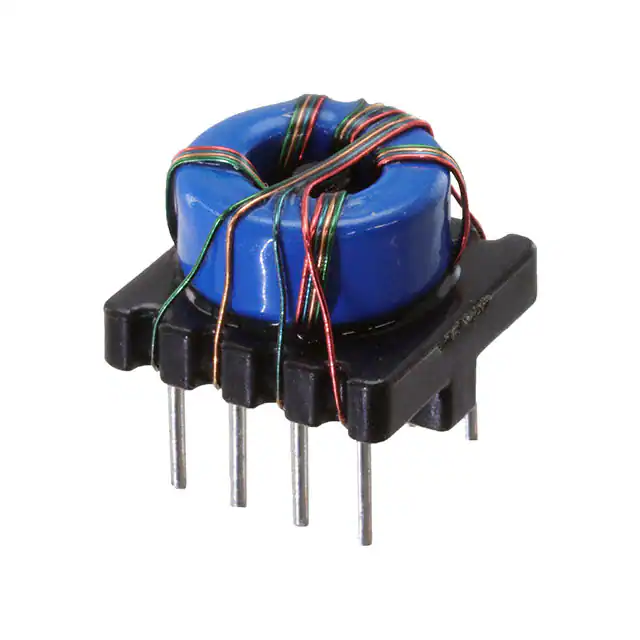

ST-204A1CMC 500MA 4LN 250 OHM TH |
199 |
|
Datasheet | Horizontal, 8 PC Pin | - | 4 | 250 Ohms @ 10 MHz | - | 500mA | 100mOhm | 50V | - | -20°C ~ 75°C | - | - | - | - | - |
|
ST-101ACMC 200MA 2LN 3K OHM TH |
150 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | 3 kOhms @ 500 kHz | - | 200mA | 250mOhm | 50V | - | -20°C ~ 65°C | - | - | - | - | - |
|
SC-07-E300ACMC 3MH 7A 2LN TH |
153 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 7A | 45mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

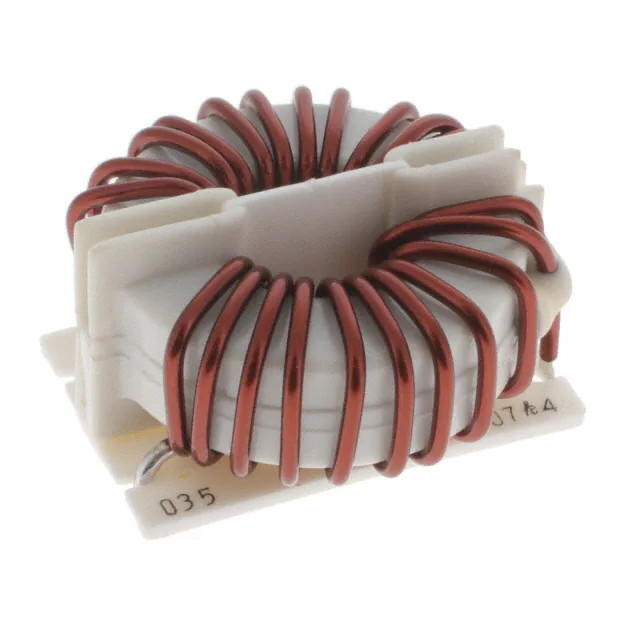

SC-09-D035JHCMC 35UH 9A 2LN TH |
127 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 35 µH @ 100 kHz | 9A | 7.8mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
SC-03-85JCMC 8.5MH 3A 2LN TH |
240 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 8.5 mH @ 10 kHz | 3A | 110mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
SC-05-203CMC 2MH 5A 2LN TH |
169 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 5A | 70mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC22-025-290JCMC 29MH 2.5A 2LN TH |
105 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 29 mH @ 10 kHz | 2.5A | 250mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-20-01J-ACMC 150UH 20A 2LN TH |
162 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 150 µH @ 1 kHz | 20A | 4mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
