Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCR-060-0R9A040JHCMC 4MH 6A 2LN TH |
165 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 4 mH @ 10 kHz | 6A | - | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-05-503CMC 5MH 4A 2LN TH |
135 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 5 mH @ 100 kHz | 4A | 80mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-02-10JCMC 1MH 2A 2LN TH |
224 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 2A | 100mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

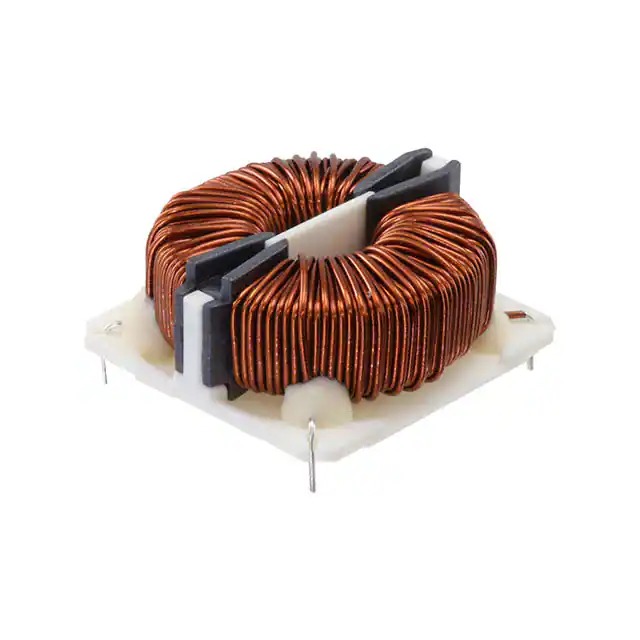

SC-030-E150JH-PCMC 15MH 3A 2LN TH |
180 |
|
Datasheet | Horizontal, 2 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 3A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SCR22-050-0R9A090JCMC 9MH 5A 2LN TH |
192 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 9 mH @ 10 kHz | 5A | 55mOhm | 250V | 250V | 25°C ~ 120°C | - | - | - | - | - |
|
|
SCR22-050-0R9A100JHCMC 10MH 5A 2LN TH |
150 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 5A | 60mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

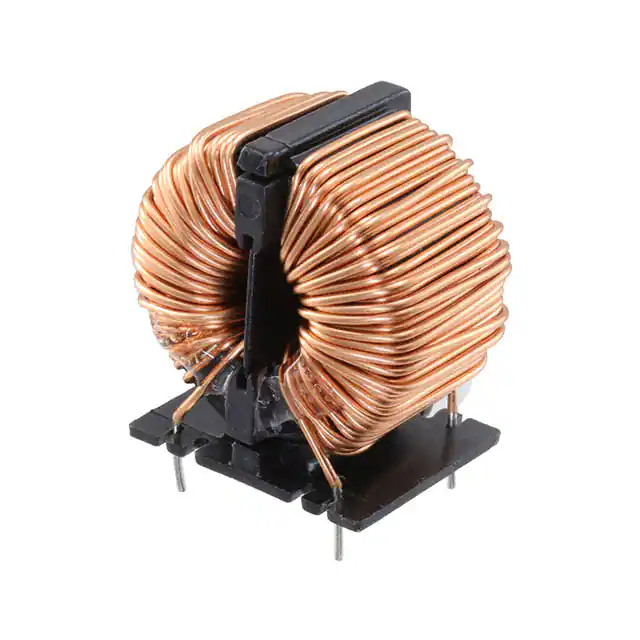

SC-04-200JCMC 20.3MH 4A 2LN TH |
169 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 20.3 mH @ 1 kHz | 4A | 150mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SCF-03-65JVCMC 6.5MH 3A 2LN TH |
343 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 6.5 mH @ 10 kHz | 3A | 70mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
PHBC12-1R0A0051VCMC 51UH 5A 2LN TH |
109 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 51 µH @ 100 kHz | 5A | 28mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SC-08-200BCMC 2MH 8A 2LN TH |
134 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 8A | 70mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-06-40JCMC 4MH 6A 2LN TH |
200 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 4 mH @ 1 kHz | 6A | 40mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-06-900CMC 9MH 6A 2LN TH |
187 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 9 mH @ 1 kHz | 6A | 60mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SCF19XV-120-1R2A007JVCMC 600UH 12A 2LN TH AEC-Q200 |
178 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 600 µH @ 100 kHz | 12A | 3.99mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

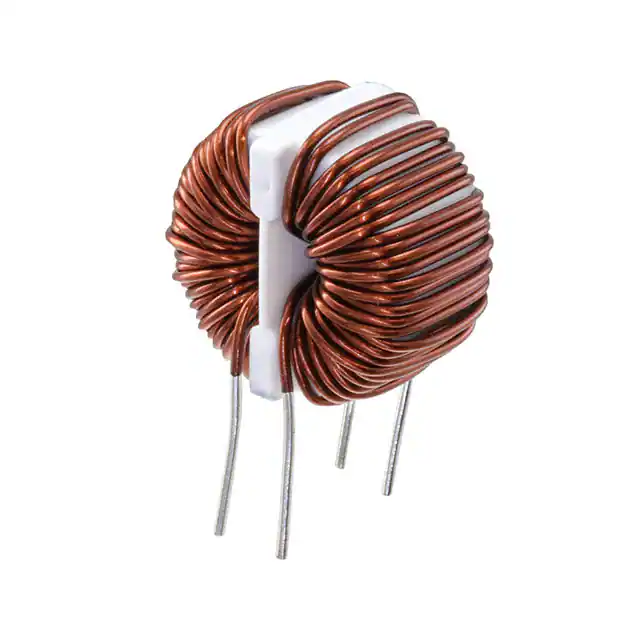

SC-07-650CMC 6.5MH 7A 2LN TH |
148 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 6.5 mH @ 1 kHz | 7A | 40mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-05-50JCMC 5MH 4A 2LN TH |
188 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 100 kHz | 4A | 80mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

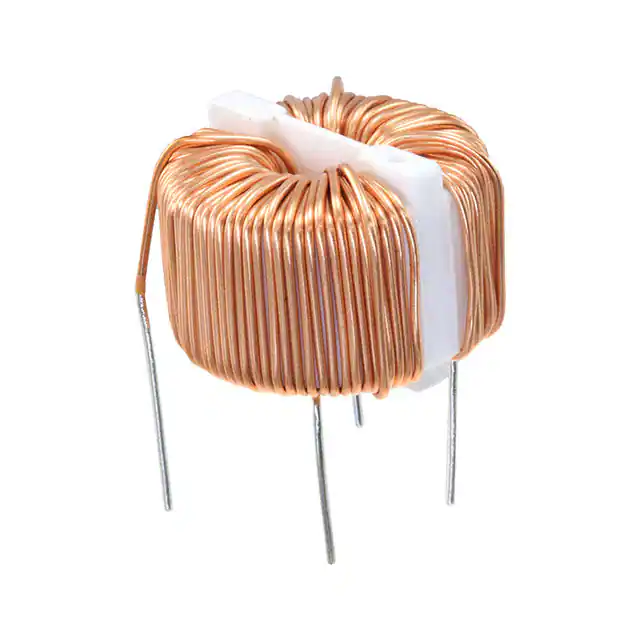

SC-05-803CMC 8MH 4A 2LN TH |
151 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 8 mH @ 100 kHz | 4A | 90mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
SCF19-040-0R8A1100JCMC 11MH 4A 2LN TH |
246 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 11 mH @ 50 kHz | 4A | 70mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-08-D060CMC 60UH 8A 2LN TH |
150 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 60 µH @ 100 kHz | 8A | 30mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SCR25-070-1R1A070JCMC 7MH 7A 2LN TH |
131 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 7 mH @ 10 kHz | 7A | 34mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

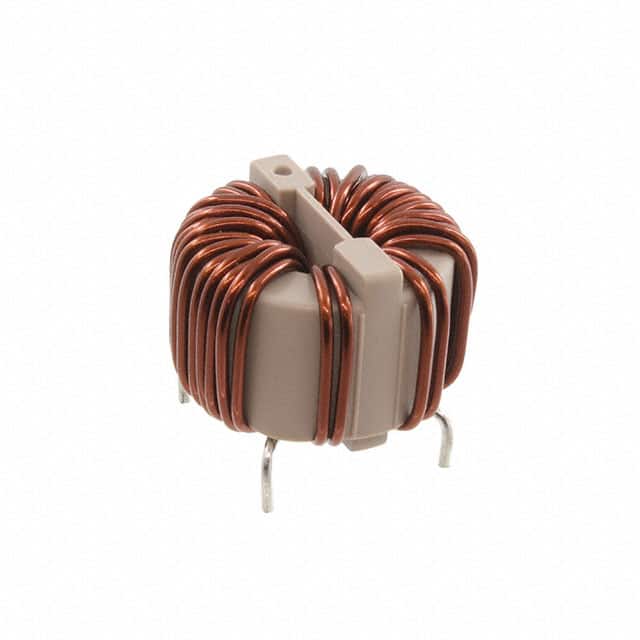

SC-10-E200HCMC 2MH 10A 2LN TH |
146 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 10A | 20mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
